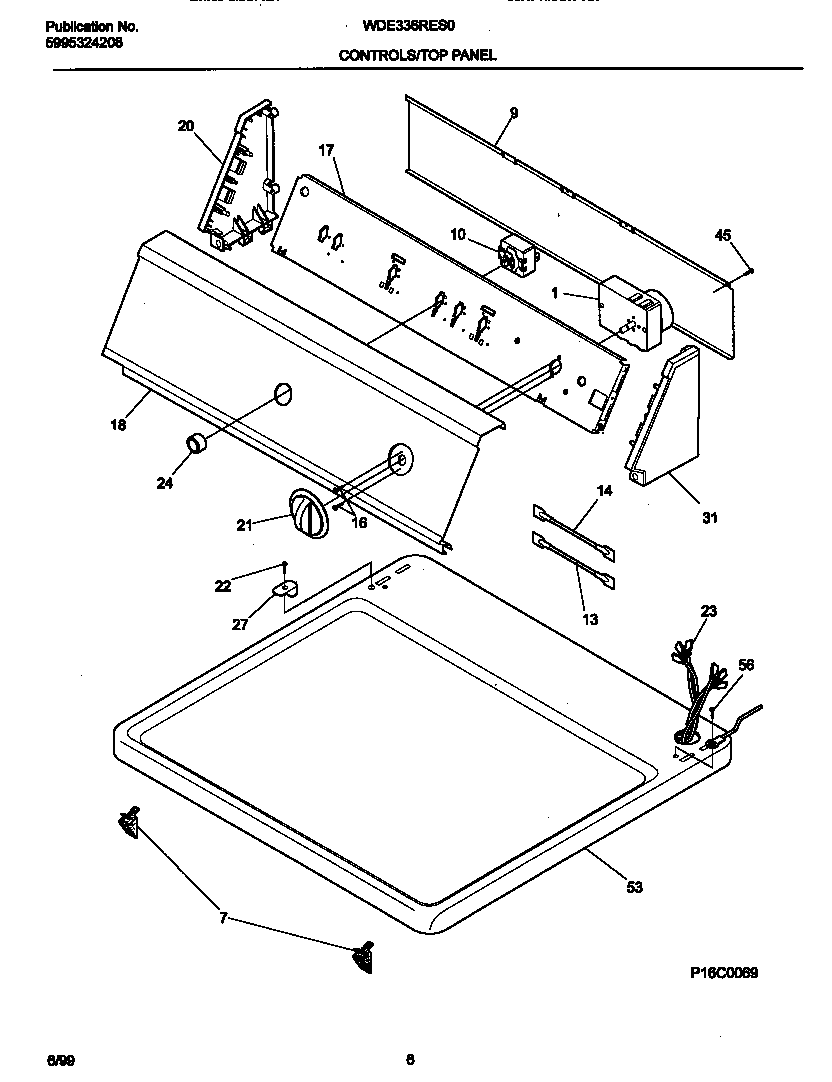

WDE336RES0 04 – P16C0069 CONTROL PANEL

Products

Position	Product
*72162	WCI 131827700
1	131062300 Frigidaire Timer
7	3205821 Frigidaire Clip
9	COVER-BACK
10	131469000 Frigidaire Switch-Push/Start P1
13	RESISTOR, 3.0K
14	RESISTOR-POWER, 4.4K
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131728900
18	WCI 131509300
20	WCI 5303291343
21	WCI 131118903
22	WCI 131266310
23	WCI 131515400
24	WCI 131111501
27	CLIP-CONSOLE MTG
31	WCI 5303291351
45	131205100 Frigidaire Screw
53	WCI 131601318
56	131243800 Frigidaire Screw
