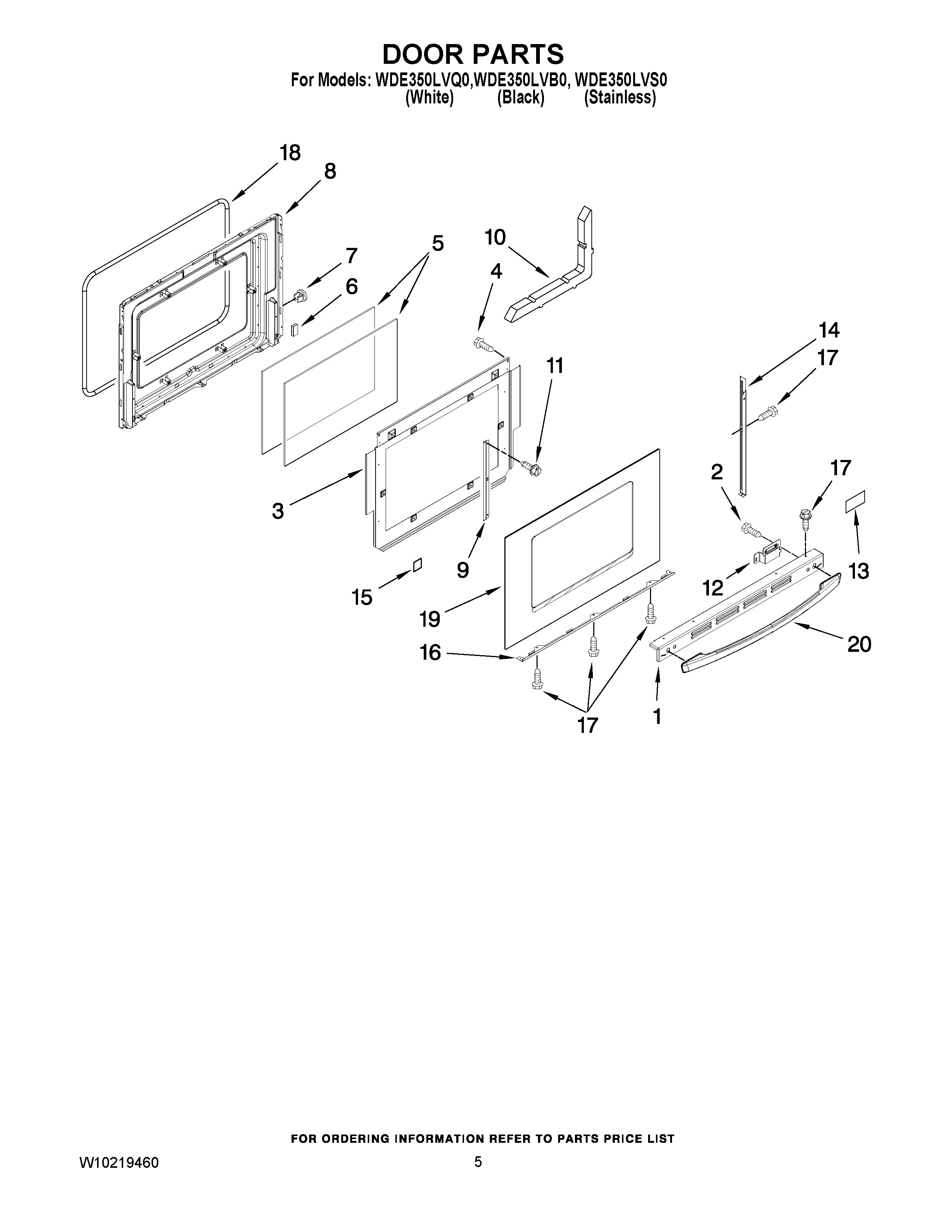

WDE350LVB0 04 – DOOR PARTS

WDE350LVB0 04 – DOOR PARTS

Written by

in

WDE350LVB0 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
1	Trim, Door Top
2	W11396735 Whirlpool Screw
3	Baffel, Retainer
4	Screw
5	GLASS, INNER
6	Spacer, Rubber
7	NUT, SNAP
8	Lining, Door
9	Bracket, Glass
10	Insulation, Door
11	SCREW
12	Bracket, Handle (Left)
12	Bracket, Handle (Right)
13	BADGE
14	TRIM, DOOR SIDE (BLACK, LEFT)
14	Trim, Door Side (Right)
14	Trim, Door Side (Left)
14	TRIM, DOOR SIDE (BLACK, RIGHT)
15	Spacer, Rubber
16	Trim, Door Bottom
16	Trim, Door Bottom
17	SCREW (BLACK)
17	SCREW (WHITE)
18	GASKT-DOOR OVEN
19	PANEL, OUTER DOOR
19	PANEL, OUTER DOOR (BLACK)
20	WPW10118430 Whirlpool Door Handle
20	W10118431 Whirlpool Door Handle
20	WPW10144883 Whirlpool Door Handle
