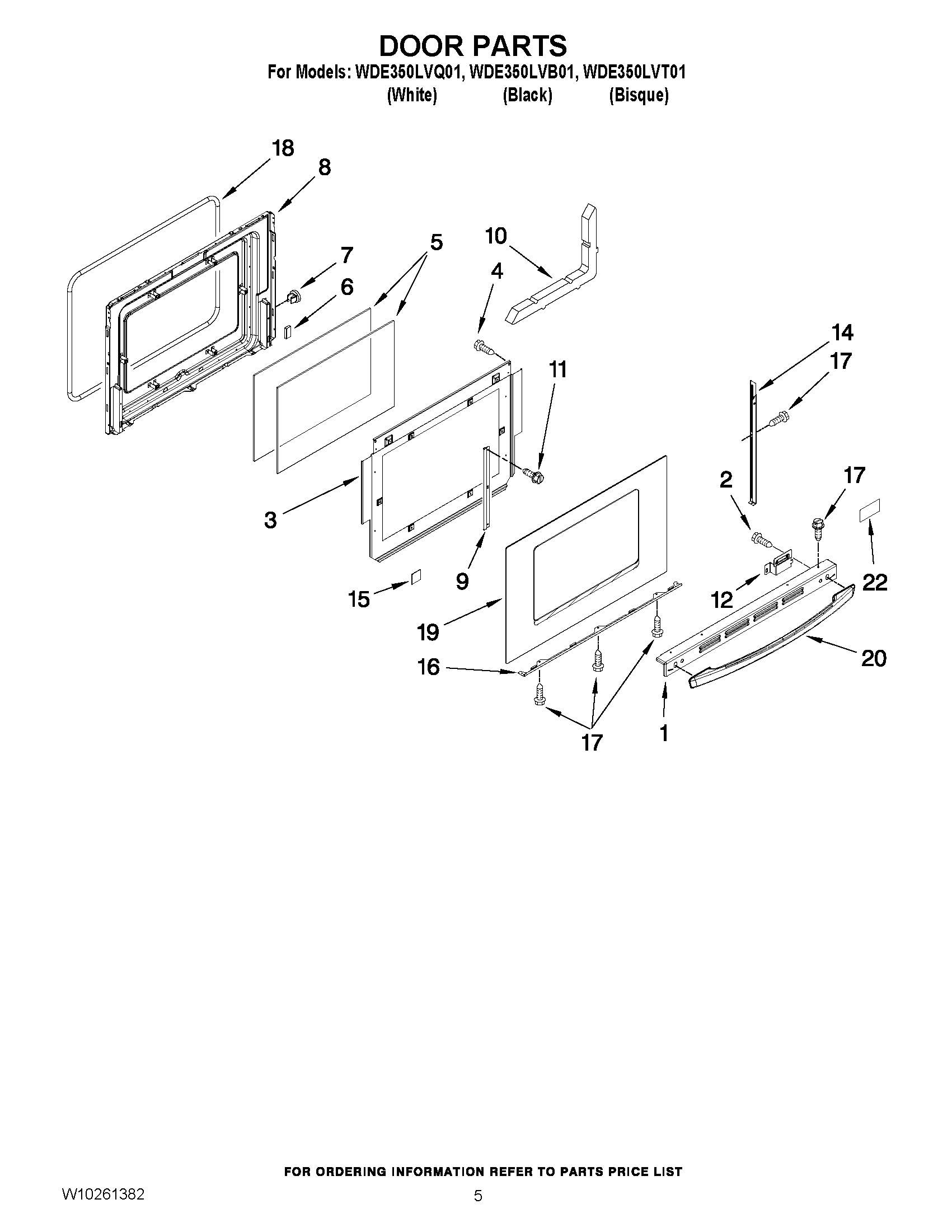

WDE350LVB01 04 – DOOR PARTS

WDE350LVB01 04 – DOOR PARTS

Written by

in

WDE350LVB01 04 – DOOR PARTS

Products

PositionProduct
1Trim, Door Top (Biscuit)
1Trim, Door Top
1Trim, Door Top
2SCREW, HANDLE
3Baffel, Retainer
4Screw
5GLASS, INNER
6Spacer, Rubber
7NUT, SNAP
8Lining, Door
9Bracket, Glass
10Insulation, Door
11SCREW
12Bracket, Handle (Left)
12Bracket, Handle (Right)
14TRIM, DOOR SIDE (BLACK, RIGHT)
14TRIM, DOOR SIDE (BLACK, LEFT)
14Trim, Door Side (Right)
14Trim, Door Side (Left)
14Trim, Door Side (Biscuit, Right)
14Trim, Door Side (Biscuit, Left)
15Spacer, Rubber
16Trim, Door Bottom
16Trim, Door Bottom
16Trim, Door Bottom (Biscuit)
17SCREW (WHITE)
18GASKT-DOOR OVEN
19PANEL, OUTER DOOR (BISCUIT (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS))
19PANEL, OUTER DOOR (BLACK)
19PANEL, OUTER DOOR
20W10118431 Whirlpool Door Handle
20WPW10118430 Whirlpool Door Handle
20WPL W10118432
22BADGE
