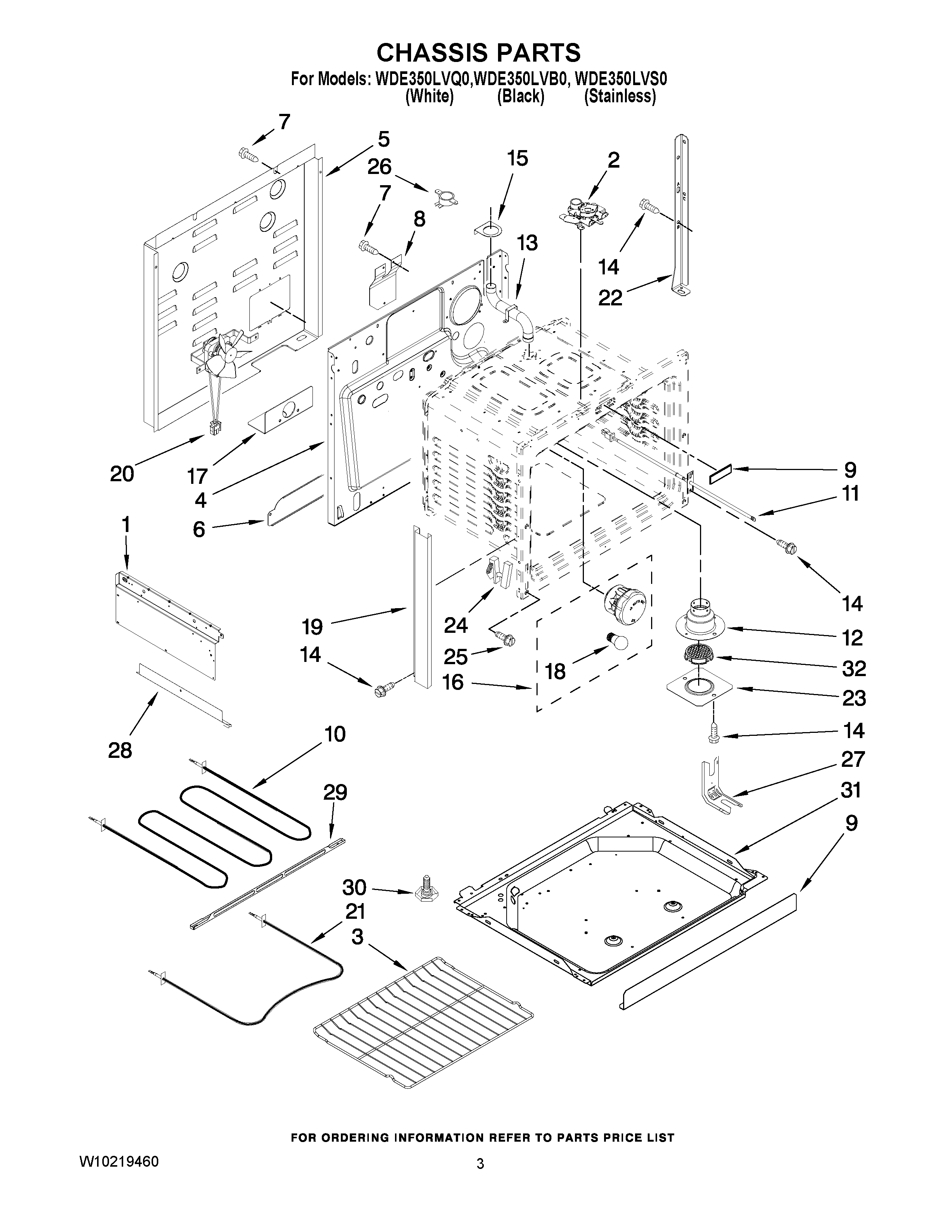

WDE350LVQ0 03 – CHASSIS PARTSadmin2025-04-26T13:00:59+00:00WDE350LVQ0 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | Insulation, Oven Bottom |
| NI | Insulation, Wrap |
| NI | Insulation, Back |
| 1 | Panel, Shield (Right) |
| 1 | Panel, Shield (Left) |
| 2 | Latch Assembly |
| 3 | Rack, Oven (2) |
| 4 | BACK, MAIN |
| 5 | Cover, Main Wire |
| 6 | Extension, Back |
| 7 | SCREW (BLACK) |
| 8 | Insulator, Cord |
| 9 | Shield, Vent (Black) |
| 9 | SHIELD, VENT WHITE |
| 10 | Element, Broil |
| 11 | Sensor, Oven |
| 13 | Tube, Vent Upper |
| 14 | SCREW |
| 15 | Holder, Vent Tube |
| 16 | Light Assembly |
| 17 | Bracket, Pwr Supply |
| 18 | BULB, LIGHT |
| 19 | TRIM, SIDE (WHITE, RIGHT) |
| 19 | TRIM, SIDE (BLACK, RIGHT) |
| 19 | TRIM, SIDE (WHITE, LEFT) |
| 19 | TRIM, SIDE (BLACK, LEFT) |
| 20 | Fan, Cooling |
| 21 | Element, Bake |
| 22 | SUPPORT, OVEN (REAR) |
| 23 | PLATE, SMOKE ELM. |
| 24 | HINGE |
| 25 | SCREW |
| 26 | LIMIT, OVEN |
| 27 | BRACKET, ANTI TIP |
| 28 | Extention, Shield |
| 29 | Support, Element |
| 30 | FOOT, LEVELER |
| 31 | Retainer, Bottom |
| 32 | SMOKE ELIMINATOR |
