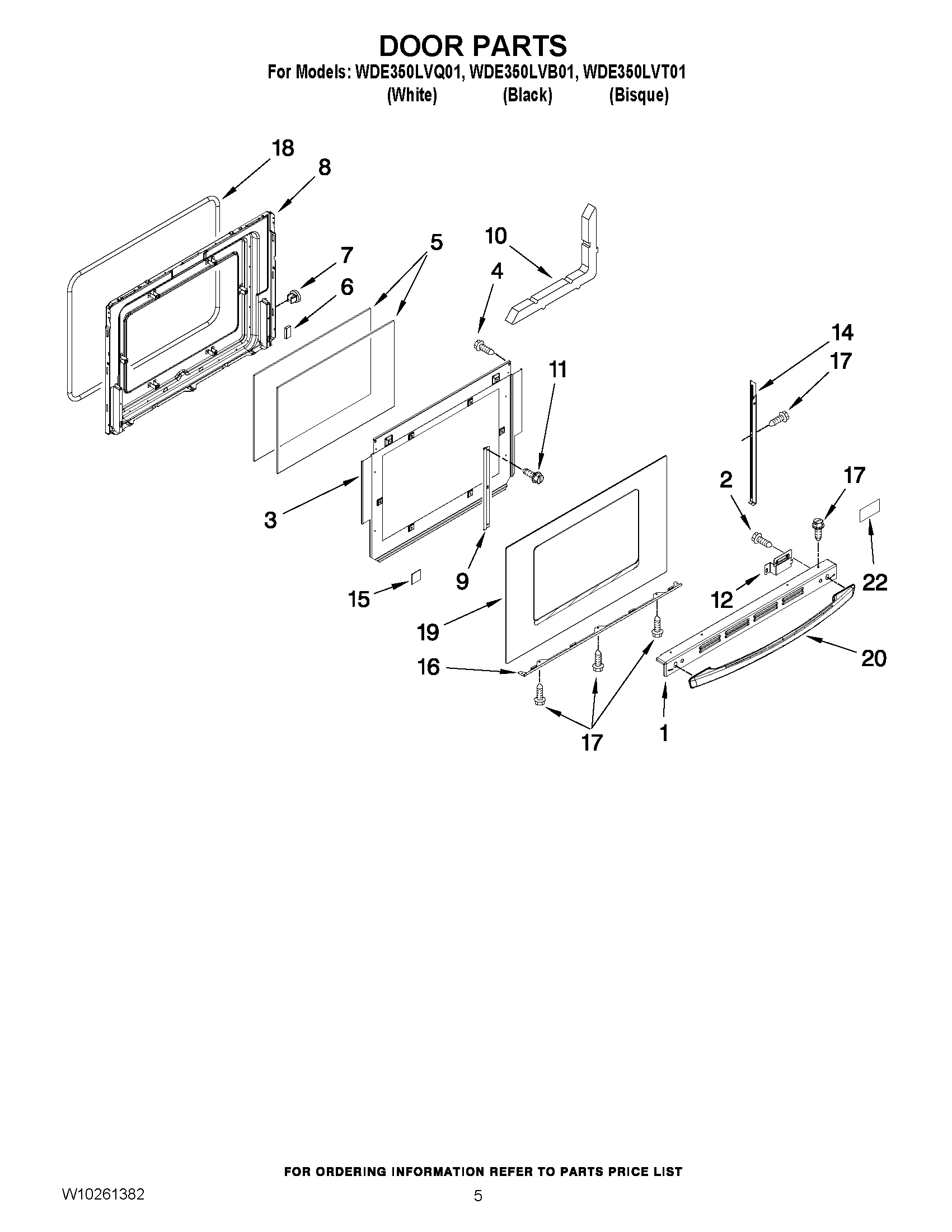

WDE350LVQ01 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top (Biscuit)
1	Trim, Door Top
1	Trim, Door Top
2	SCREW, HANDLE
3	Baffel, Retainer
4	Screw
5	GLASS, INNER
6	Spacer, Rubber
7	NUT, SNAP
8	Lining, Door
9	Bracket, Glass
10	Insulation, Door
11	SCREW
12	Bracket, Handle (Left)
12	Bracket, Handle (Right)
14	TRIM, DOOR SIDE (BLACK, RIGHT)
14	TRIM, DOOR SIDE (BLACK, LEFT)
14	Trim, Door Side (Right)
14	Trim, Door Side (Left)
14	Trim, Door Side (Biscuit, Right)
14	Trim, Door Side (Biscuit, Left)
15	Spacer, Rubber
16	Trim, Door Bottom
16	Trim, Door Bottom
16	Trim, Door Bottom (Biscuit)
17	SCREW (WHITE)
18	GASKT-DOOR OVEN
19	PANEL, OUTER DOOR (BISCUIT (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS))
19	PANEL, OUTER DOOR (BLACK)
19	PANEL, OUTER DOOR
20	W10118431 Whirlpool Door Handle
20	WPW10118430 Whirlpool Door Handle
20	WPL W10118432
22	BADGE
