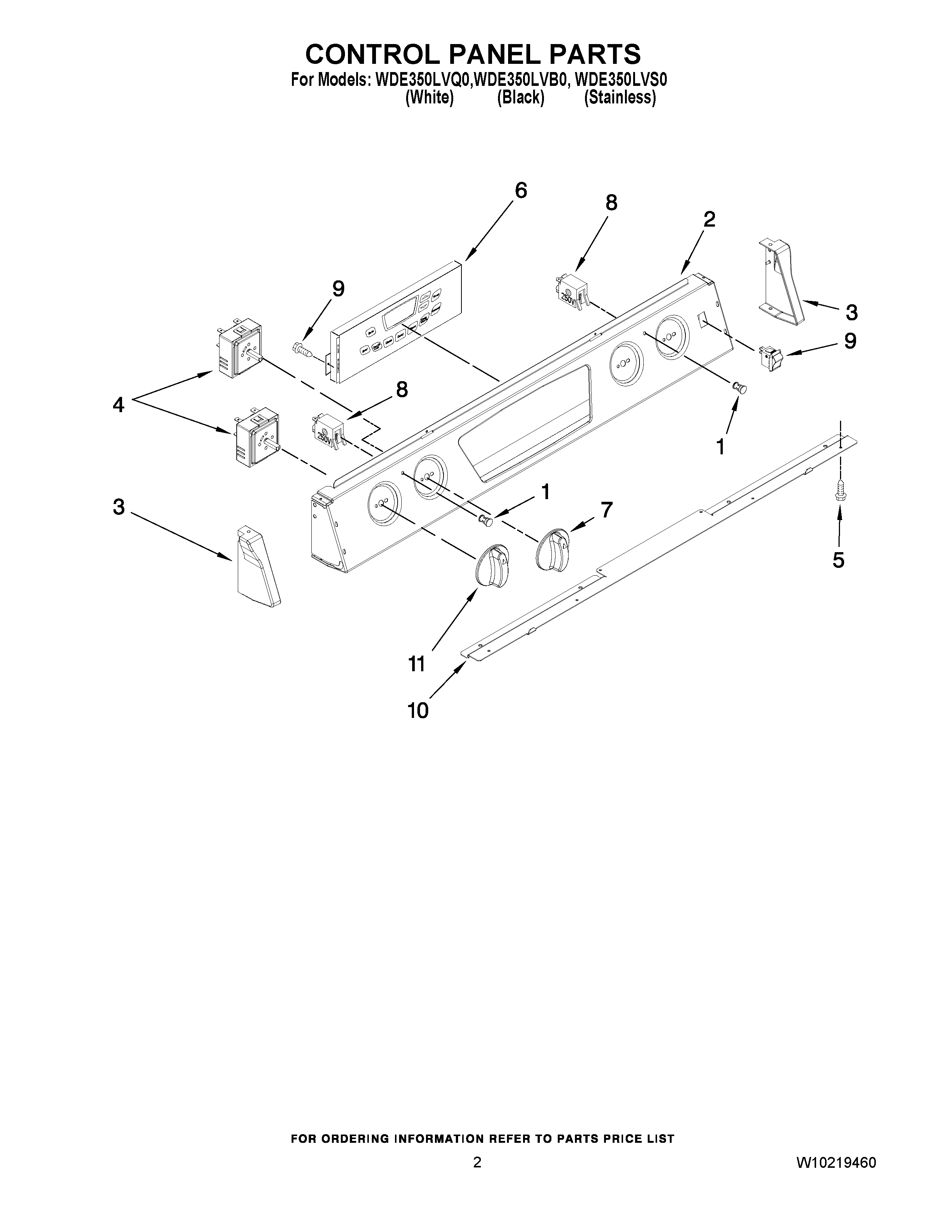

WDE350LVS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1LENS
2Panel, Control (Black)
2Panel, Control (Stainless)
2Panel, Control (White)
3END CAP (LEFT)
3END CAP (WHITE (RIGHT HAND))
3END CAP (WHITE (LEFT HAND))
3END CAP (RIGHT)
4SWITCH, INFINITE (LEFT FRONT & RIGHT FRONT)
4SWITCH, INFINITE (RIGHT REAR)
5SCREW
6CONTROL W/OVERLAY (BLACK)
6CONTROL W/OVERLAY (WHITE)
7KNOB (BLACK)
7KNOB (WHITE)
8Light, Indicator
9Switch, Rocker (White)
9Switch, Rocker
10Support, Control Panel
11KNOB, DUAL (BLACK)
11KNOB, DUAL (WHITE)
