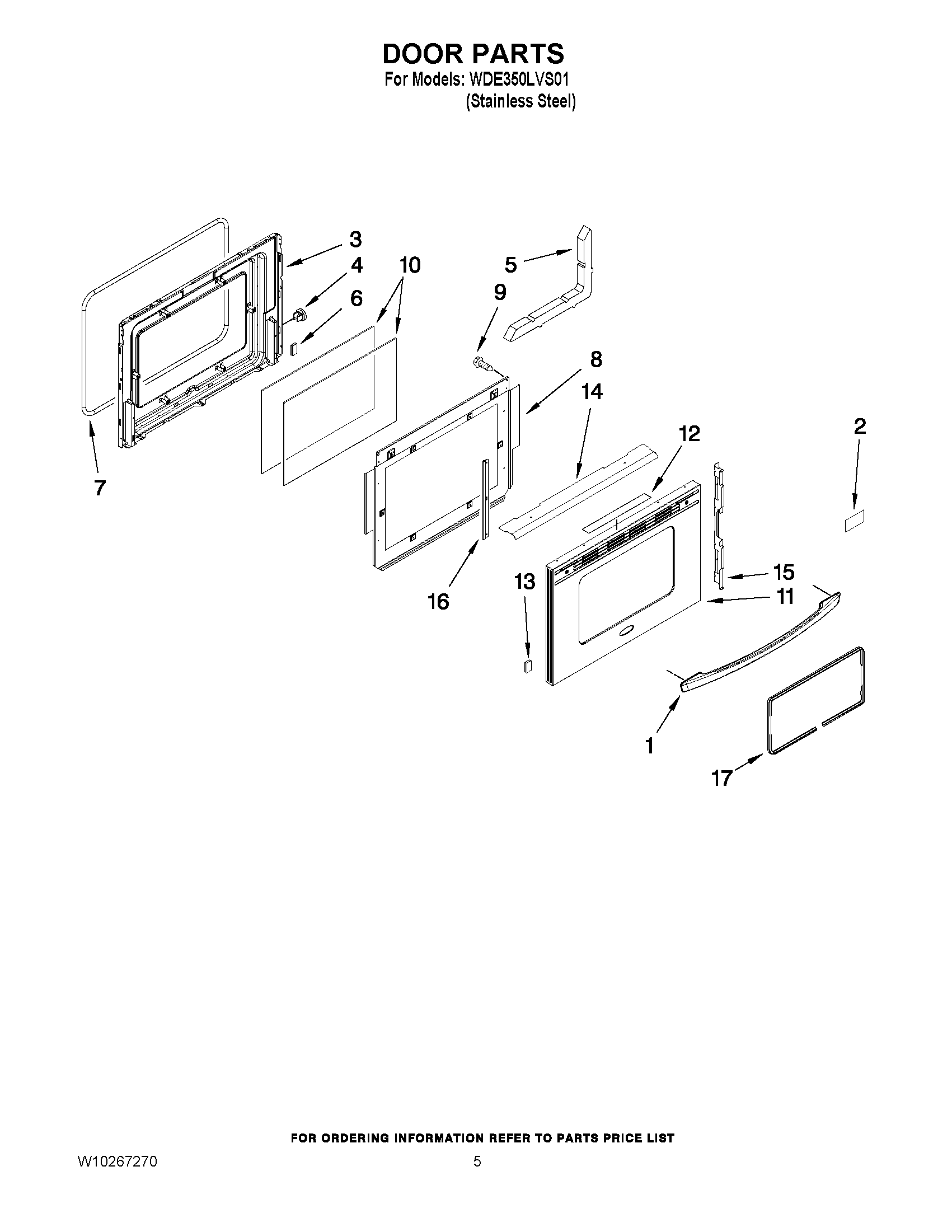

WDE350LVS01 04 – DOOR PARTS

Products

PositionProduct
1HANDLE, DOOR
2Name Plate
3Lining, Door
4NUT, SNAP
5Insulation, Door
6Spacer, Rubber
7GASKET
8Baffle, Retainer
9Screw
10GLASS, DOOR (S.STEEL MDL ONLY)
10GLASS, INNER
11PANEL, OVEN DR
12Insulation, Foil
13Clip, Glass (2)
14Shield, Door
15Retainer, Glass
16Bracket, Glass
17Gasket, Window
