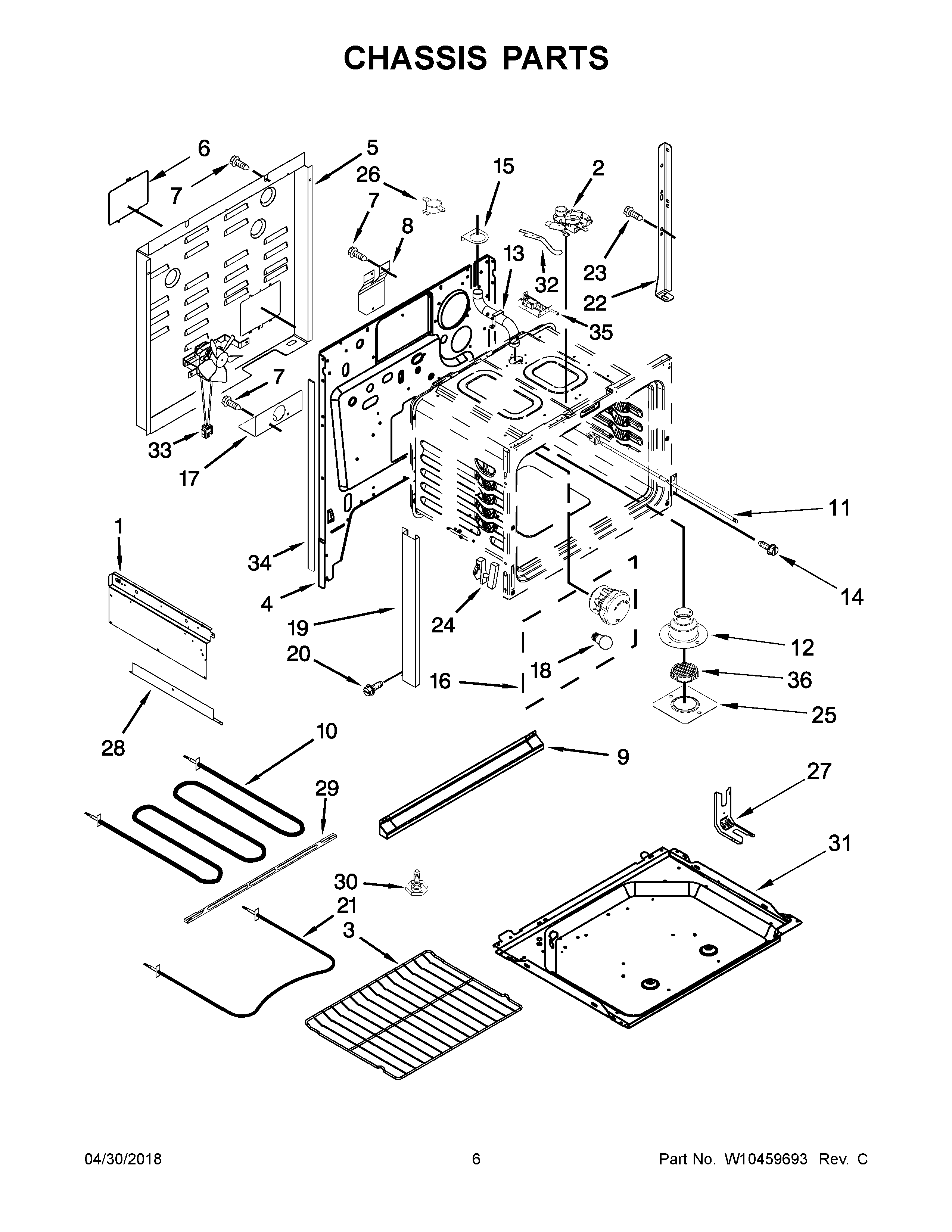

WDE350LVS02 04 – CHASSIS PARTS

Written by

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	Insulation, Wrap
NI	Insulation, Back
NI	Insulation, Oven Bottom
1	Panel, Shield (Left)
1A	Panel, Shield (Right)
2	Latch Assembly
3	WPW10282492 Whirlpool Oven Rack
4	Main Back
5	Cover, Main Wire
6	COVER, TERMINAL
8	Insulator, Cord
9A	SHIELD, VENT WHITE
9	Shield, Vent (Black)
10	Element, Broil
11	Sensor, Oven
12	Tube, Vent Lower
13	Tube, Vent Upper
15	Holder, Vent Tube
16	Light Assembly
17	W10190166 Whirlpool Service Bracket
18	BULB, LIGHT
19C	TRIM, SIDE (WHITE, RIGHT)
19A	TRIM, SIDE (BLACK, RIGHT)
19	TRIM, SIDE (BLACK, LEFT)
19B	TRIM, SIDE (WHITE, LEFT)
21	WPW10310274 Whirlpool Bake Element
22	SUPPORT, OVEN (REAR)
23	SCREW
24	HINGE
25	PLATE, SMOKE ELM.
26	LIMIT, OVEN
27	BRACKET, ANTI TIP
28	Extention, Shield
29	Support, Element
30	FOOT, LEVELER
31	Retainer, Bottom
32	LEVER, LATCH
33	WPW10586440 Whirlpool Blower Fan
34	GUARD, EDGE
35	SWTCH-LITE
36	SMOKE ELIMINATOR
