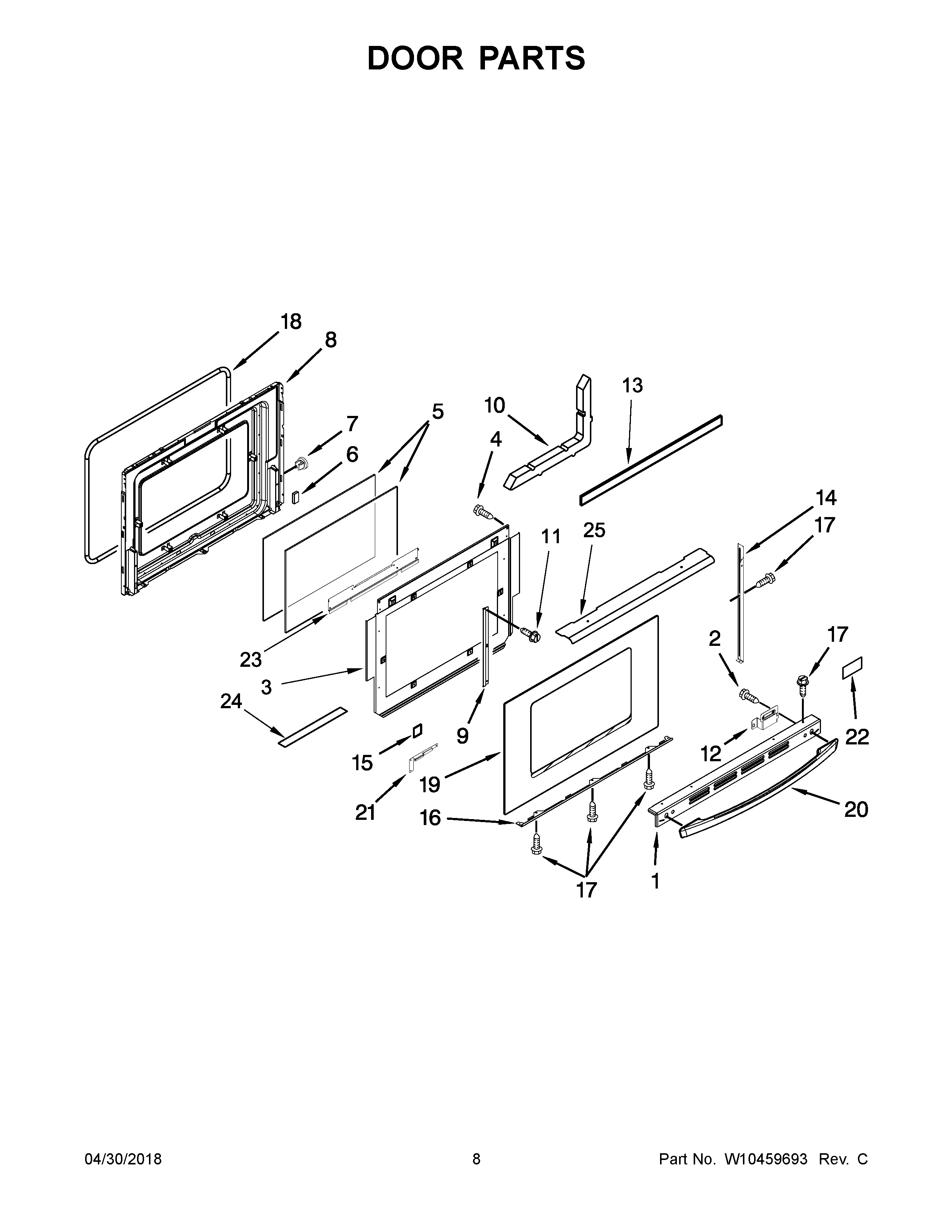

WDE350LVS02 05 – DOOR PARTSadmin2025-04-26T12:59:32+00:00WDE350LVS02 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1A | Trim, Door Top |
| 1 | Trim, Door Top |
| 2 | SCREW, HANDLE |
| 3 | Baffel, Retainer |
| 4 | Screw |
| 5A | GLASS. OUTER DOOR (S.STEEL MDL ONLY) |
| 5 | GLASS, INNER |
| 6 | Spacer, Rubber |
| 7 | NUT, SNAP |
| 8 | Lining, Door |
| 9 | Bracket, Glass |
| 10 | Insulation, Door |
| 11 | SCREW |
| 12A | Bracket, Handle (Right) |
| 12 | Bracket, Handle (Left) |
| 13 | Insulation, Door |
| 14 | Trim, Door Side (Left) |
| 14A | Trim, Door Side (Right) |
| 14C | TRIM, DOOR SIDE (BLACK, RIGHT) |
| 14B | TRIM, DOOR SIDE (BLACK, LEFT) |
| 15 | Spacer, Rubber |
| 16 | Trim, Door Bottom |
| 17 | SCREW (BLACK) |
| 18 | GASKT-DOOR OVEN |
| 19A | PANEL, OUTER DOOR |
| 19B | ASSEMBLY, OUTER DOOR (STAINLESS) |
| 19 | PANEL, OUTER DOOR (BLACK) |
| 20 | W10118431 Whirlpool Door Handle |
| 20B | WPW10144883 Whirlpool Door Handle |
| 20A | WPW10118430 Whirlpool Door Handle |
| 21A | RETAINER, GLASS (RIGHT) |
| 21 | RETAINER, GLASS (LEFT) |
| 22 | W11178521 Whirlpool Dishwasher Nameplate |
| 23 | RETAINER, GLASS (SIDE) |
| 24 | Insulation, Foil |
| 25 | Shield, Door |
