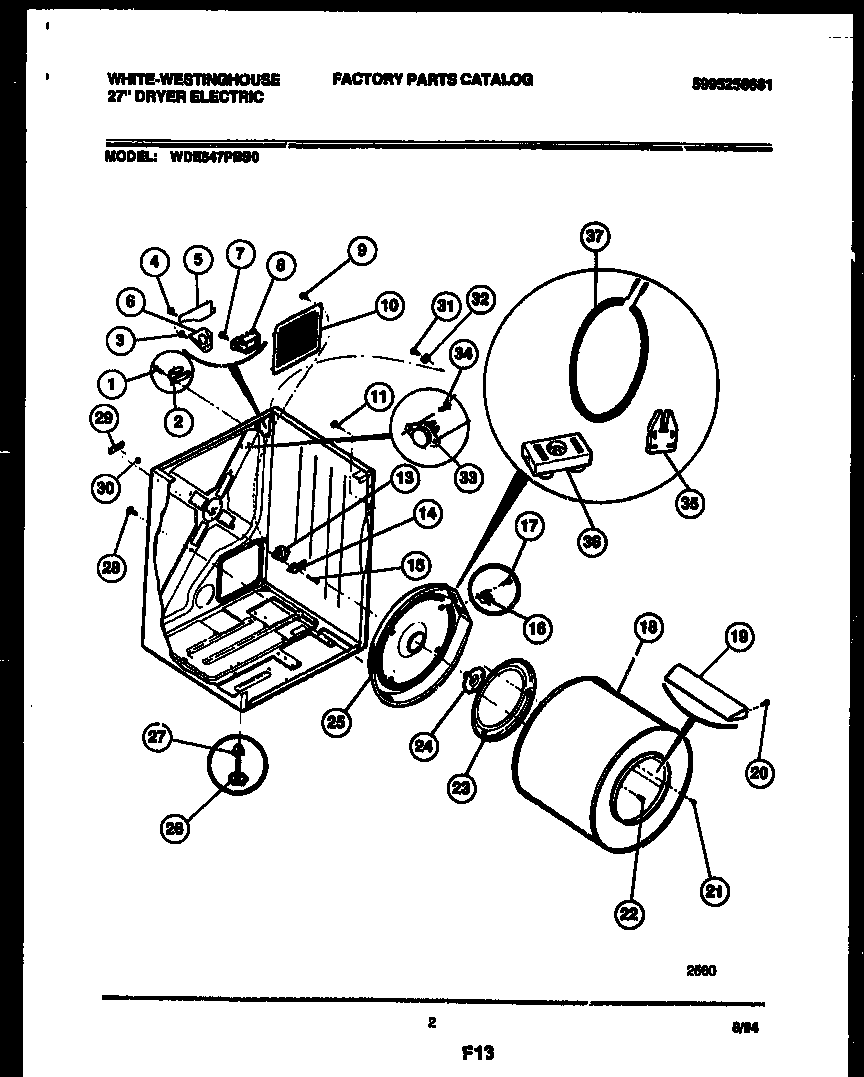

WDE547PBS0 02 – CABINET AND COMPONENT PARTS

Products

Position	Product
*10096	WCI 5303281153]
*10096	CLIP-CAB. FRONT BTM
2	BRACKET-HINGE
5	WCI 5303211428
6	WCI 3281040
7	131205300 Frigidaire Screw
8	134037400 Frigidaire Block
9	5303015671 Frigidaire Bracket Termination Screw
10	PLATE-COVER
13	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14	131724301 Frigidaire Dryer Drum Bearing Bracket
15	131205400 Frigidaire Screw
16	WCI 5303281113
17	131243700 Frigidaire Screw
18	WCI 3201199
19	137552900 Frigidaire Vane
20	WCI 131205200
21	WCI 5303207393
22	SCREW (3) (PART OF REAR BEARING KIT.)
23	3204254 Frigidaire Baffle Assembly
24	5303931781 Frigidaire Shaft
25	HEATER ASSY W/HSNG
26	BOLT-FOOT (4)
27	WCI 3201202
28	SCREW
29	5303281020 Frigidaire Ball Clip
30	5303281019 Frigidaire Ball Assembly
31	134154100 Frigidaire Screw 10-32 x 0.375 Co
32	131168200 Frigidaire Dryer Screw
33	134120900 Frigidaire Dryer Limiter Thermal
34	WCI 08010804
35	131472100 Frigidaire Dryer Insulator Heater Coil
36	WCI 3203786
37	LARGE DIA COIL 5/16" TERM
38	WCI 5303301402
