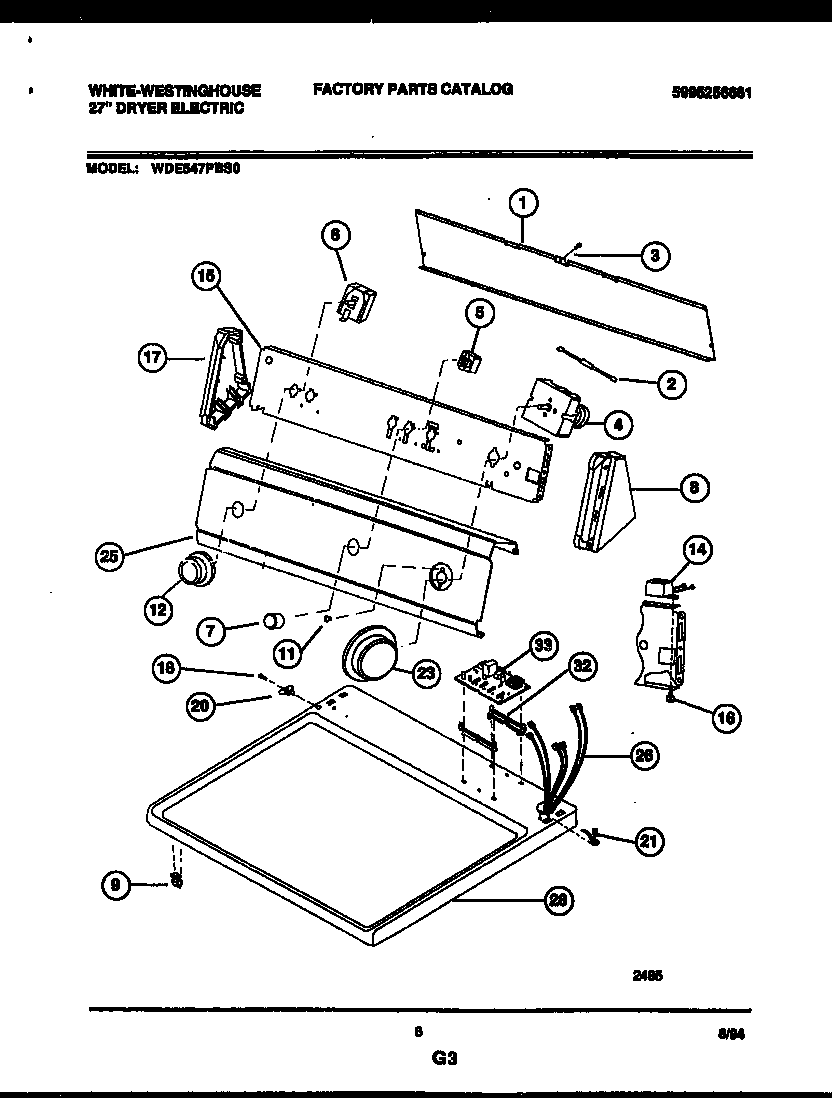

WDE547PBS0 04 – CONSOLE AND CONTROL PARTS

WDE547PBS0 04 – CONSOLE AND CONTROL PARTS

Written by

in

WDE547PBS0 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1COVER-BACK
2RESISTOR-POWER, 4.4K
3131205100 Frigidaire Screw
4131719100 Frigidaire Timer Assembly
5WCI 131048000
6WCI 131048100
7WCI 131111501
8WCI 5303291351
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
12WCI 131118603
14WCI 5303210285
15WCI 131297306
165303015671 Frigidaire Bracket Termination Screw
17WCI 5303291343
18WCI 5303297854
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23WCI 131118903
25WCI 131352100
26WCI 131236200
28WCI 131130402
32WCI 131089800
33WCI 131072000
