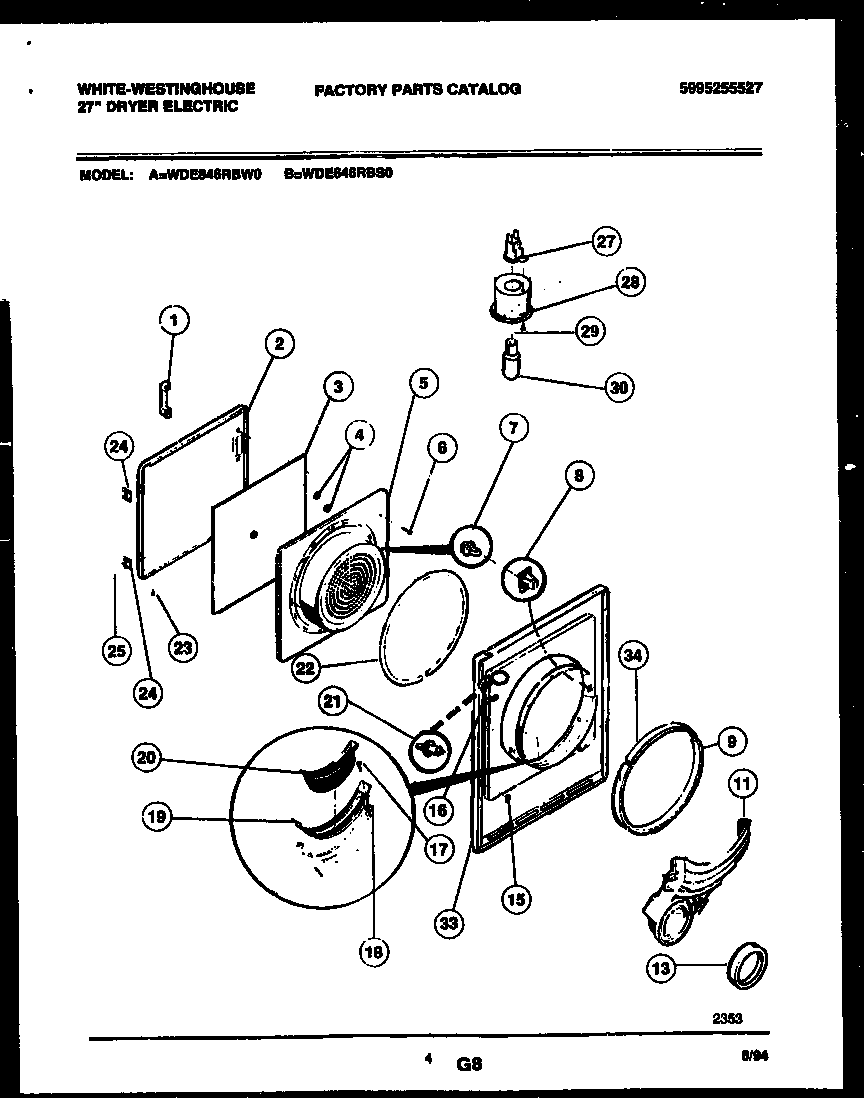

WDE646RBSW0 03 – DOOR PARTS

Products

Position	Product
1	HANDLE-DOOR-WHITE
2	PANEL-OUTER DOOR, WHITE
3	SHIELD, HEAT
4	WCI 3201205
5	PANEL – ID WHITE
6	WCI 5303281051
7	5303207102 Frigidaire Door Strike
8	131658800 Frigidaire Dryer Door Catch Repair Kit
9	WCI 5303281049
11	DUCT-AIR
13	134417000 Frigidaire Seal
15	CLIP GUIDE (4)
16	WCI 131063700
17	131420300 Frigidaire Screw
18	CLIP
20	TRAP-LINT
21	DOOR-SWITCH
22	GASKET, DOOR
23	SCREW (8)
24	HINGE, DOOR (2)
25	134156200 Frigidaire Screw
27	WCI 5308015210
28	WCI 5308015259
29	SCREW
30	WCI 5308027430
33	WCI 131003400
34A	5303321319 Frigidaire Refrigerator White Touch Up Paint
34	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
