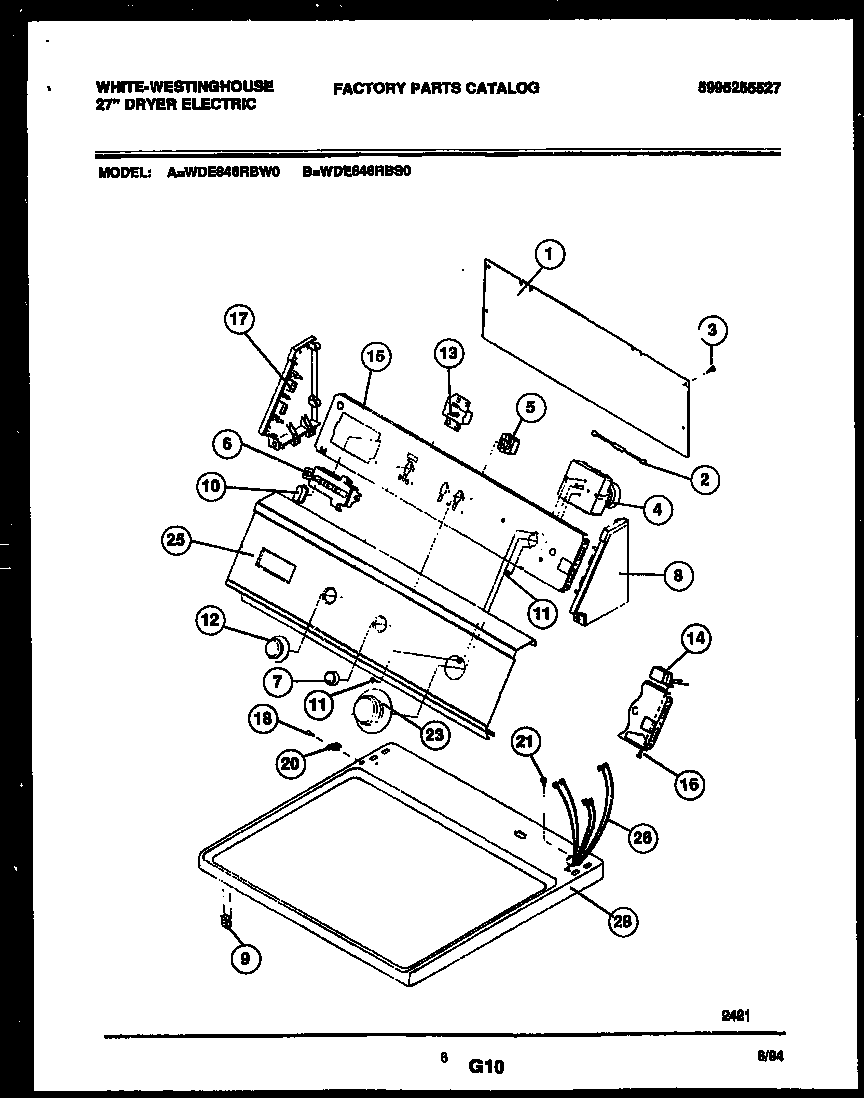

WDE846RBD0 04 – CONSOLE AND CONTROL PARTS

WDE846RBD0 04 – CONSOLE AND CONTROL PARTS

Written by

in

WDE846RBD0 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1COVER-BACK
2RESISTOR-POWER, 4.4K
3131205100 Frigidaire Screw
4WCI 131062600
5WCI 131048000
6WCI 131048200
7KNOB-START SWITCH, BLACK
8WCI 5303291352
93205821 Frigidaire Clip
10PUSHBUTTON (4)
11218359202 Frigidaire Refrigerator Screw
12WCI 131118602
13WCI 131048300
15WCI 131297302
17WCI 5303291344
18WCI 5303289526
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23WCI 131118902
25WCI 131260700
26WCI 131235900
28WCI 131130304
