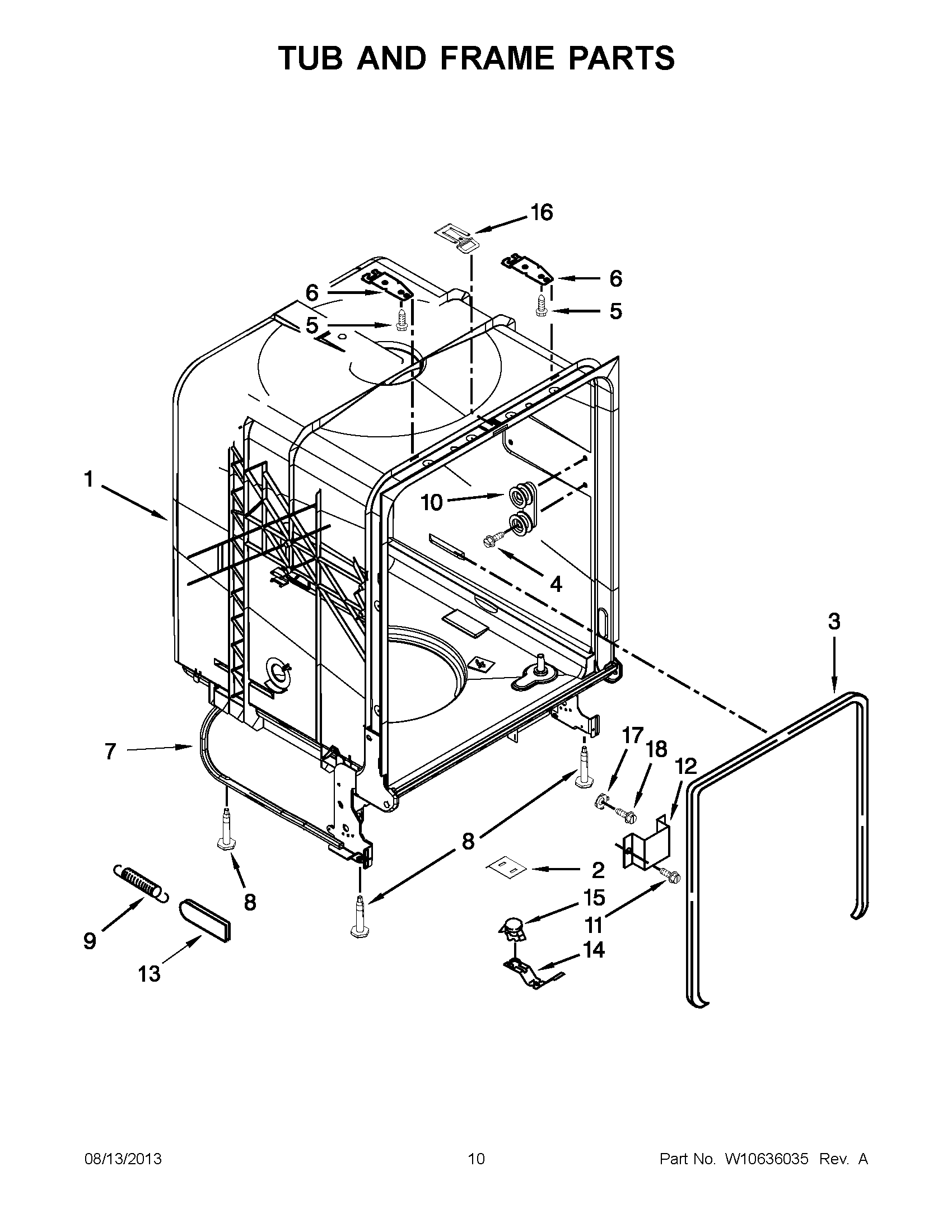

WDF110PABB3 06 – TUB AND FRAME PARTS

WDF110PABB3 06 – TUB AND FRAME PARTS

Written by

in

WDF110PABB3 06 – TUB AND FRAME PARTS

Products

PositionProduct
1W10413848 Whirlpool Dishwasher Tub
2W10321574 Whirlpool Dishwasher Shield
3GASKET
4W10817436 Whirlpool Screw
5WP308685 Whirlpool Microwave Screw
6WP8269145 Whirlpool Dishwasher Mounting Bracket
7W11680335 Whirlpool Support
88193716 Whirlpool Leveling Leg
9WPW10337934 Whirlpool Spring Assembly
10WP8270016 Whirlpool Dishwasher Tub Wheel
11WP3400892 Whirlpool Dishwasher Screw
12WP8268991 Whirlpool Dishwasher Cover Assembly
13WP8268990 Whirlpool Dishwasher Door Spring Bushing
14W10539489 Whirlpool Dishwasher Bracket-Stat
15WP661566 Whirlpool High Limit Thermostat
16WP8580309 Whirlpool Dishwasher Strike
17WP3378128 Whirlpool Dishwasher Washer
18WP3400014 Whirlpool Dishwasher Screw
