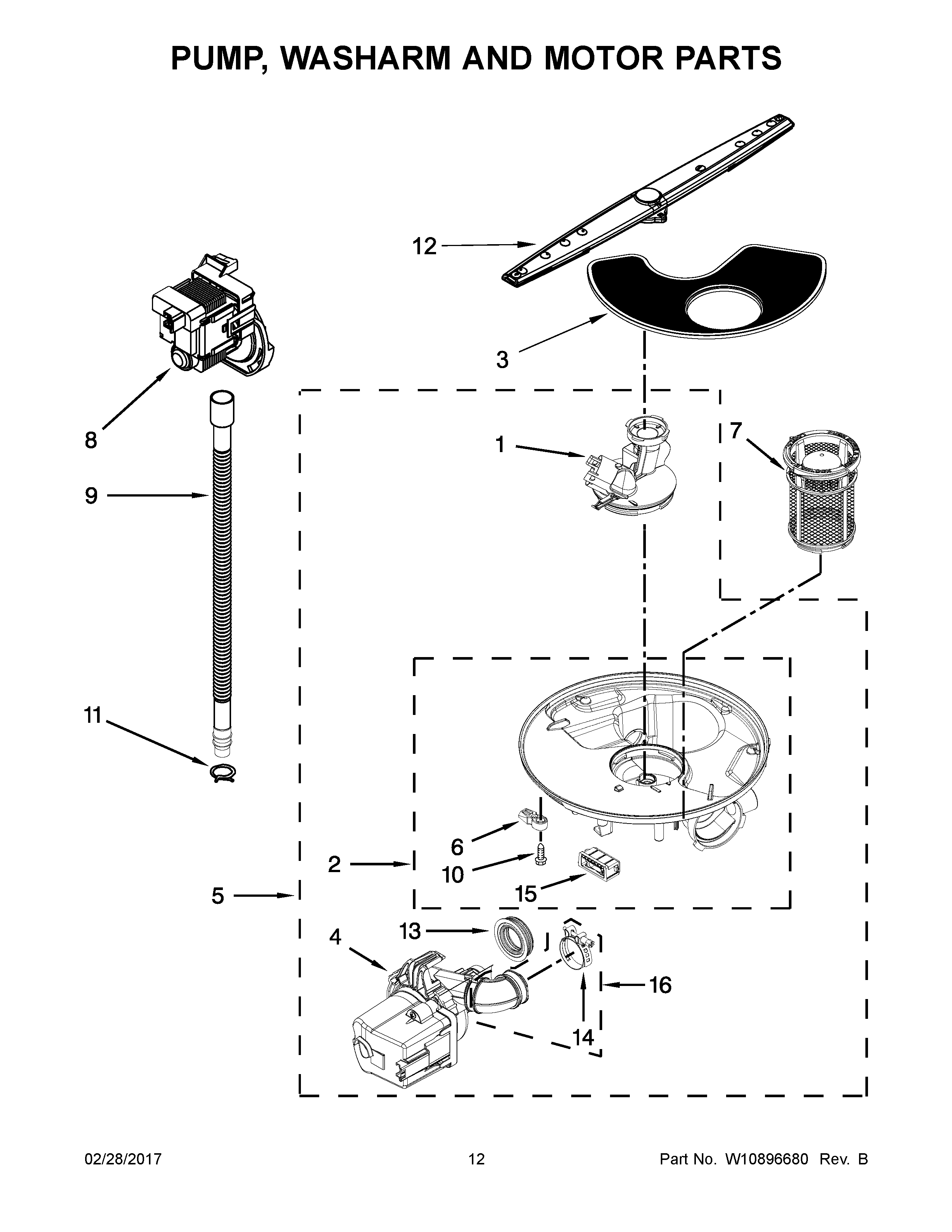

WDF110PABB5 07 – PUMP, WASHARM AND MOTOR PARTS

WDF110PABB5 07 – PUMP, WASHARM AND MOTOR PARTS

Written by

in

WDF110PABB5 07 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1WPW10455271 Whirlpool Cover
2W10482461 Whirlpool Dishwasher Sump
3WPW10463906 Whirlpool Dishwasher Screen Filter Cover
4WASH PUMP
5W10888591 Whirlpool Dishwasher Pump and Motor
6WPW10372113 Whirlpool Dishwasher Sump Tab
7W10872845 Whirlpool Dishwasher Filter Cup Trap
8W10876537 Whirlpool Dishwasher Drain Pump
98269144A Whirlpool Dishwasher Drain Hose
10WPW10348407 Whirlpool Dishwasher Screw
11WP285655 Whirlpool Hose Clamp
12ARM-SPRAY
13WPW10538166 Whirlpool Grommet Pump
14W10789434 Whirlpool Dishwasher Hose Clamp
15W11243394 Whirlpool Dishwasher Support
16W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
