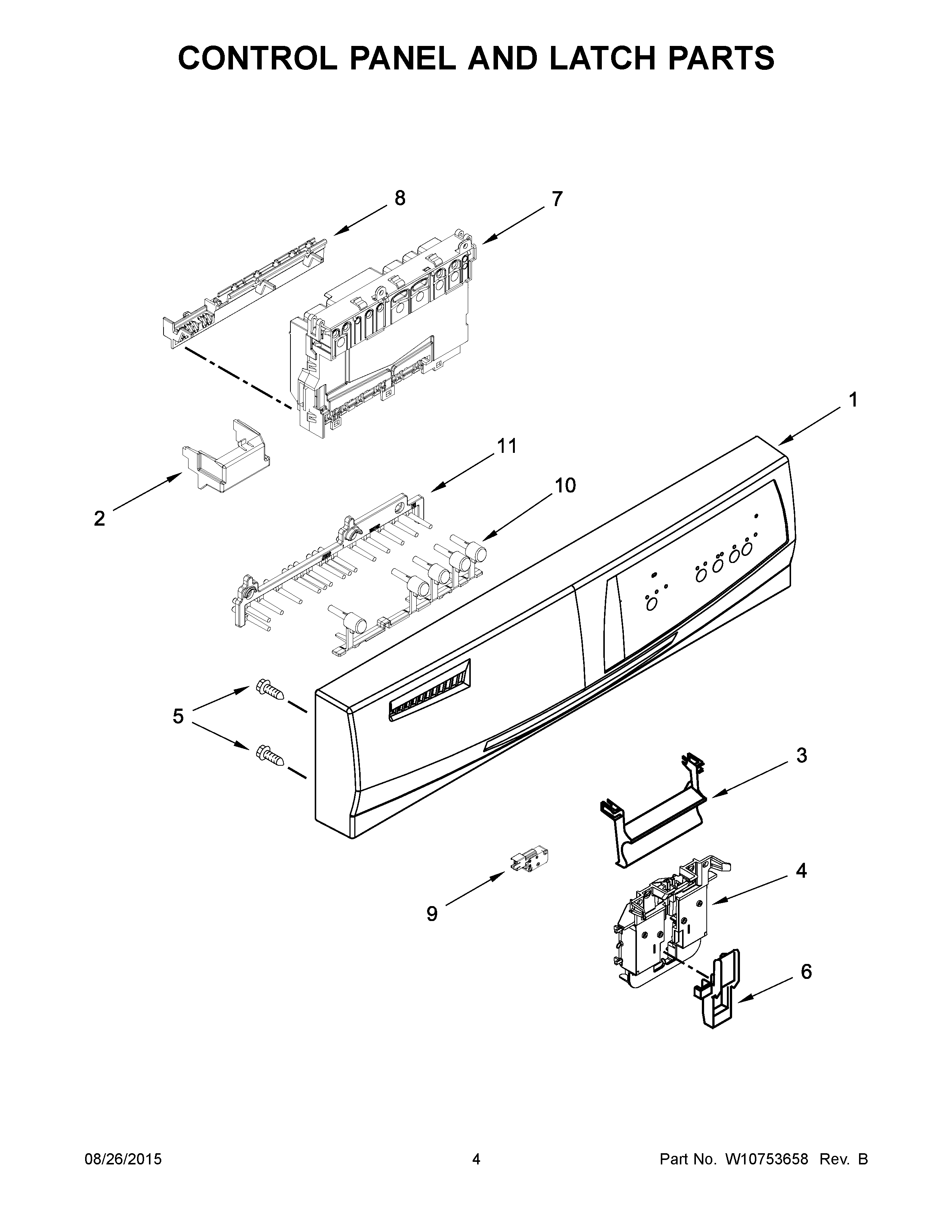

WDF110PABS4 03 – CONTROL PANEL AND LATCH PARTS

WDF110PABS4 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF110PABS4 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10531892 Whirlpool Dishwasher Console
1BW10531894 Whirlpool Console
1AW10531893 Whirlpool Dishwasher Console
2W10783730 Whirlpool Dishwasher Connector
3B8534986 Whirlpool Dishwasher Handle
3AWP8534985 Whirlpool Dishwasher Handle
3WP8534984 Whirlpool Dishwasher Handle
4BOLT-LATCH
5WPW10348413 Whirlpool Dishwasher Screw
6WP8524472 Whirlpool Dishwasher Door Latch Actuator
7W11039983-includeCORE Whirlpool W11039983 Dishwasher Electronic Control Board
8WPW10372484 Whirlpool Dishwasher Brace
9WPW10274880 Whirlpool Switch
10WPW10274840 Whirlpool Dishwasher Button
11W10854407 Whirlpool Dishwasher Guide
