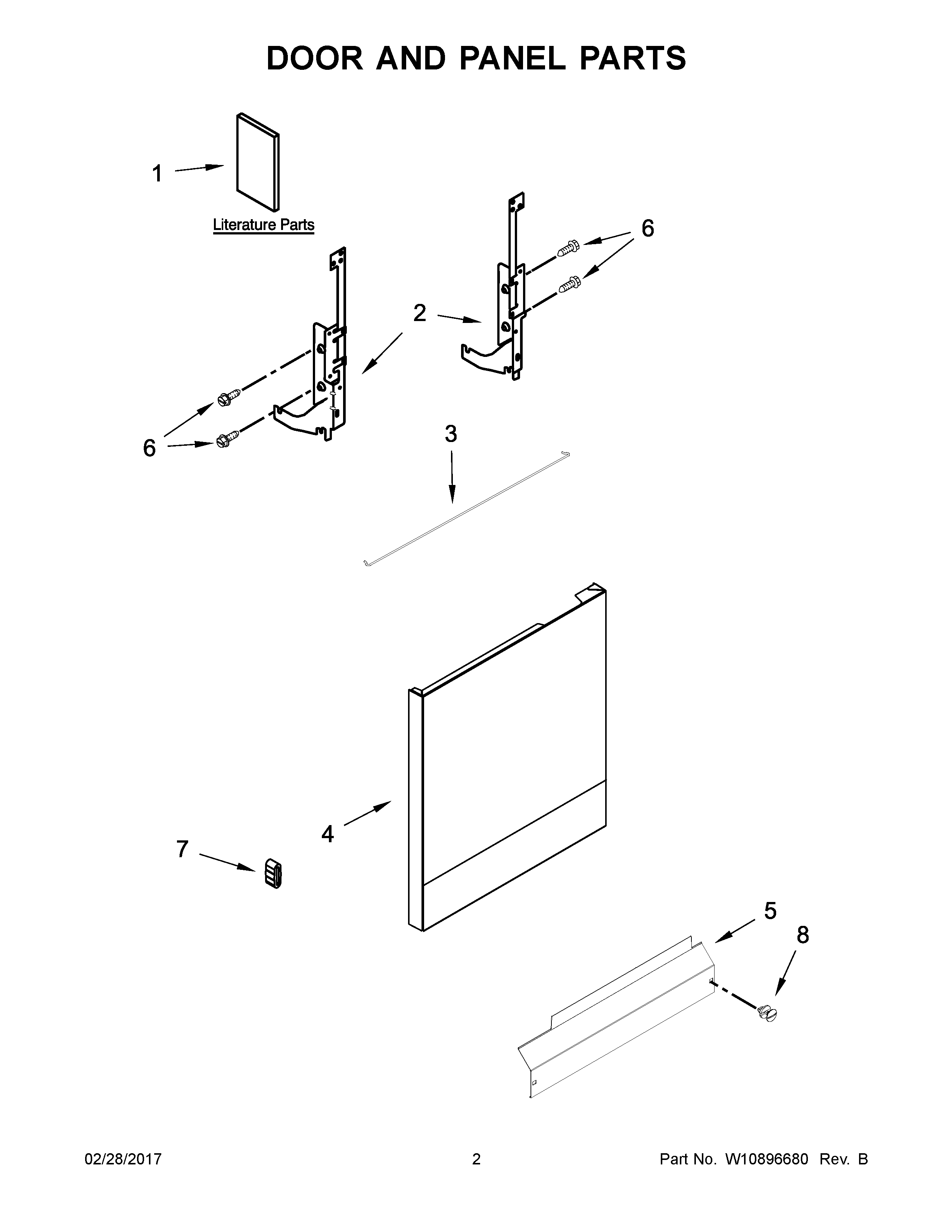

WDF110PABT5 02 – DOOR AND PANEL PARTS

WDF110PABT5 02 – DOOR AND PANEL PARTS

Written by

in

WDF110PABT5 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1BUSE & CARE GUIDE
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1INSTALLATION, INSTRUCTIONS
2W11613573 Whirlpool Door Hinge
2AW11613572 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4CPANEL FRONT (STAINLESS)
4APANEL FRONT (WHITE)
4WPW10274890 Whirlpool Dishwasher Panel
4BW10274892 Whirlpool Dishwasher Panel
5BW10441008 Whirlpool Dishwasher Panel
5AWPW10441007 Whirlpool Dishwasher Panel
5PANEL
6WPW10109200 Whirlpool Screw
7WP8268961 Whirlpool Friction Pad
8BWPW10503550 Whirlpool Dishwasher Retainer
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8AWPW10503549 Whirlpool Dishwasher Retainer Clip
