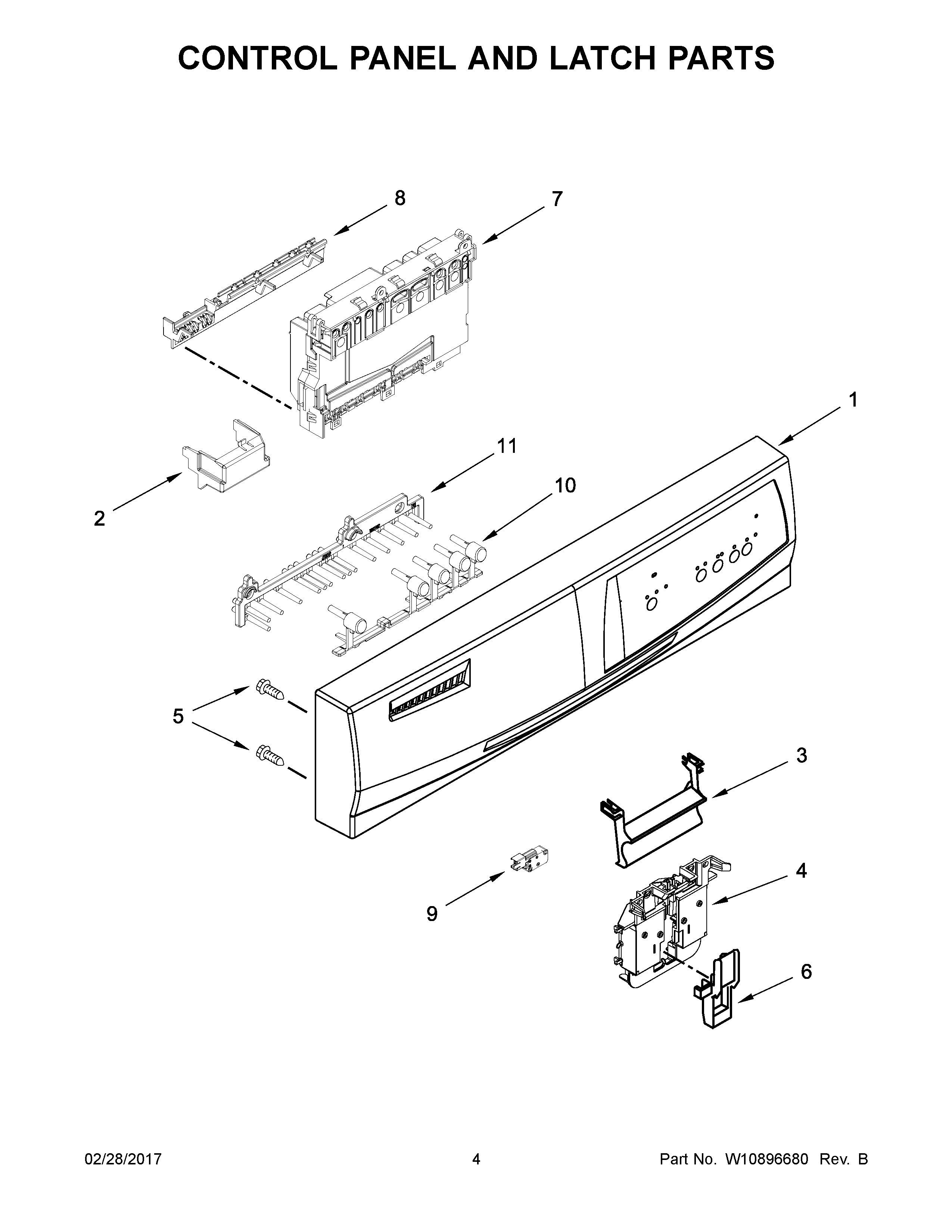

WDF110PABT5 03 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	WPW10531892 Whirlpool Dishwasher Console
1B	W10531894 Whirlpool Console
1A	W10531893 Whirlpool Dishwasher Console
3	WP8534984 Whirlpool Dishwasher Handle
3A	WP8534985 Whirlpool Dishwasher Handle
3B	8534986 Whirlpool Dishwasher Handle
4	BOLT-LATCH
5	WPW10348413 Whirlpool Dishwasher Screw
6	WP8524472 Whirlpool Dishwasher Door Latch Actuator
7	W10906422-includeCORE Whirlpool W10906422 Dishwasher Electronic Control Board + Core
8	W11305293 Whirlpool Dishwasher Electronic Control Board
9	WPW10274880 Whirlpool Switch
10	WPW10274840 Whirlpool Dishwasher Button
11	W10854407 Whirlpool Dishwasher Guide
