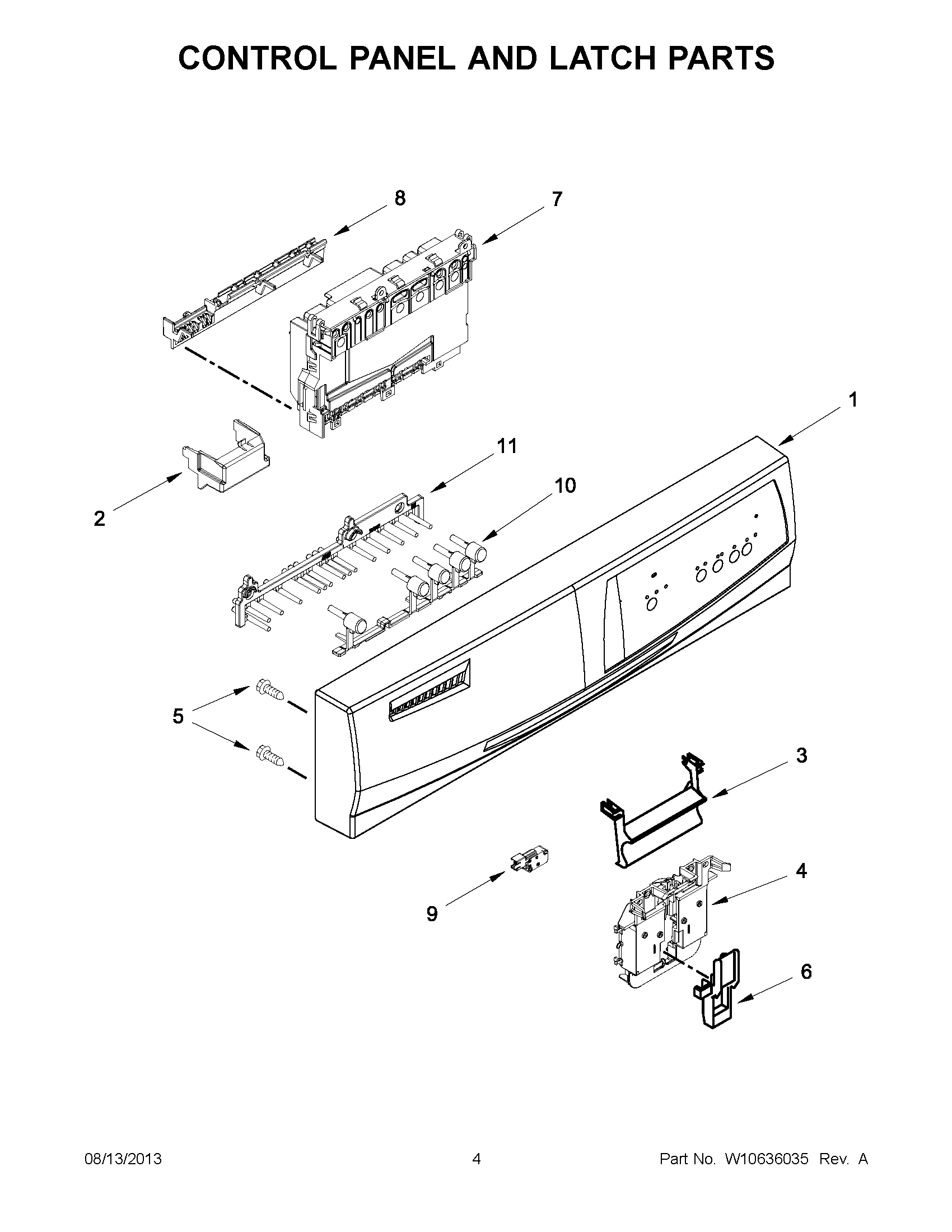

WDF110PABW3 03 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	WPW10531892 Whirlpool Dishwasher Console
1	W10531894 Whirlpool Console
1	W10531893 Whirlpool Dishwasher Console
2	W10783730 Whirlpool Dishwasher Connector
3	8534986 Whirlpool Dishwasher Handle
3	WP8534985 Whirlpool Dishwasher Handle
3	WP8534984 Whirlpool Dishwasher Handle
4	BOLT-LATCH
5	WPW10348413 Whirlpool Dishwasher Screw
6	WP8524472 Whirlpool Dishwasher Door Latch Actuator
7	W11039983-includeCORE Whirlpool W11039983 Dishwasher Electronic Control Board
8	WPW10372484 Whirlpool Dishwasher Brace
9	WPW10274880 Whirlpool Switch
10	WPW10274840 Whirlpool Dishwasher Button
11	W10854407 Whirlpool Dishwasher Guide
