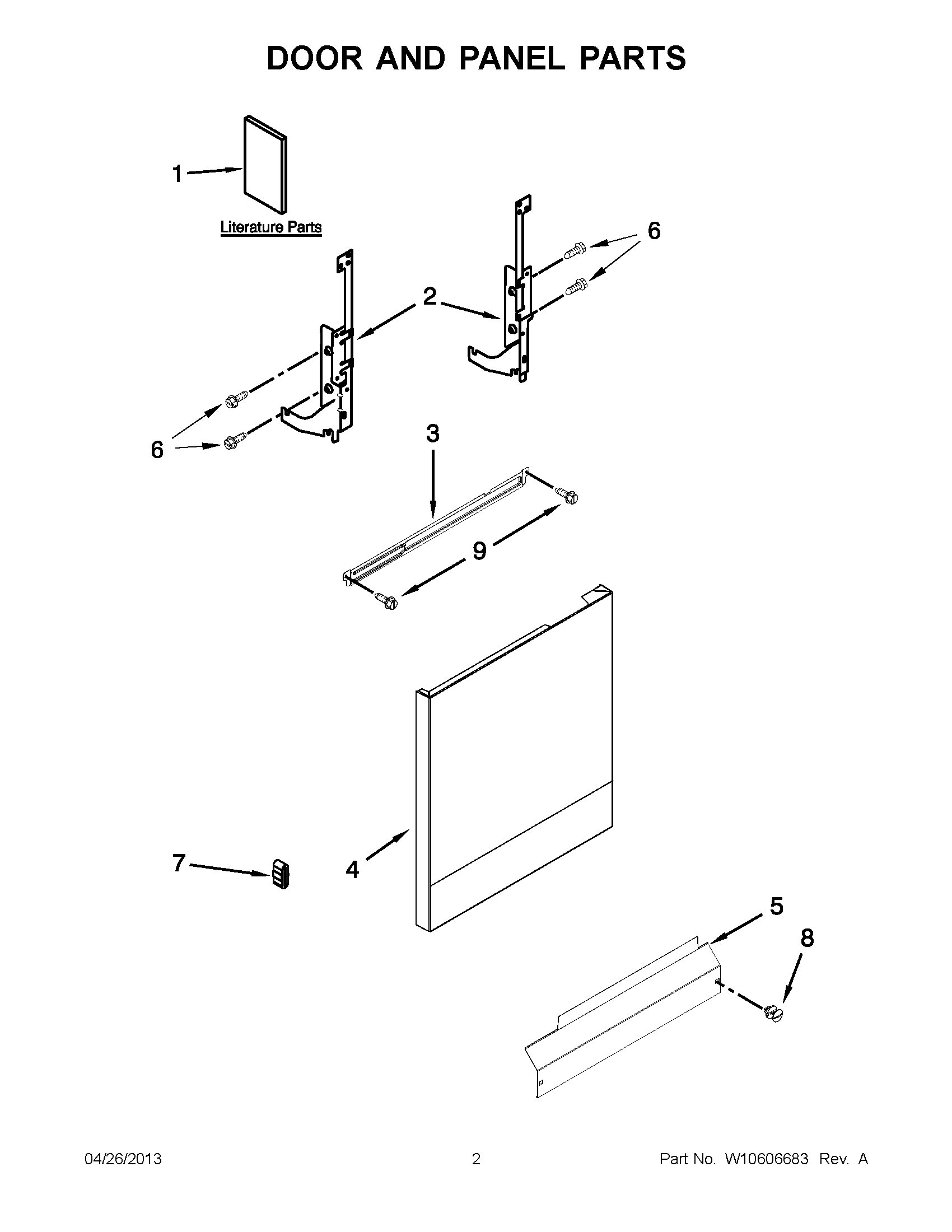

WDF111PABB0 01 – DOOR AND PANEL PARTS

WDF111PABB0 01 – DOOR AND PANEL PARTS

Written by

in

WDF111PABB0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1USE & CARE GUIDE
1ENERGY GUIDE
1INSTALLATION, INSTRUCTIONS
1TECH SHEET, ENGLISH
1TECH SHEET, FRENCH
2W11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10274890 Whirlpool Dishwasher Panel
4PANEL FRONT (WHITE)
5PANEL
5WPW10441007 Whirlpool Dishwasher Panel
6WPW10109200 Whirlpool Screw
7WP8268961 Whirlpool Friction Pad
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8WPW10503549 Whirlpool Dishwasher Retainer Clip
9WP489069 Whirlpool Compactor Screw
