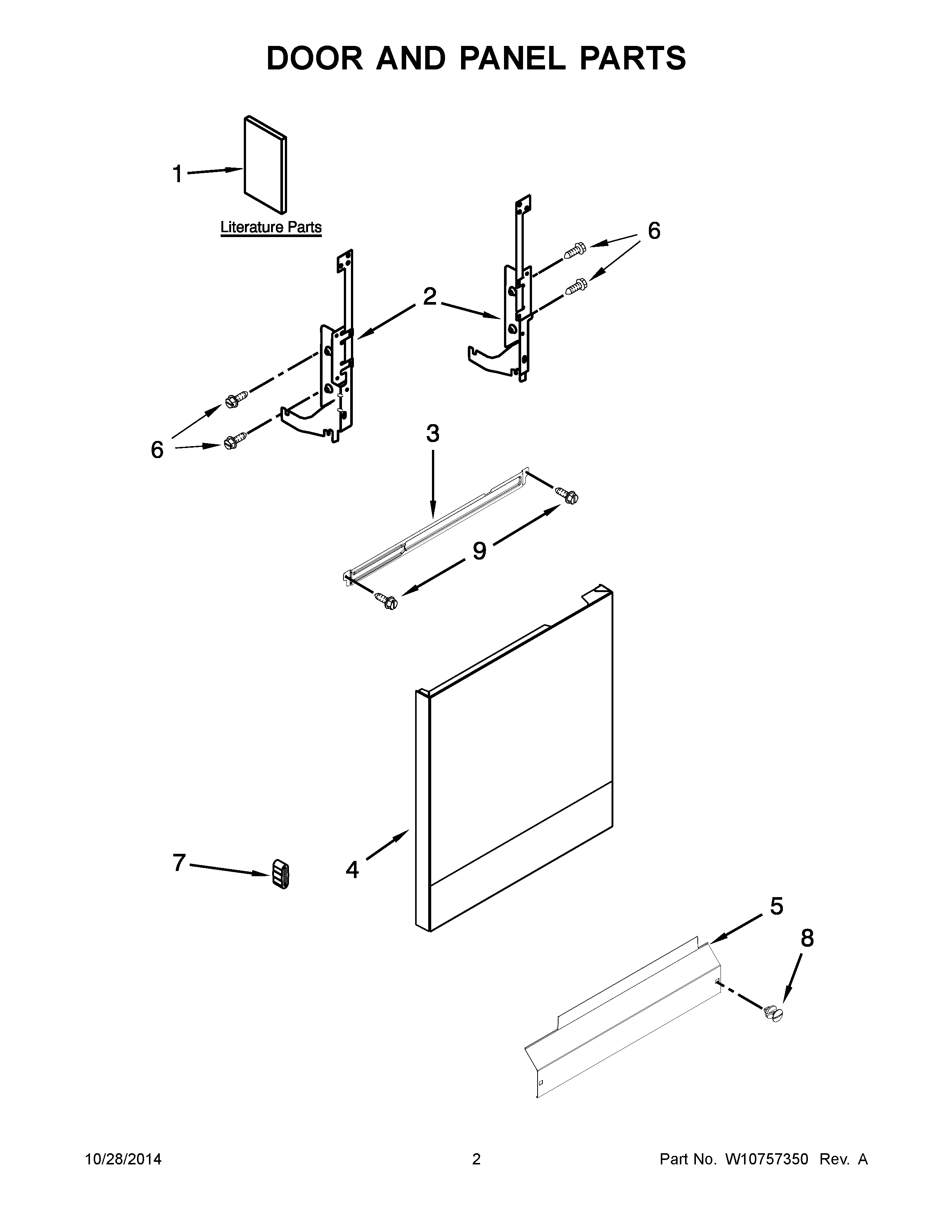

WDF111PABB4 02 – DOOR AND PANEL PARTS

WDF111PABB4 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BUSE & CARE GUIDE
1CTECH SHEET, ENGLISH
1INSTALLATION, INSTRUCTIONS
1DTECH SHEET, FRENCH
1AENERGY GUIDE
2AW11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10274890 Whirlpool Dishwasher Panel
4APANEL FRONT (WHITE)
5PANEL
5AWPW10441007 Whirlpool Dishwasher Panel
6WPW10109200 Whirlpool Screw
7WP8268961 Whirlpool Friction Pad
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8AWPW10503549 Whirlpool Dishwasher Retainer Clip
9WP489069 Whirlpool Compactor Screw
