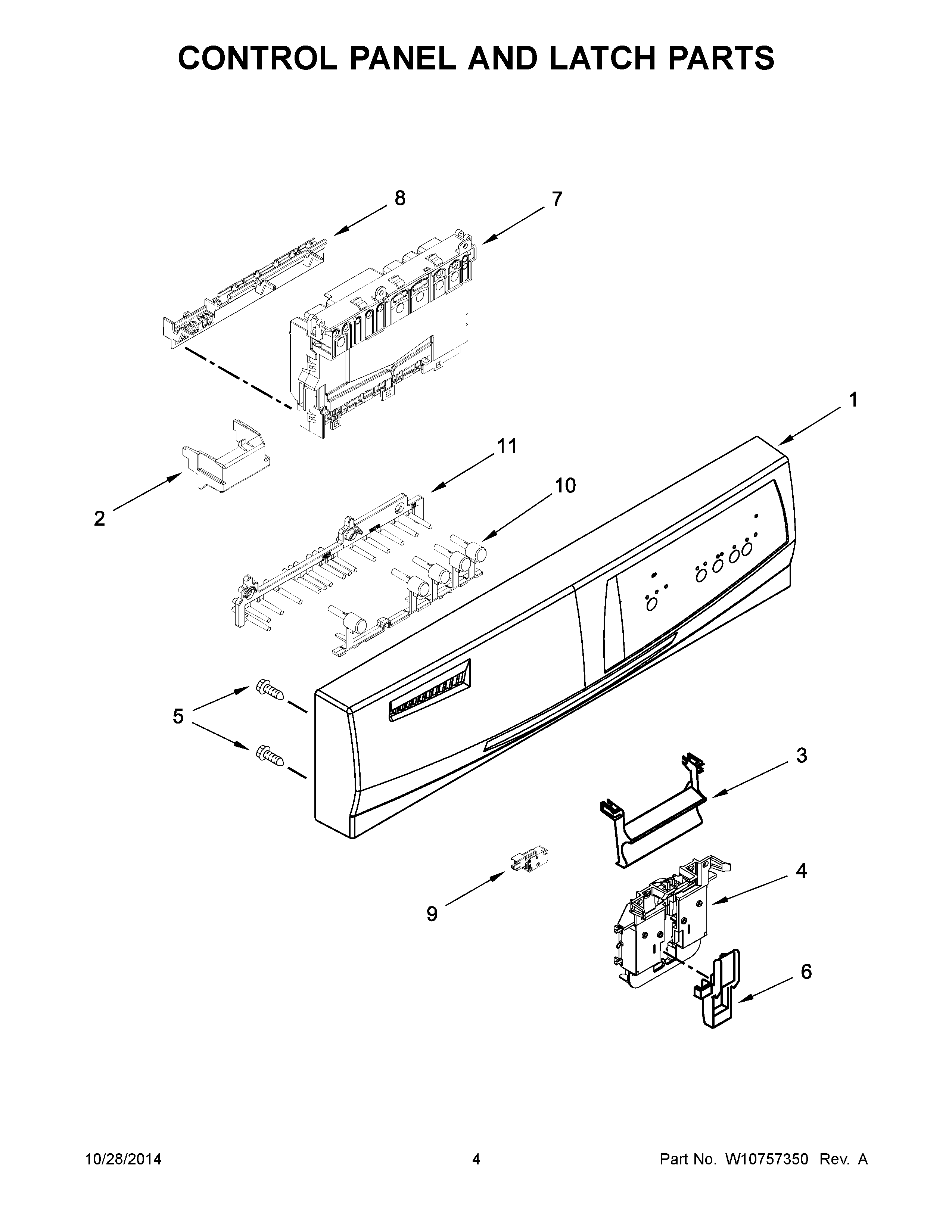

WDF111PABW4 03 – CONTROL PANEL AND LATCH PARTS

WDF111PABW4 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF111PABW4 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10531892 Whirlpool Dishwasher Console
1AW10531893 Whirlpool Dishwasher Console
2W10783730 Whirlpool Dishwasher Connector
3AWP8534985 Whirlpool Dishwasher Handle
3WP8534984 Whirlpool Dishwasher Handle
4BOLT-LATCH
5WPW10348413 Whirlpool Dishwasher Screw
6WP8524472 Whirlpool Dishwasher Door Latch Actuator
7W11039983-includeCORE Whirlpool W11039983 Dishwasher Electronic Control Board
8WPW10372484 Whirlpool Dishwasher Brace
9WPW10274880 Whirlpool Switch
10WPW10274840 Whirlpool Dishwasher Button
11W10854407 Whirlpool Dishwasher Guide
