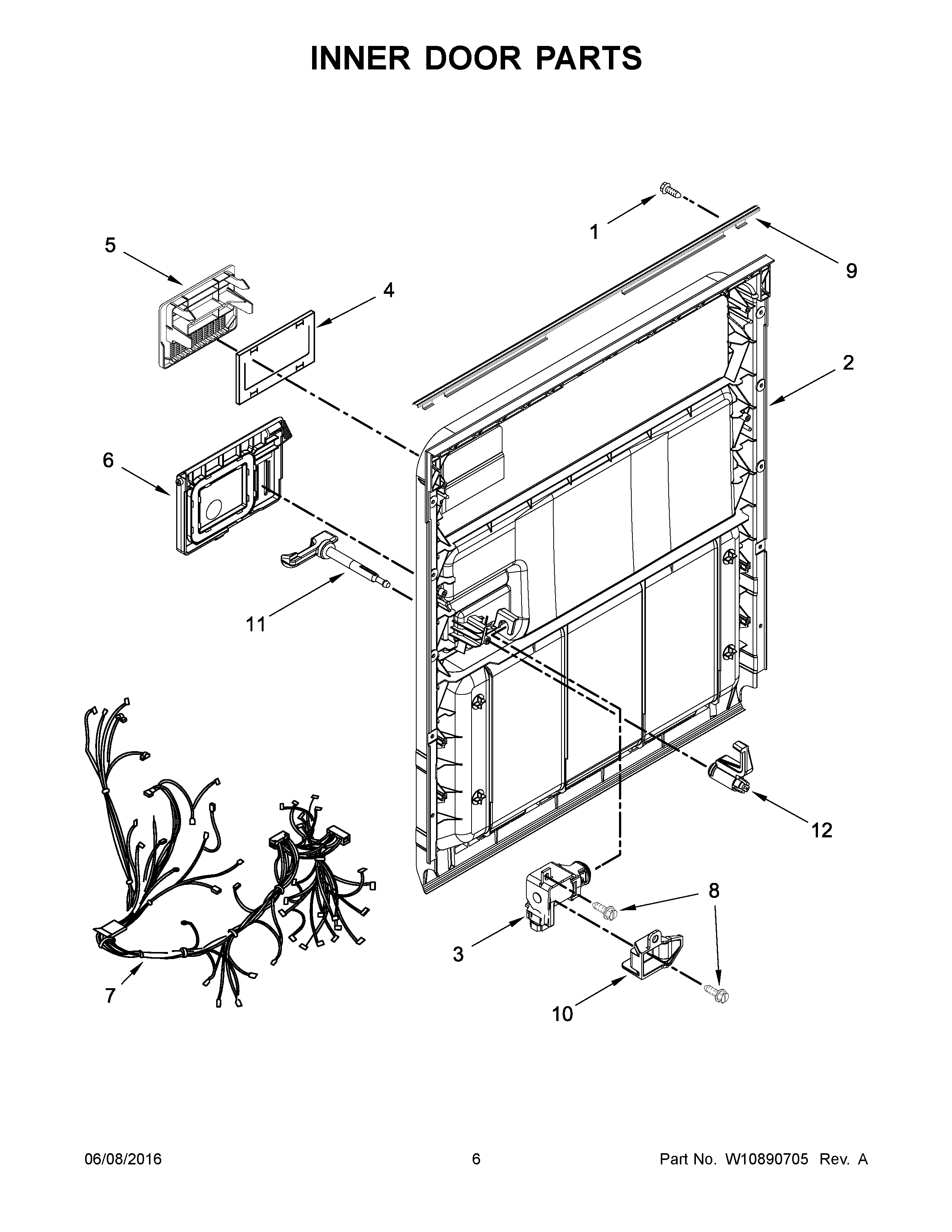

WDF120PAFB0 04 – INNER DOOR PARTS

WDF120PAFB0 04 – INNER DOOR PARTS

Written by

in

WDF120PAFB0 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348413 Whirlpool Dishwasher Screw
2W10514353 Whirlpool Dishwasher Inner Door
3W10514359 Whirlpool Dishwasher Solenoid
4WPW10254545 Whirlpool Dishwasher Gasket
5WPW10254548 Whirlpool Dishwasher Deflector
6W11651613 Whirlpool Cover
7W10832776 Whirlpool Dishwasher Wire Harness
8WPW10177098 Whirlpool Dishwasher Screw
9WP8269296 Whirlpool Dishwasher Seal
10W10544186 Whirlpool Dishwasher Retainer
11W11229687 Whirlpool Dishwasher Latch
12W11398648 Whirlpool Dishwasher Actuator
