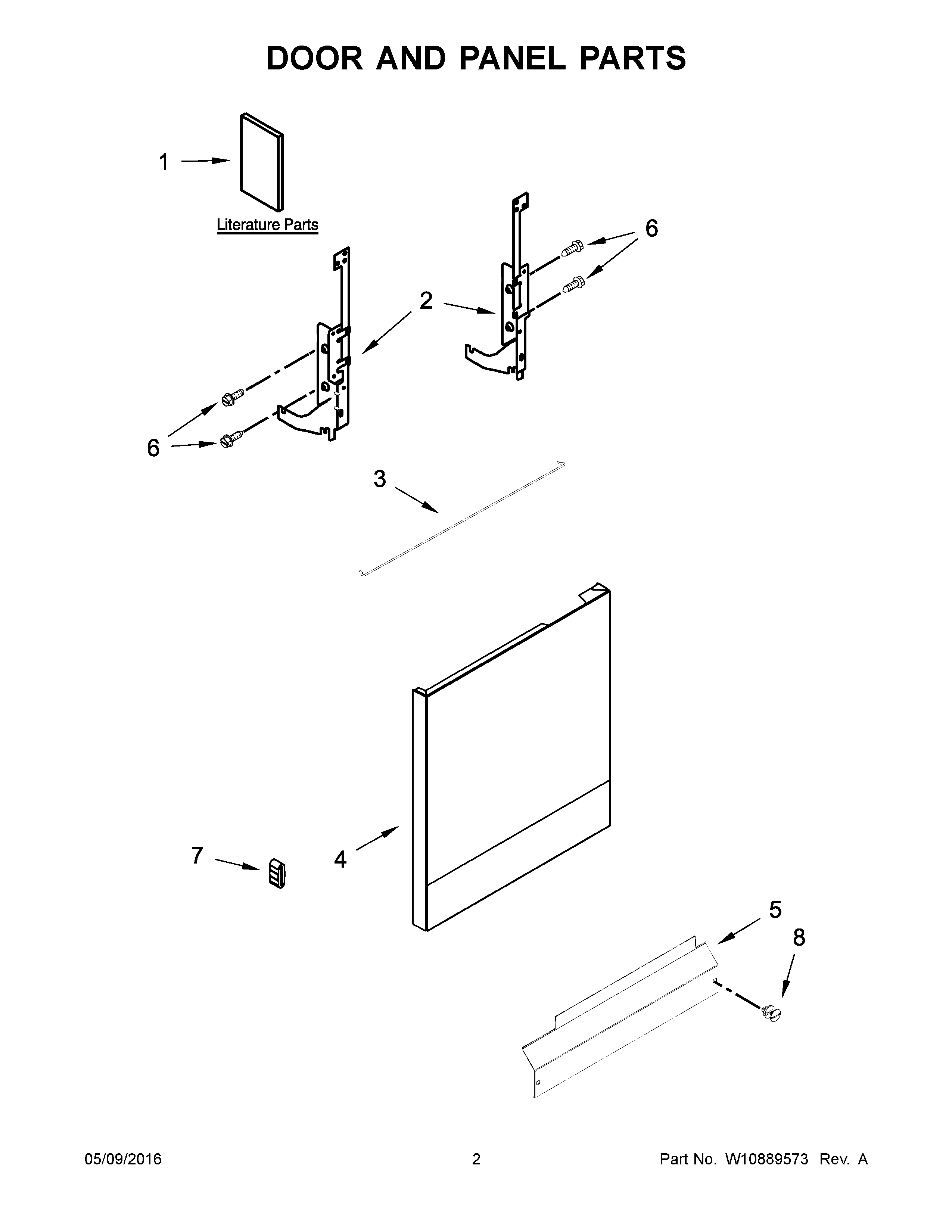

WDF121PAFB0 02 – DOOR AND PANEL PARTS

WDF121PAFB0 02 – DOOR AND PANEL PARTS

Written by

in

WDF121PAFB0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1BUSE & CARE GUIDE
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1INSTALLATION, INSTRUCTIONS
2AW11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4AWPW10274896 Whirlpool Dishwasher Panel
4WPW10274895 Whirlpool Dishwasher Panel
5AWPW10441007 Whirlpool Dishwasher Panel
5PANEL
6WPW10109200 Whirlpool Screw
7WP8268961 Whirlpool Friction Pad
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8AWPW10503549 Whirlpool Dishwasher Retainer Clip
