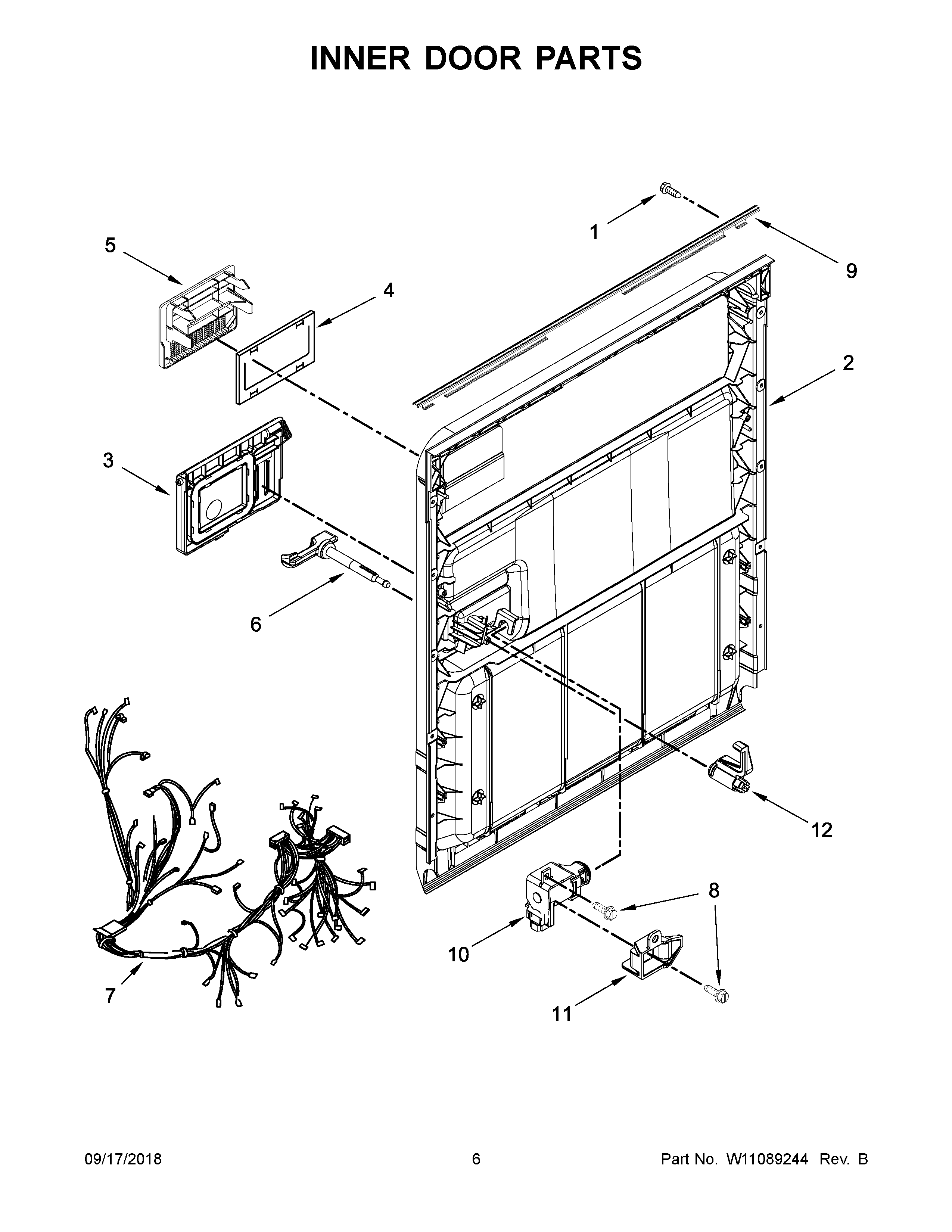

WDF130PAHB0 04 – INNER DOOR PARTS

WDF130PAHB0 04 – INNER DOOR PARTS

Written by

in

WDF130PAHB0 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2INNER DOOR ASSEMBLY (ALSO ORDER ITEM 4)
3W11651613 Whirlpool Cover
4WPW10254545 Whirlpool Dishwasher Gasket
5W10919772 Whirlpool Dishwasher Deflector
6W11229687 Whirlpool Dishwasher Latch
7W10832776 Whirlpool Dishwasher Wire Harness
8WPW10177098 Whirlpool Dishwasher Screw
9WP8269296 Whirlpool Dishwasher Seal
10W10514359 Whirlpool Dishwasher Solenoid
11W10544186 Whirlpool Dishwasher Retainer
12W11398648 Whirlpool Dishwasher Actuator
