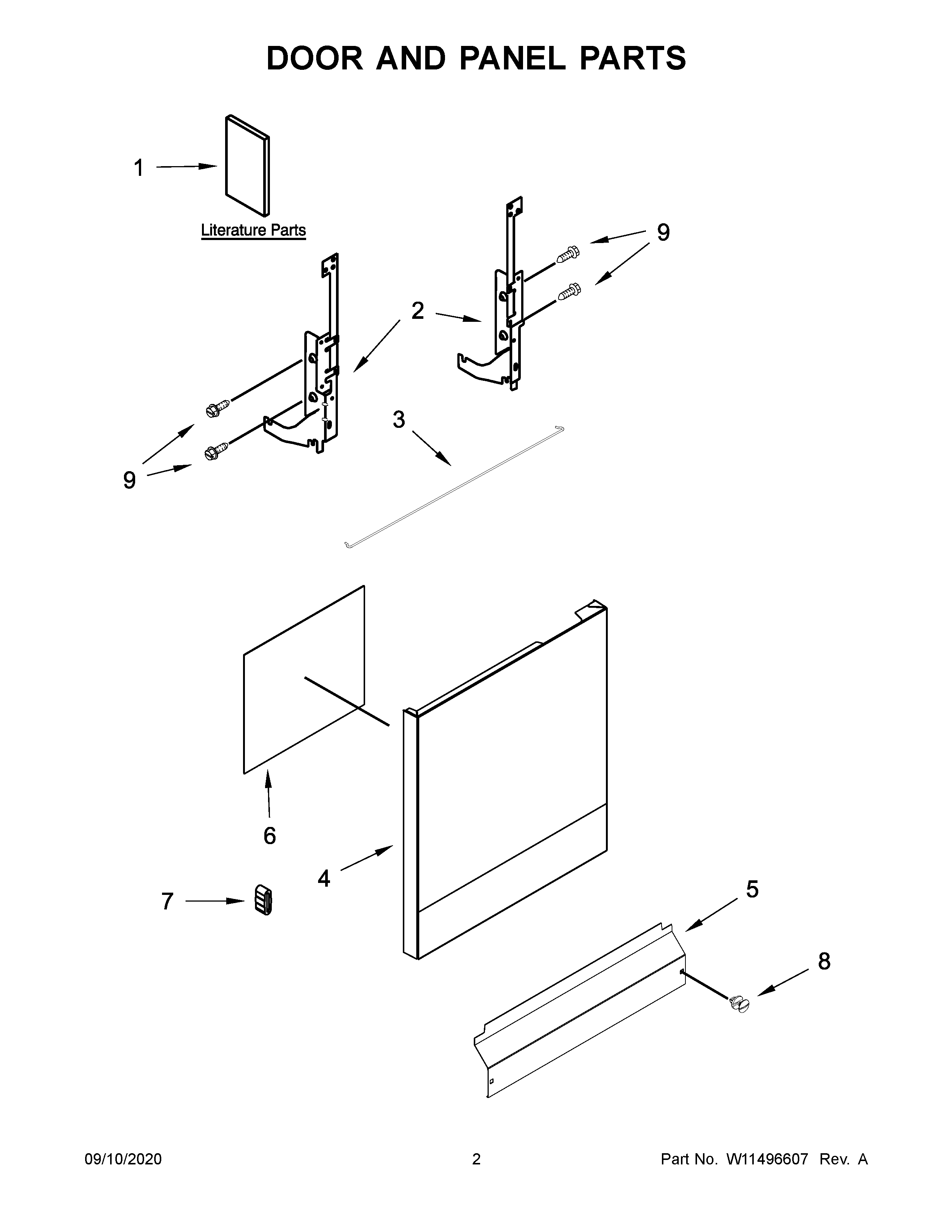

WDF130PAHS2 02 – DOOR AND PANEL PARTS

WDF130PAHS2 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1BTECH SHEET
1AOWNERS MANUAL
2AW11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4BWPW10274902 Whirlpool Dishwasher Control Panel
4AWPW10274896 Whirlpool Dishwasher Panel
4WPW10274895 Whirlpool Dishwasher Panel
5AWPW10441007 Whirlpool Dishwasher Panel
5PANEL
6W10254613 Whirlpool Insulation Pad
7WP8268961 Whirlpool Friction Pad
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8AWPW10503549 Whirlpool Dishwasher Retainer Clip
9WPW10109200 Whirlpool Screw
