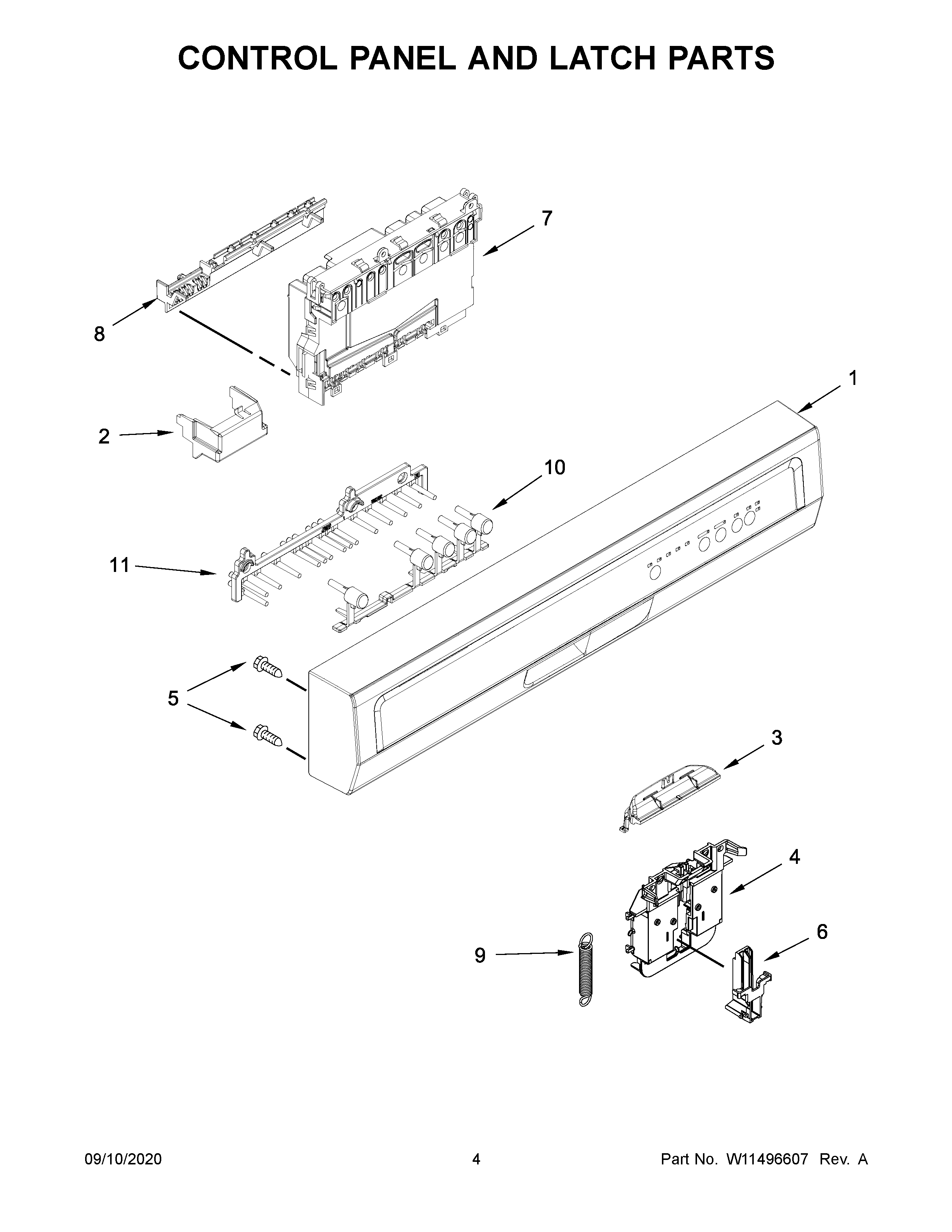

WDF130PAHS2 03 – CONTROL PANEL AND LATCH PARTS

WDF130PAHS2 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF130PAHS2 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1AW11090955 Whirlpool Dishwasher Console
1W11090954 Whirlpool Dishwasher Console
3W11684608 Whirlpool Handle Assembly
3AW10716686 Whirlpool Dishwasher Handle
4BOLT-LATCH
5WPW10348409 Whirlpool Screw
6WP8524471 Whirlpool Dishwasher Actuator
7W11367637 Whirlpool Dishwasher Electronic Control Board
8W11305293 Whirlpool Dishwasher Electronic Control Board
9W10678341 Whirlpool Dishwasher Spring
10W10854044 Whirlpool Dishwasher Button
11W10913666 Whirlpool Dishwasher Guide
