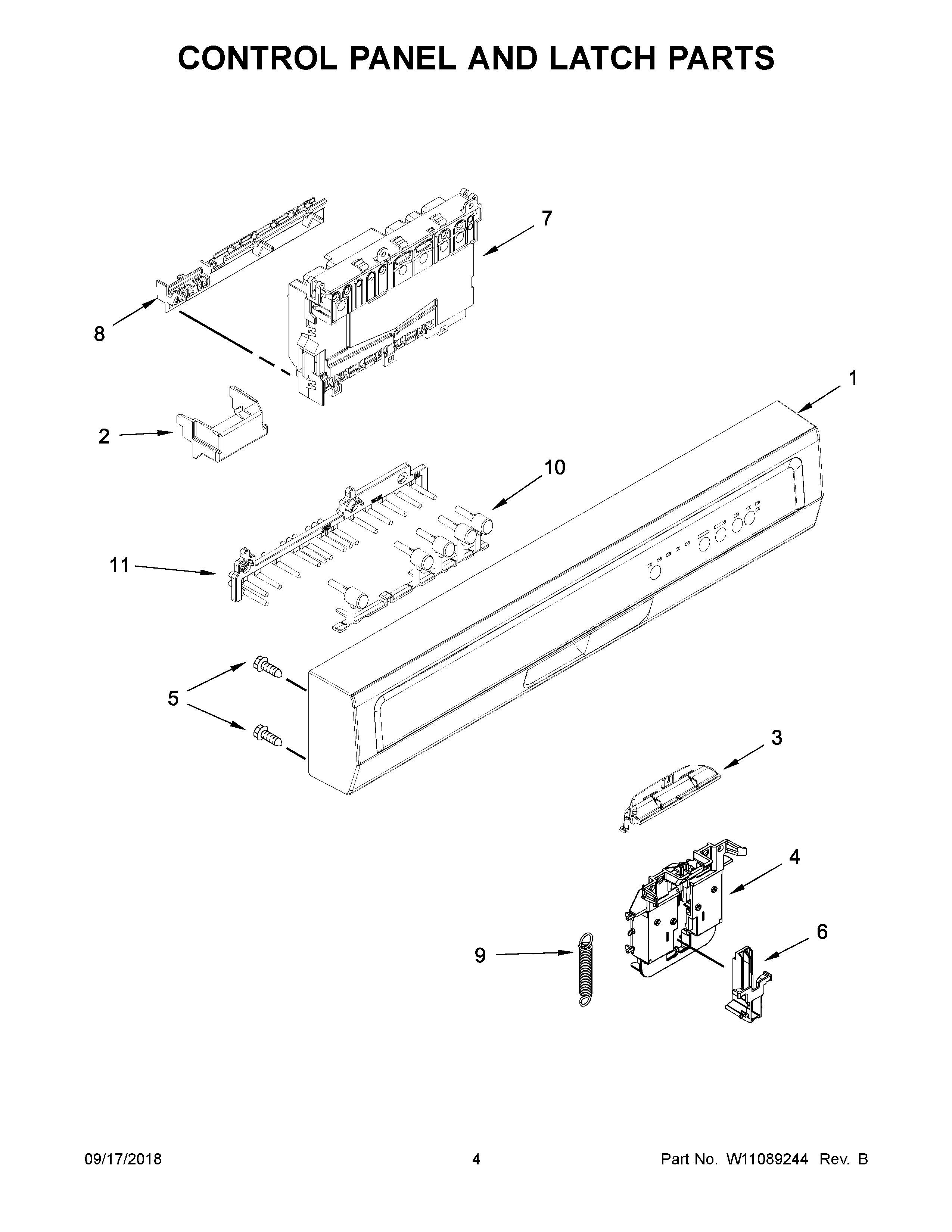

WDF130PAHT0 03 – CONTROL PANEL AND LATCH PARTS

WDF130PAHT0 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF130PAHT0 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1BCONSOLE ASSEMBLY (INCLUDES INSERT) (BISCUIT/BISQUE)
1AW11090955 Whirlpool Dishwasher Console
1W11090954 Whirlpool Dishwasher Console
3W11684608 Whirlpool Handle Assembly
3AW10716686 Whirlpool Dishwasher Handle
4BOLT-LATCH
5WPW10348409 Whirlpool Screw
6WP8524471 Whirlpool Dishwasher Actuator
7W11087225 Whirlpool Dishwasher Electronic Control Board + Core
8W11305293 Whirlpool Dishwasher Electronic Control Board
9W10678341 Whirlpool Dishwasher Spring
10W10854044 Whirlpool Dishwasher Button
11W10913666 Whirlpool Dishwasher Guide
