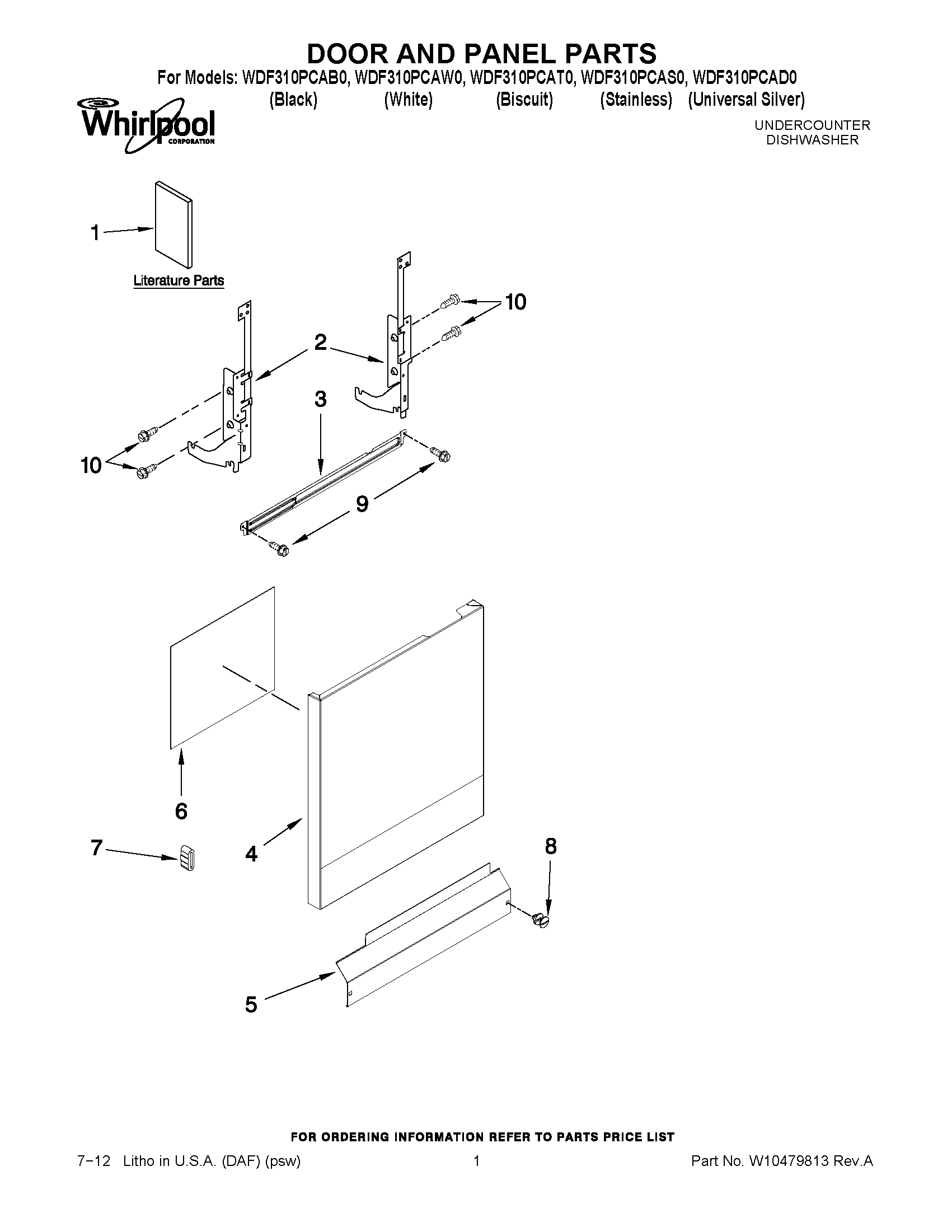

WDF310PCAB0 01 – DOOR AND PANEL PARTS

WDF310PCAB0 01 – DOOR AND PANEL PARTS

Written by

in

WDF310PCAB0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1USE & CARE GUIDE
1INSTALLATION, INSTRUCTIONS
1TECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4PANEL FRONT (STAINLESS)
4PANEL FRONT (UNIVERSAL SILVER)
4PANEL FRONT (WHITE)
4WPW10274890 Whirlpool Dishwasher Panel
4W10274892 Whirlpool Dishwasher Panel
5W10441008 Whirlpool Dishwasher Panel
5WPW10441007 Whirlpool Dishwasher Panel
5PANEL
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7WP8268961 Whirlpool Friction Pad
8WPW10503549 Whirlpool Dishwasher Retainer Clip
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8WPW10503550 Whirlpool Dishwasher Retainer
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
