WDF310PLAB4 03 – INNER DOOR PARTS

WDF310PLAB4 03 – INNER DOOR PARTS

Written by

in

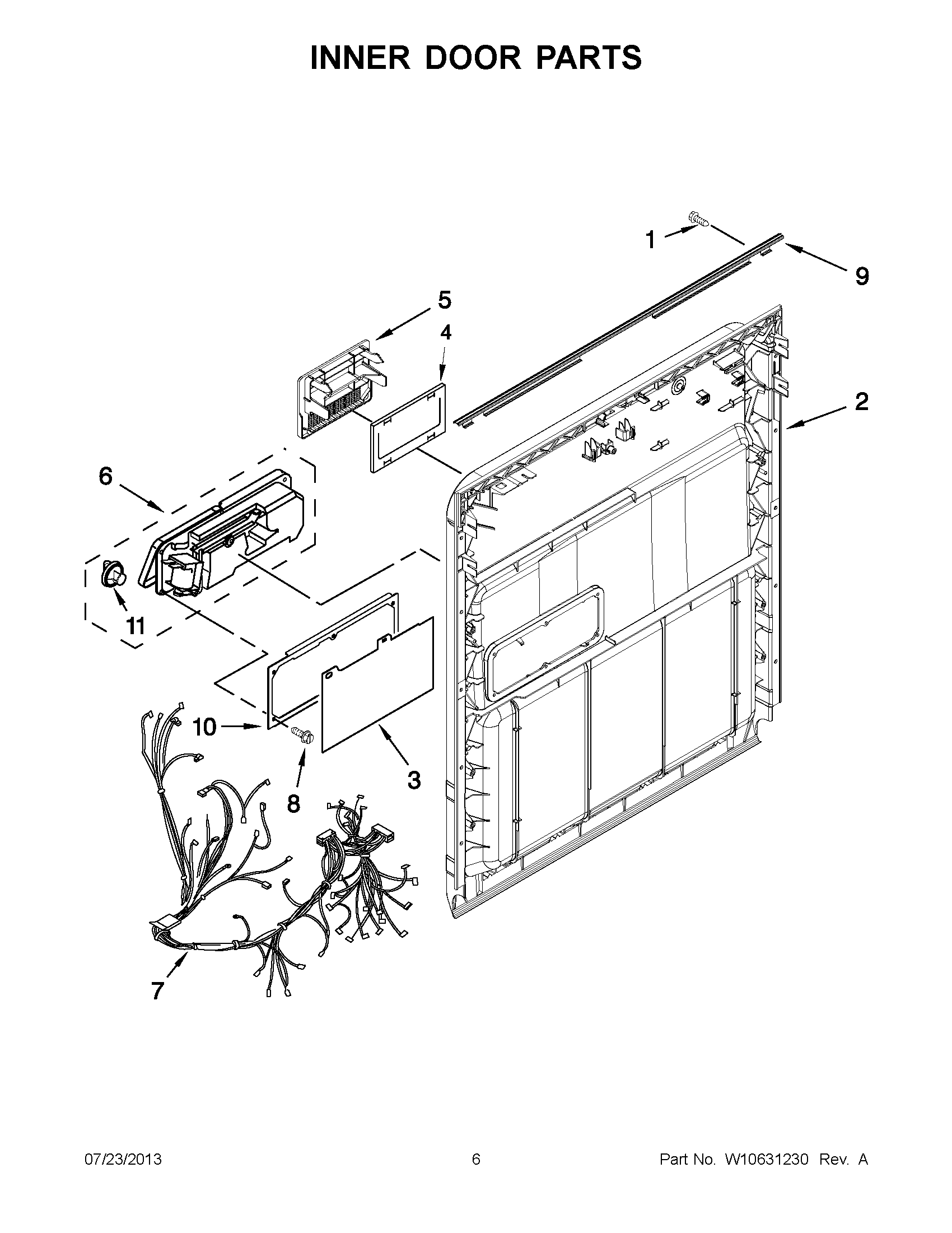

WDF310PLAB4 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348413 Whirlpool Dishwasher Screw
2WPW10254547 Whirlpool Dishwasher Inner Door
3WPW10482094 Whirlpool Dishwasher Cover
4W10475829 Whirlpool Dishwasher Gasket
5WPW10254548 Whirlpool Dishwasher Deflector
6WPW10224430 Whirlpool Dishwasher Detergent Dispenser
7W10537905 Whirlpool Dishwasher Wire Harness
8WPW10177098 Whirlpool Dishwasher Screw
9WP8269296 Whirlpool Dishwasher Seal
10WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
11WP8533380 Whirlpool Dishwasher Cap
