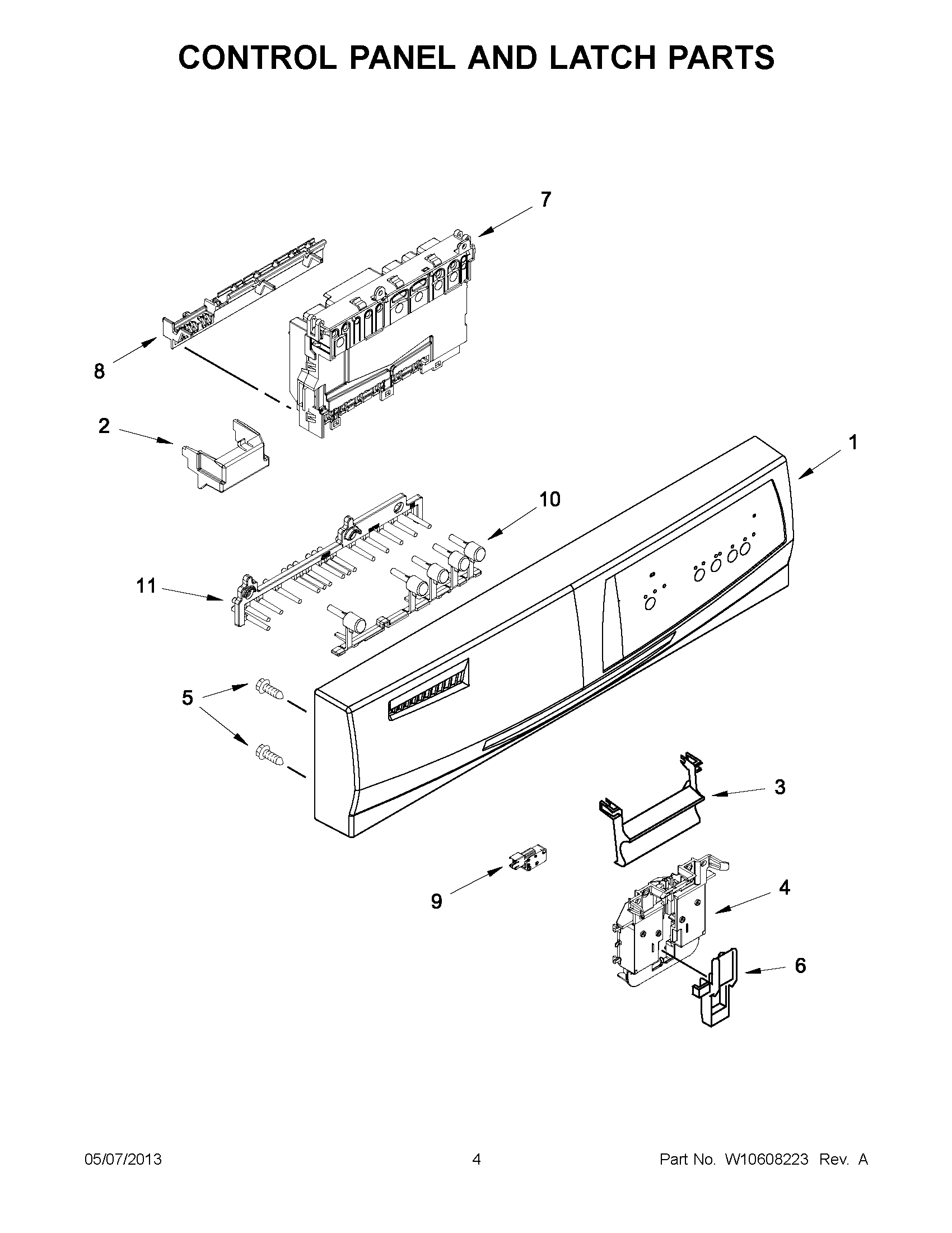

WDF310PLAD3 02 – CONTROL PANEL AND LATCH PARTS

WDF310PLAD3 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF310PLAD3 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES INSERT) (BISCUIT/BISQUE)
1WPW10551672 Whirlpool Dishwasher Console
1WPW10551671 Whirlpool Dishwasher Console
2W10783730 Whirlpool Dishwasher Connector
3WP8534985 Whirlpool Dishwasher Handle
3WP8534984 Whirlpool Dishwasher Handle
38534986 Whirlpool Dishwasher Handle
4BOLT-LATCH
5WPW10348413 Whirlpool Dishwasher Screw
6WP8524472 Whirlpool Dishwasher Door Latch Actuator
7CNTRL-ELEC(DISHWASH)
8WPW10372484 Whirlpool Dishwasher Brace
9WPW10274880 Whirlpool Switch
10WPW10274840 Whirlpool Dishwasher Button
11W10854407 Whirlpool Dishwasher Guide
