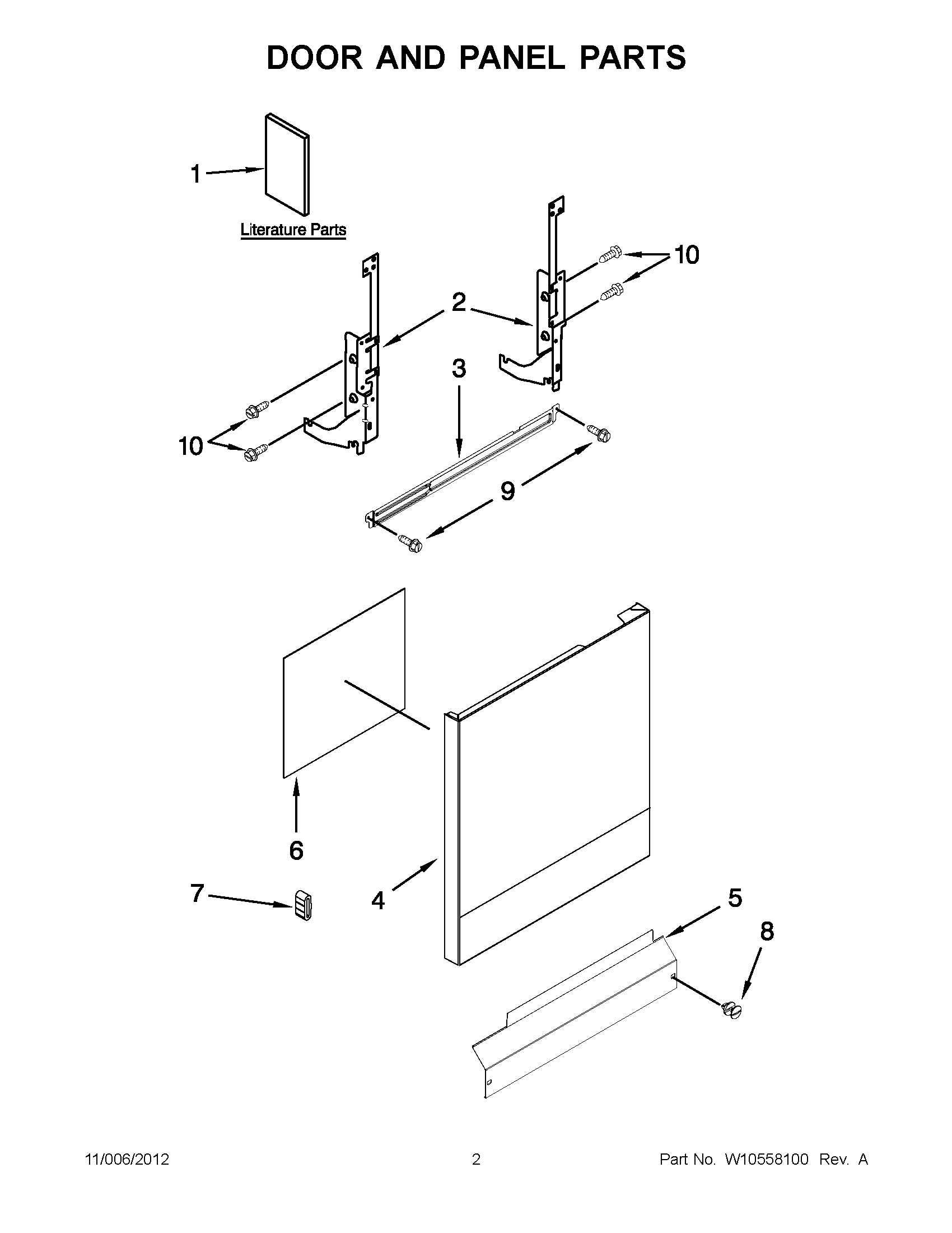

WDF310PLAW2 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1	USE & CARE GUIDE
1	TECH SHEET (ENGLISH)
1	TECH SHEET (FRENCH)
1	INSTALLATION, INSTRUCTIONS
1	USE & CARE GUIDE, SPANISH
2	W11613572 Whirlpool Dishwasher Door Hinge
2	W11613573 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	W10274892 Whirlpool Dishwasher Panel
4	WPW10274890 Whirlpool Dishwasher Panel
4	PANEL FRONT (WHITE)
4	PANEL FRONT (UNIVERSAL SILVER)
5	PANEL
5	W10441008 Whirlpool Dishwasher Panel
5	WPW10441007 Whirlpool Dishwasher Panel
6	WPW10073520 Whirlpool Dishwasher Insulation Pad
7	WP8268961 Whirlpool Friction Pad
8	WPW10503550 Whirlpool Dishwasher Retainer
8	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8	WPW10503549 Whirlpool Dishwasher Retainer Clip
9	WP489069 Whirlpool Compactor Screw
10	WPW10109200 Whirlpool Screw
