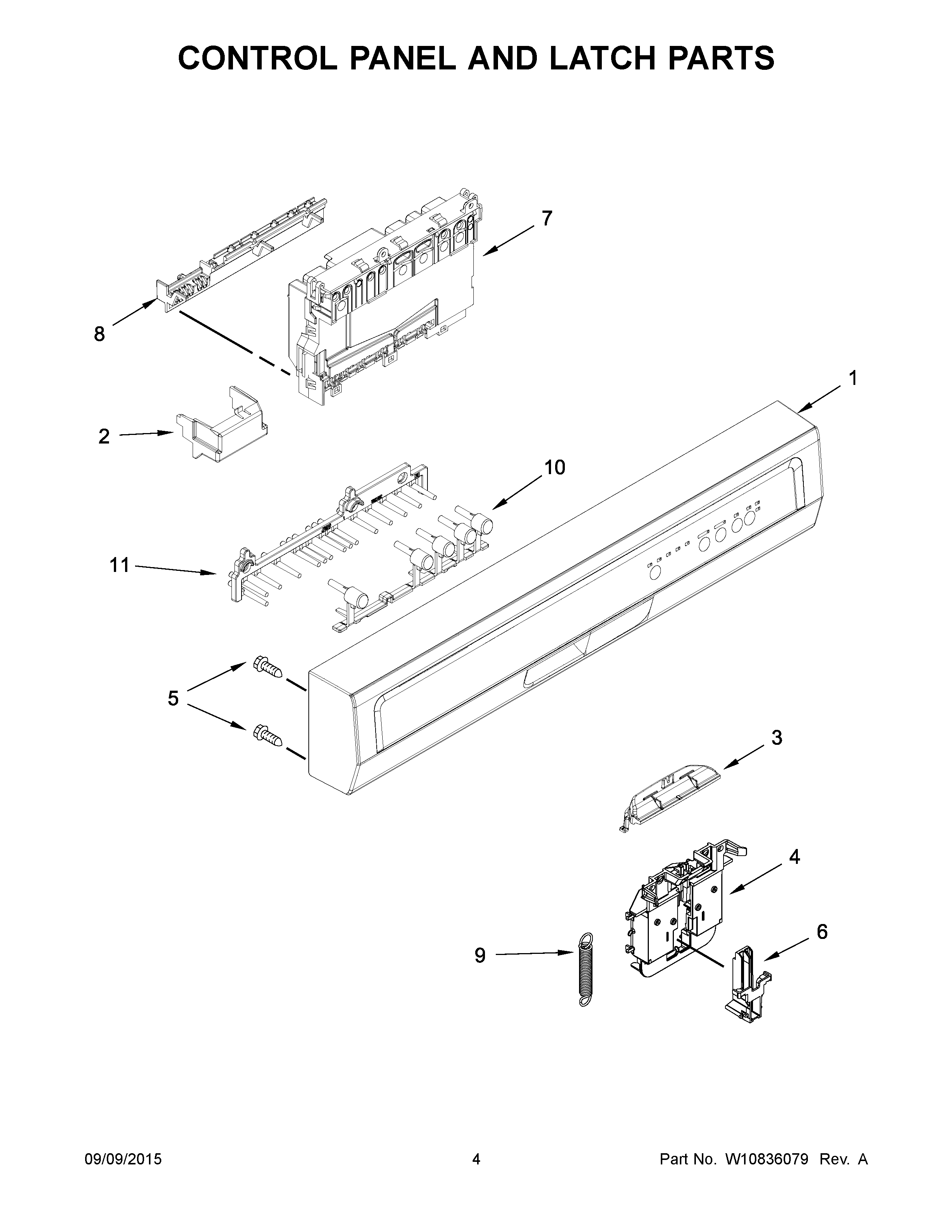

WDF320PADB2 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1BW10698611 Whirlpool Dishwasher Console
1AW10810491 Whirlpool Dishwasher Console
1WPW10698609 Whirlpool Dishwasher Console
2W10783730 Whirlpool Dishwasher Connector
3W11684608 Whirlpool Handle Assembly
3AW10716686 Whirlpool Dishwasher Handle
4BOLT-LATCH
5WPW10348413 Whirlpool Dishwasher Screw
6WP8524471 Whirlpool Dishwasher Actuator
7W11025829-includeCORE Whirlpool W11025829 Dishwasher Electronic Control Board + Core
8WPW10372484 Whirlpool Dishwasher Brace
9W10678341 Whirlpool Dishwasher Spring
10W10854044 Whirlpool Dishwasher Button
11W10913666 Whirlpool Dishwasher Guide
