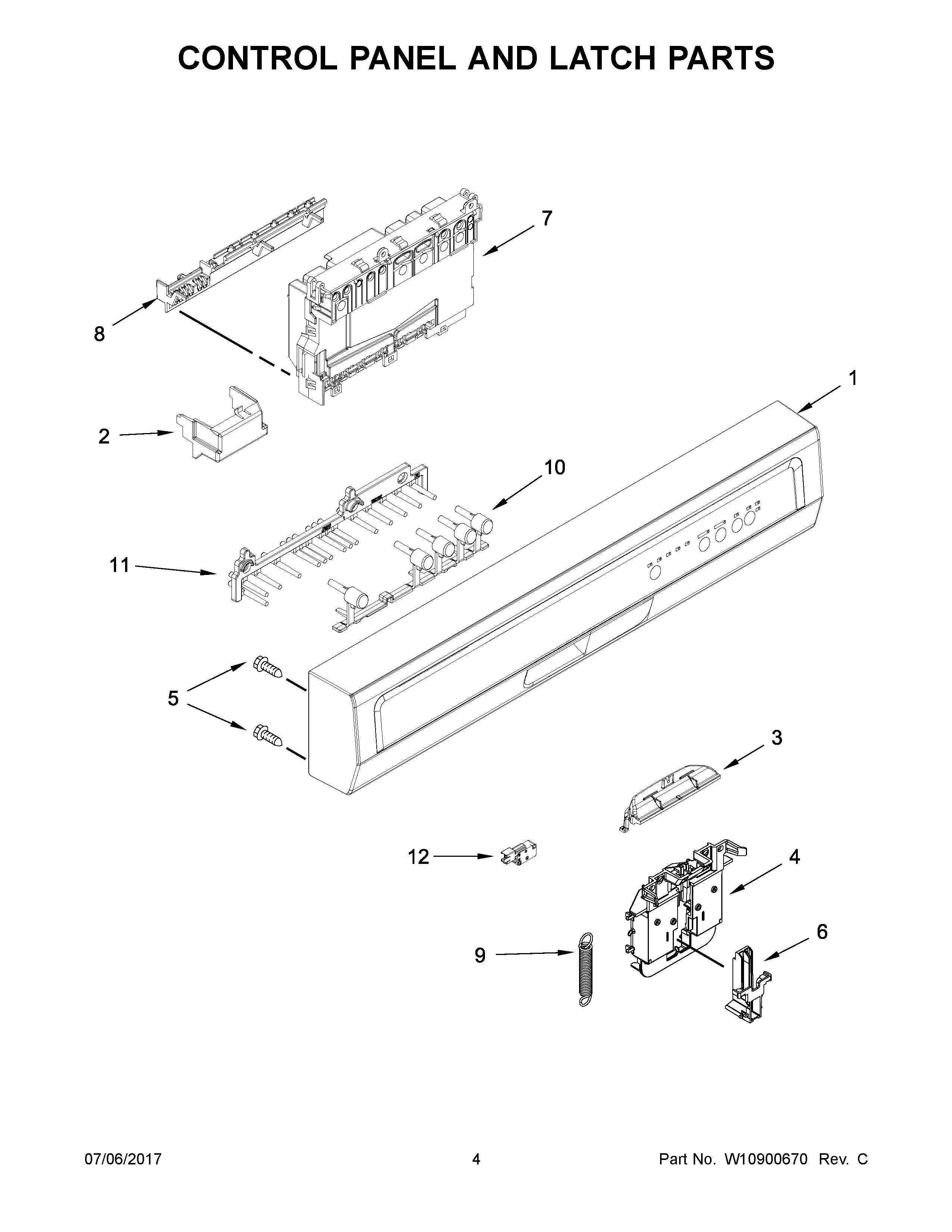

WDF320PADB3 03 – CONTROL PANEL AND LATCH PARTS

WDF320PADB3 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF320PADB3 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1BW10698611 Whirlpool Dishwasher Console
1AW10810491 Whirlpool Dishwasher Console
1WPW10698609 Whirlpool Dishwasher Console
3W11684608 Whirlpool Handle Assembly
3AW10716686 Whirlpool Dishwasher Handle
4BOLT-LATCH
5WPW10348413 Whirlpool Dishwasher Screw
6WP8524471 Whirlpool Dishwasher Actuator
7W10906425-includeCORE Whirlpool W10906425 Dishwasher Electronic Control Board with Core
8W11305293 Whirlpool Dishwasher Electronic Control Board
9W10678341 Whirlpool Dishwasher Spring
10W10854044 Whirlpool Dishwasher Button
11W10913666 Whirlpool Dishwasher Guide
12WPW10274880 Whirlpool Switch
