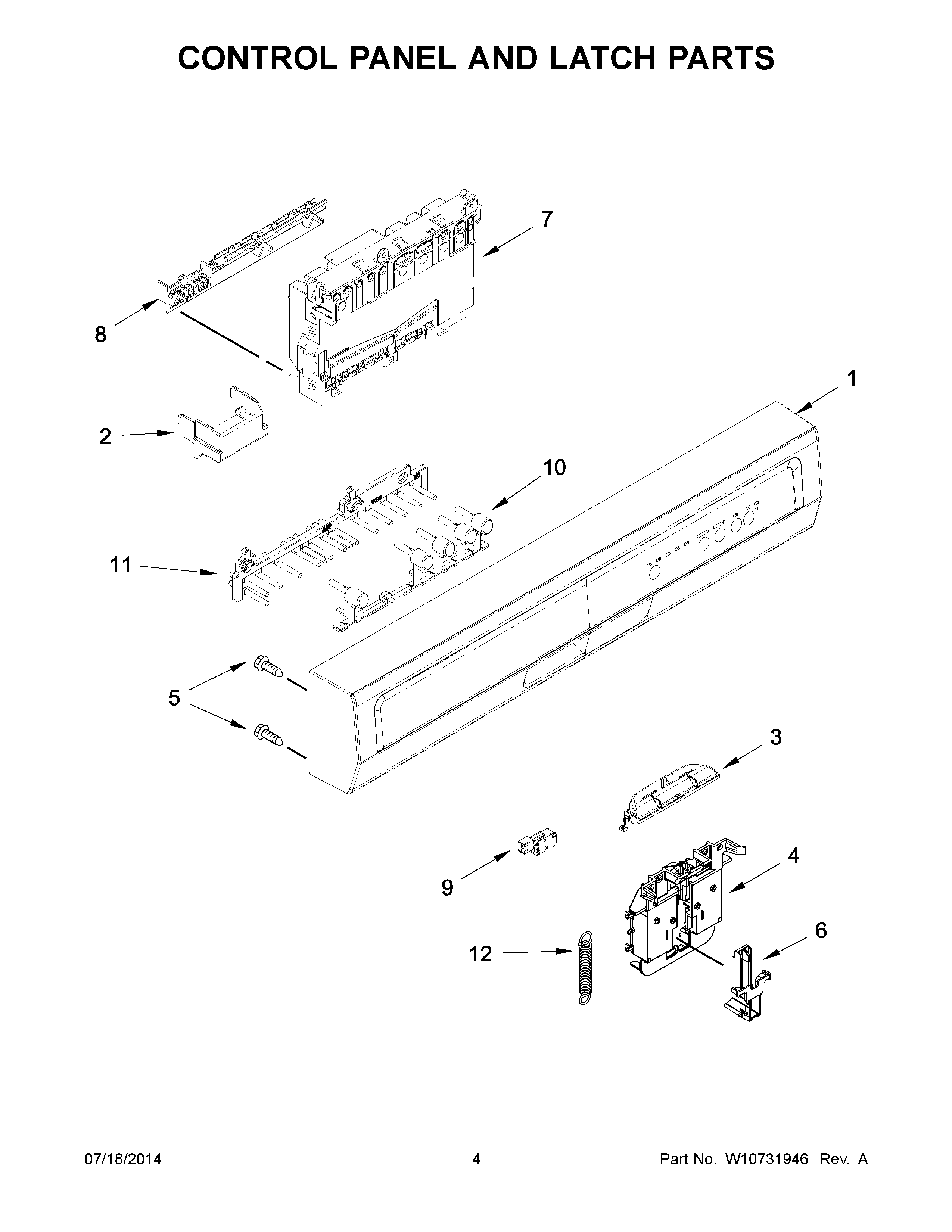

WDF320PADS0 03 – CONTROL PANEL AND LATCH PARTS

WDF320PADS0 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF320PADS0 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1BW10698611 Whirlpool Dishwasher Console
1AW10810491 Whirlpool Dishwasher Console
1WPW10698609 Whirlpool Dishwasher Console
2W10783730 Whirlpool Dishwasher Connector
3BW11684608 Whirlpool Handle Assembly
3AW10716686 Whirlpool Dishwasher Handle
4BOLT-LATCH
5WPW10348413 Whirlpool Dishwasher Screw
6WP8524471 Whirlpool Dishwasher Actuator
7W10804118 Whirlpool Dishwasher Electronic Control Board
8WPW10372484 Whirlpool Dishwasher Brace
9WPW10274880 Whirlpool Switch
10W10854044 Whirlpool Dishwasher Button
11W10913666 Whirlpool Dishwasher Guide
12W10678341 Whirlpool Dishwasher Spring
