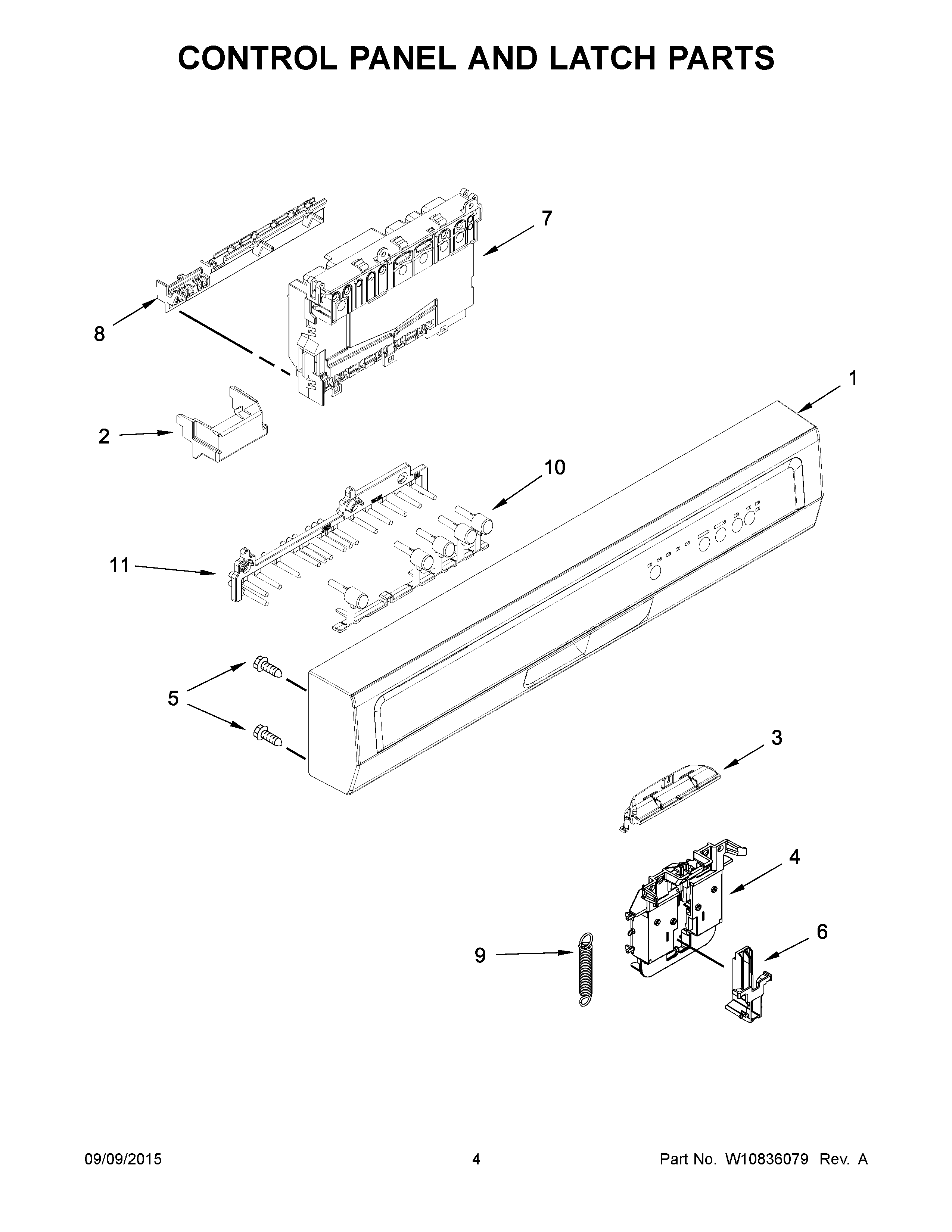

WDF320PADT2 03 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1B	W10698611 Whirlpool Dishwasher Console
1A	W10810491 Whirlpool Dishwasher Console
1	WPW10698609 Whirlpool Dishwasher Console
2	W10783730 Whirlpool Dishwasher Connector
3	W11684608 Whirlpool Handle Assembly
3A	W10716686 Whirlpool Dishwasher Handle
4	BOLT-LATCH
5	WPW10348413 Whirlpool Dishwasher Screw
6	WP8524471 Whirlpool Dishwasher Actuator
7	W11025829-includeCORE Whirlpool W11025829 Dishwasher Electronic Control Board + Core
8	WPW10372484 Whirlpool Dishwasher Brace
9	W10678341 Whirlpool Dishwasher Spring
10	W10854044 Whirlpool Dishwasher Button
11	W10913666 Whirlpool Dishwasher Guide
