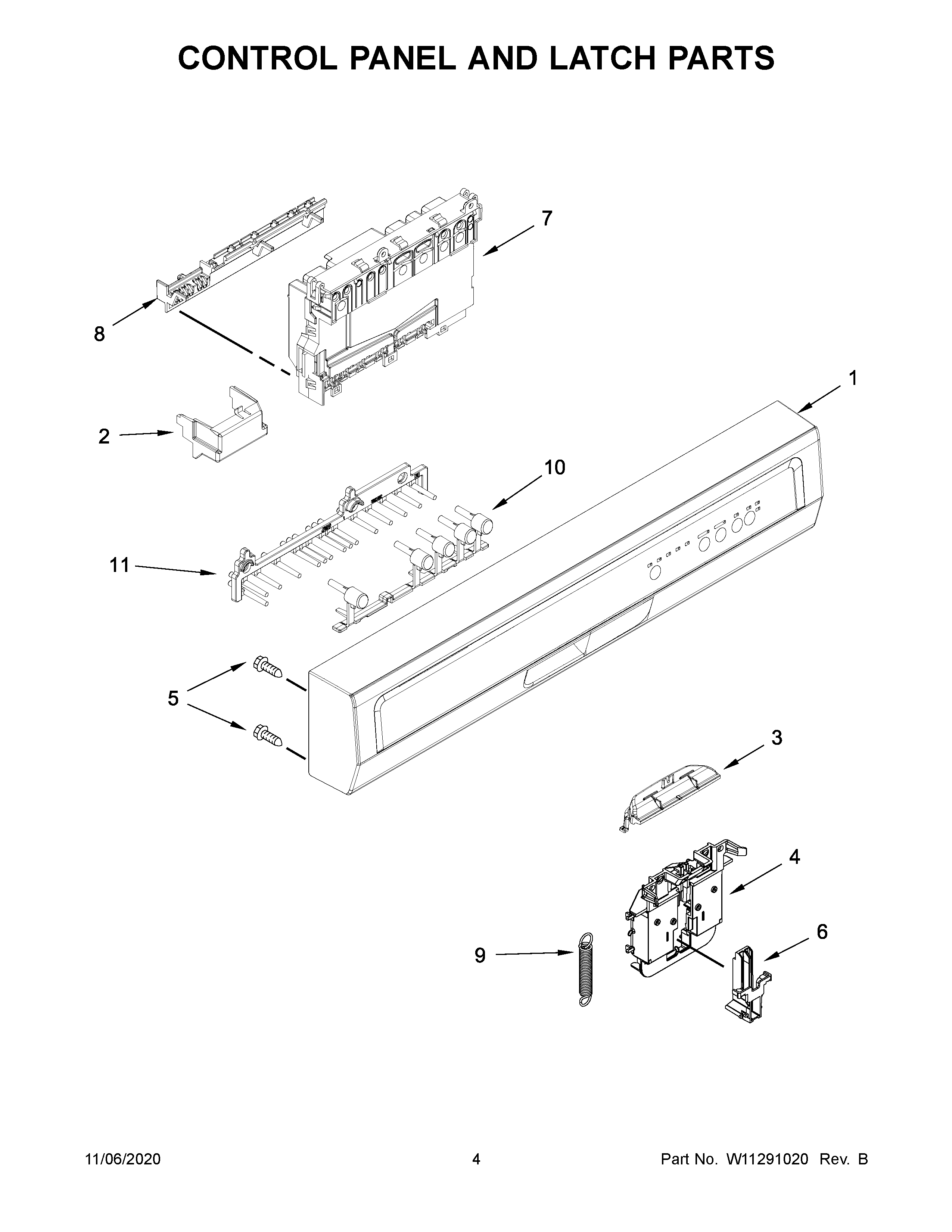

WDF330PAHB3 03 – CONTROL PANEL AND LATCH PARTS

WDF330PAHB3 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF330PAHB3 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1BW11095592 Whirlpool Dishwasher Console
1AW11095591 Whirlpool Dishwasher Console
1W11095590 Whirlpool Dishwasher Console
3W11684608 Whirlpool Handle Assembly
3AW10716686 Whirlpool Dishwasher Handle
4BOLT-LATCH
5WPW10348409 Whirlpool Screw
6WP8524471 Whirlpool Dishwasher Actuator
7W11087226-includeCORE Whirlpool W11087226 Dishwasher Electronic Control Board with Core
8W11305293 Whirlpool Dishwasher Electronic Control Board
9W10678341 Whirlpool Dishwasher Spring
10W10854044 Whirlpool Dishwasher Button
11W10913666 Whirlpool Dishwasher Guide
