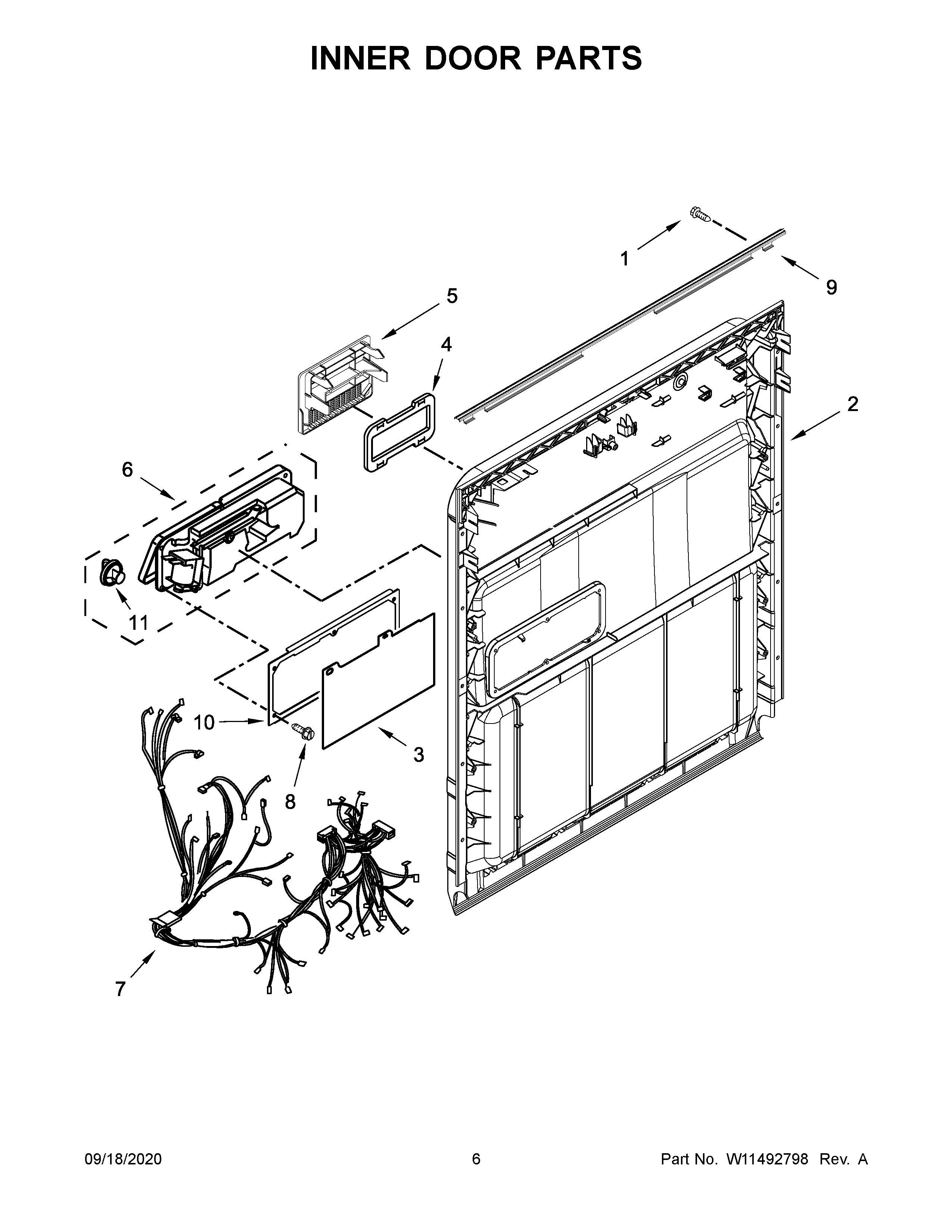

WDF330PAHB4 04 – INNER DOOR PARTS

WDF330PAHB4 04 – INNER DOOR PARTS

Written by

in

WDF330PAHB4 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11612333 Whirlpool Dishwasher Inner Door
3WPW10482094 Whirlpool Dishwasher Cover
4WPW10254545 Whirlpool Dishwasher Gasket
5W10919772 Whirlpool Dishwasher Deflector
6DISPENSER
7W11242945 Whirlpool Dishwasher Wire Harness
8WPW10177098 Whirlpool Dishwasher Screw
9WP8269296 Whirlpool Dishwasher Seal
10WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
11WPW10524920 Whirlpool Dishwasher Rinse Aid Dispenser Cap
