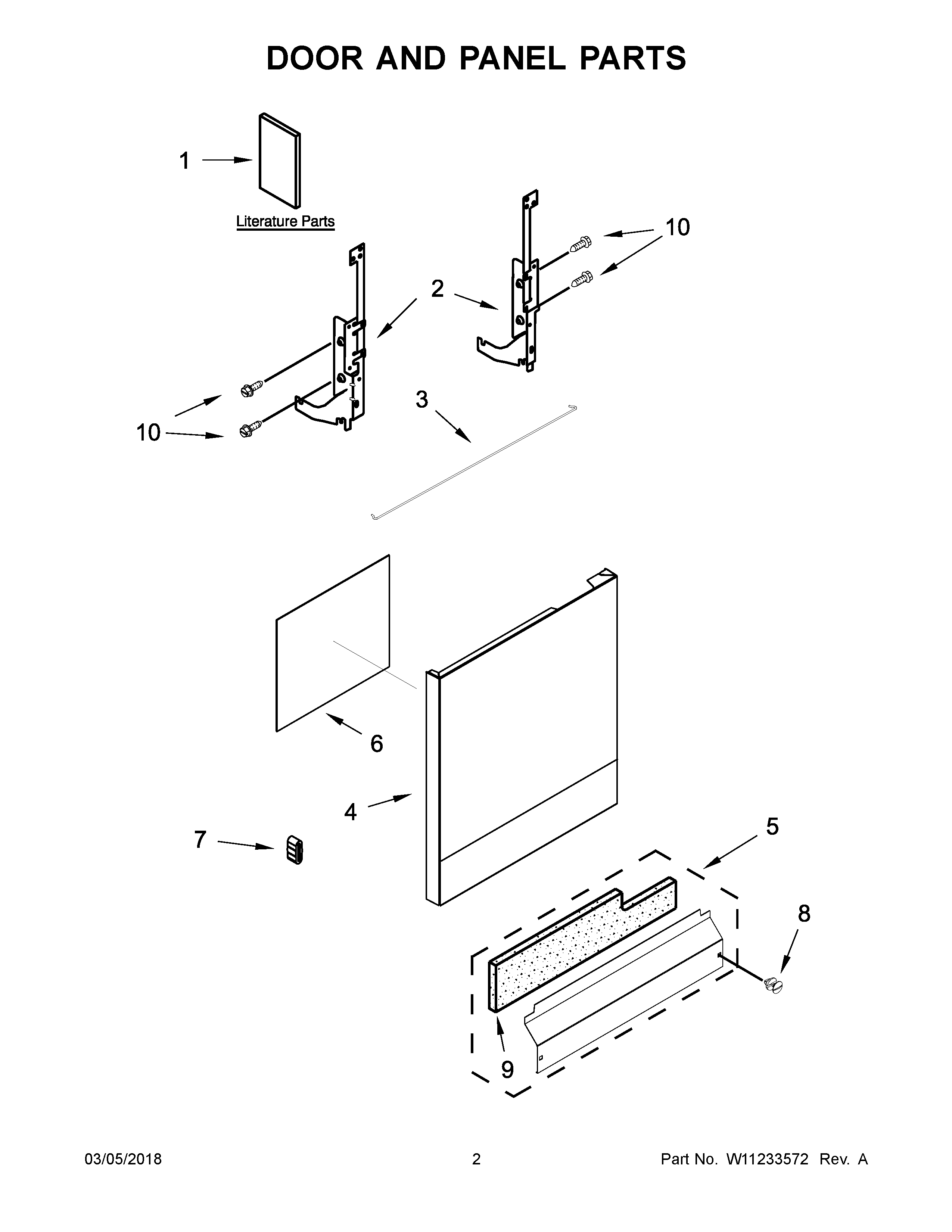

WDF330PAHS2 02 – DOOR AND PANEL PARTS

WDF330PAHS2 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1BUSE & CARE GUIDE
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1AENERGY GUIDE
2W11613573 Whirlpool Door Hinge
2AW11613572 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4DWPW10274898 Whirlpool Dishwasher Panel
4BWPW10274897 Whirlpool Dishwasher Panel
4AWPW10274896 Whirlpool Dishwasher Panel
4CWPW10274902 Whirlpool Dishwasher Control Panel
4WPW10274895 Whirlpool Dishwasher Panel
5BW10799404 Whirlpool Panel
5W10827631 Whirlpool Toe Panel
5AW10827632 Whirlpool Dishwasher Control Panel
6W11126003 Whirlpool Dishwasher Insulation Pad
7WP8268961 Whirlpool Friction Pad
8BWPW10503550 Whirlpool Dishwasher Retainer
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8AWPW10503549 Whirlpool Dishwasher Retainer Clip
9SHIELD
10WPW10109200 Whirlpool Screw
