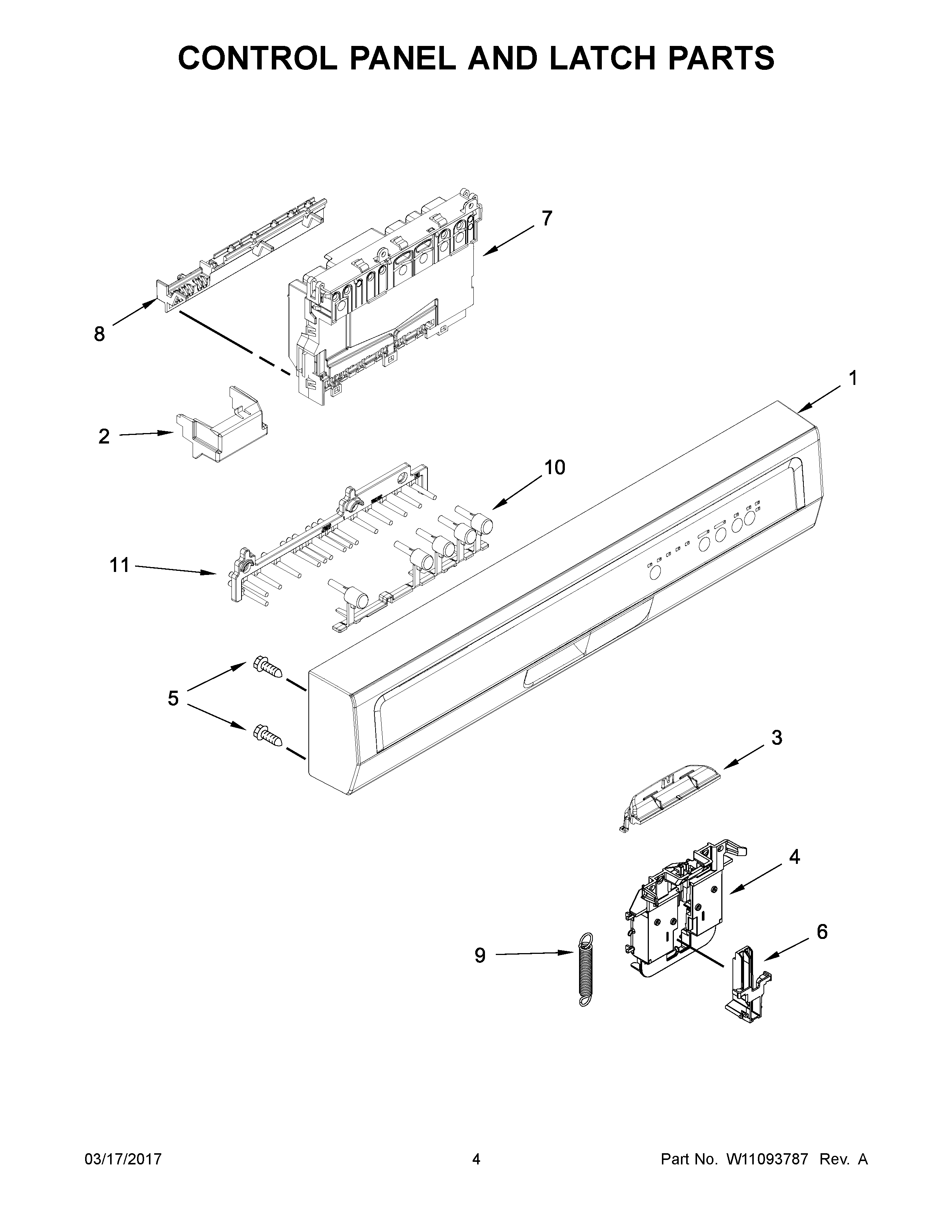

WDF330PAHW0 03 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1B	W11095592 Whirlpool Dishwasher Console
1A	W11095591 Whirlpool Dishwasher Console
1	W11095590 Whirlpool Dishwasher Console
3	W11684608 Whirlpool Handle Assembly
3A	W10716686 Whirlpool Dishwasher Handle
4	BOLT-LATCH
5	WPW10348413 Whirlpool Dishwasher Screw
6	WP8524471 Whirlpool Dishwasher Actuator
7	W11087226-includeCORE Whirlpool W11087226 Dishwasher Electronic Control Board with Core
8	W11305293 Whirlpool Dishwasher Electronic Control Board
9	W10678341 Whirlpool Dishwasher Spring
10	W10854044 Whirlpool Dishwasher Button
11	W10913666 Whirlpool Dishwasher Guide
