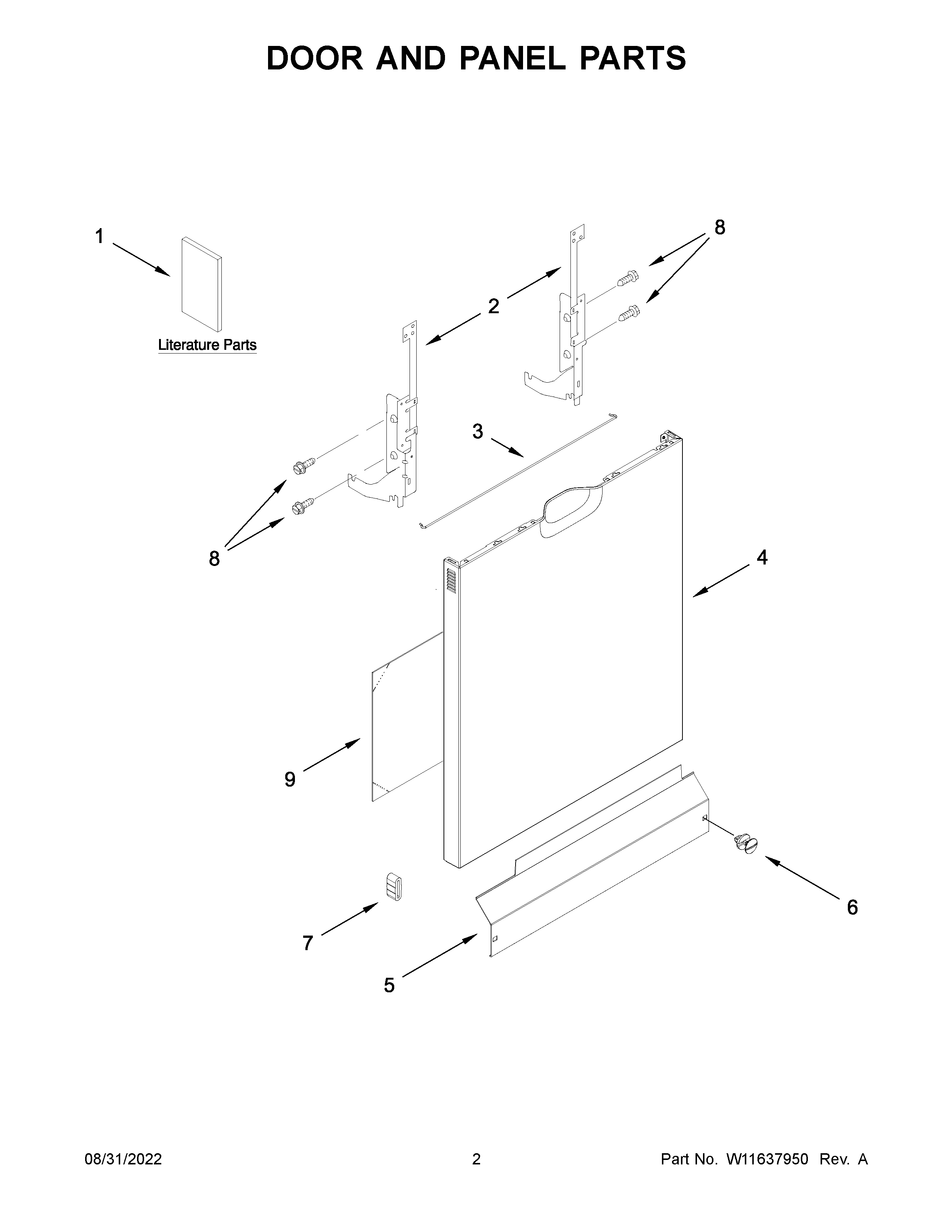

WDF331PAMB0 02 – DOOR AND PANEL PARTS

WDF331PAMB0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1BTECH SHEET
1AOWNERS MANUAL
2W11613573 Whirlpool Door Hinge
2AW11613572 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W11647412 Whirlpool Panel
4APANEL FRONT (WHITE)
4BW11647685 Whirlpool Panel
5AWPW10441007 Whirlpool Dishwasher Panel
5PANEL
6WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
6AWPW10503549 Whirlpool Dishwasher Retainer Clip
7WP8268961 Whirlpool Friction Pad
8WPW10109200 Whirlpool Screw
9WPW10073520 Whirlpool Dishwasher Insulation Pad
