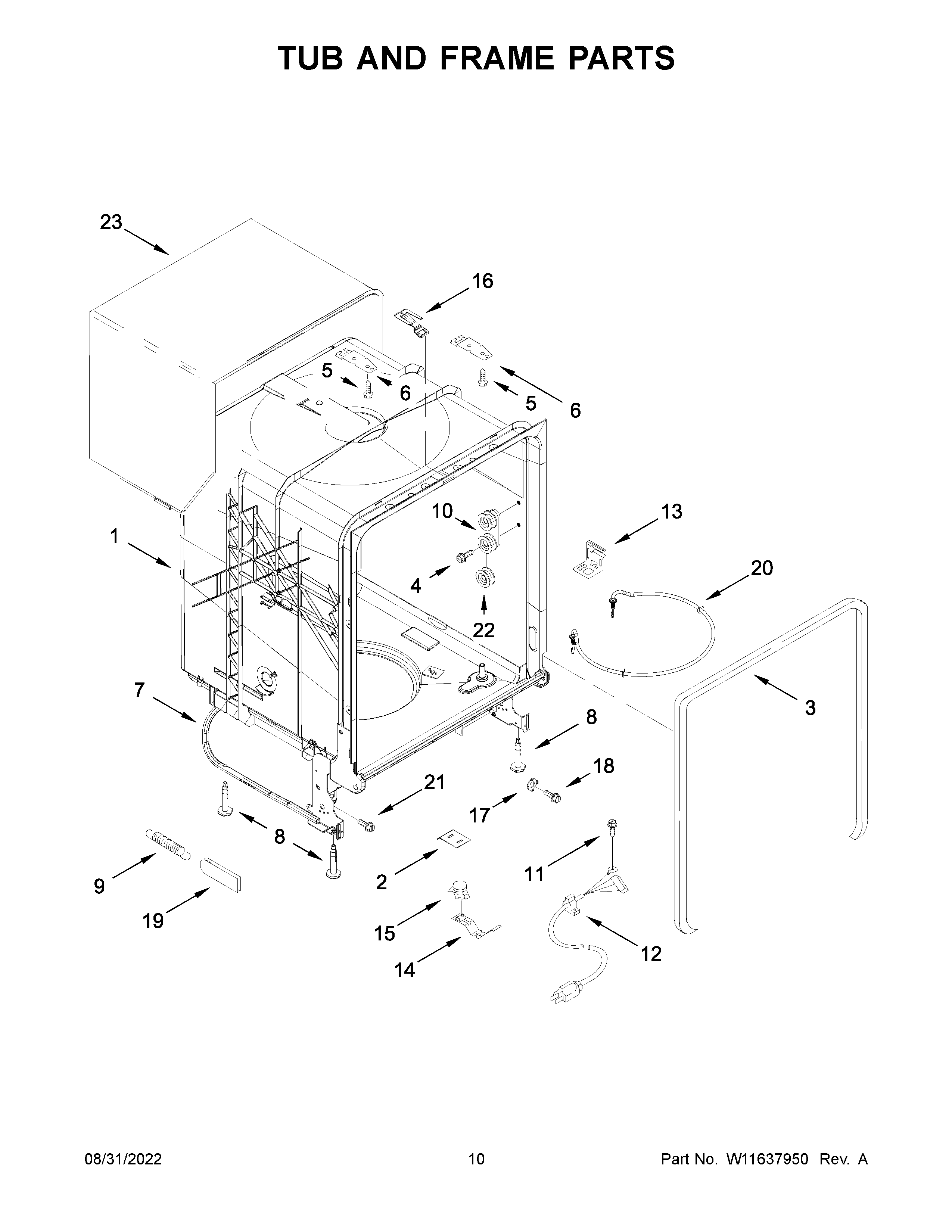

WDF331PAMB0 06 – TUB AND FRAME PARTS

WDF331PAMB0 06 – TUB AND FRAME PARTS

Written by

in

WDF331PAMB0 06 – TUB AND FRAME PARTS

Products

PositionProduct
1W11513977 Whirlpool Dishwasher Tub
2SHIELD
3SEAL, TUB
4W10817436 Whirlpool Screw
5W11551549 Whirlpool Microwave Screw
6WP8269145 Whirlpool Dishwasher Mounting Bracket
7W11680335 Whirlpool Support
88193716 Whirlpool Leveling Leg
9WPW10337934 Whirlpool Spring Assembly
10WP8575897 Whirlpool Dishwasher Tub Wheel
11WP3400892 Whirlpool Dishwasher Screw
12W10831279 Whirlpool Dishwasher Power Cord
13W11027055 Whirlpool Dishwasher Heater Support
14W10539489 Whirlpool Dishwasher Bracket-Stat
15WP661566 Whirlpool High Limit Thermostat
16WPW10544004 Whirlpool Dishwasher Strike
17WP3378128 Whirlpool Dishwasher Washer
18WPW10277003 Whirlpool Screw
19WP8268990 Whirlpool Dishwasher Door Spring Bushing
20W10518394 Whirlpool Dishwasher Heating Element
21WP3400014 Whirlpool Dishwasher Screw
228194001 Whirlpool Dishwasher Door Balance Link Kit
23W11086533 Whirlpool Dishwasher Shield
