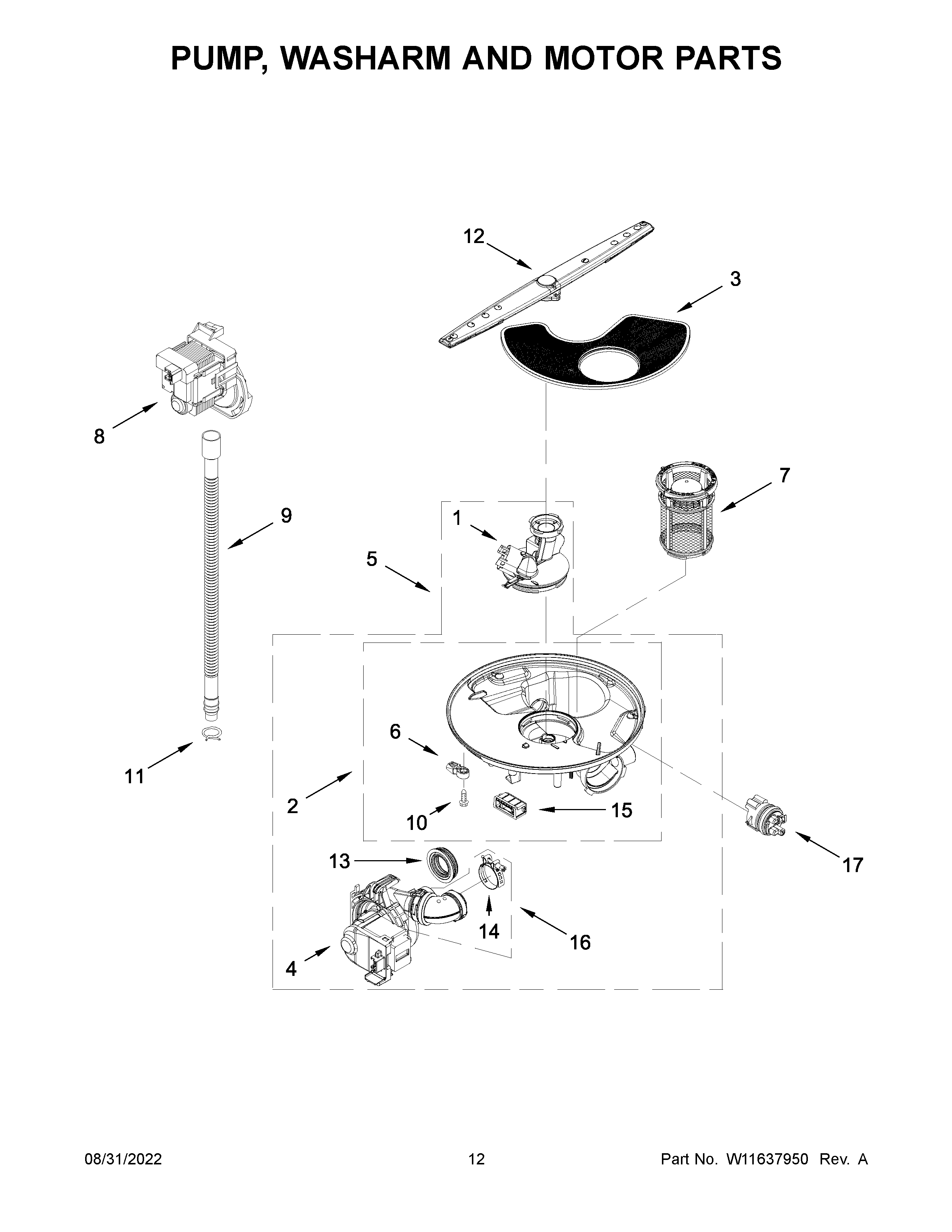

WDF331PAMW0 07 – PUMP, WASHARM AND MOTOR PARTS

WDF331PAMW0 07 – PUMP, WASHARM AND MOTOR PARTS

Written by

in

WDF331PAMW0 07 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1WPW10455271 Whirlpool Cover
2WPW10482462 Whirlpool Dishwasher Sump Assembly
3WPW10463906 Whirlpool Dishwasher Screen Filter Cover
4W11613567 Whirlpool Pump Motor
5PUMP&MOTOR
6WPW10372113 Whirlpool Dishwasher Sump Tab
7W10872845 Whirlpool Dishwasher Filter Cup Trap
8W10876537 Whirlpool Dishwasher Drain Pump
98269144A Whirlpool Dishwasher Drain Hose
10WPW10348407 Whirlpool Dishwasher Screw
11WP285655 Whirlpool Hose Clamp
12ARM-SPRAY
13WPW10538166 Whirlpool Grommet Pump
14W10789434 Whirlpool Dishwasher Hose Clamp
15W11243394 Whirlpool Dishwasher Support
16W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
17W11612329 Whirlpool Sensor Assembly
