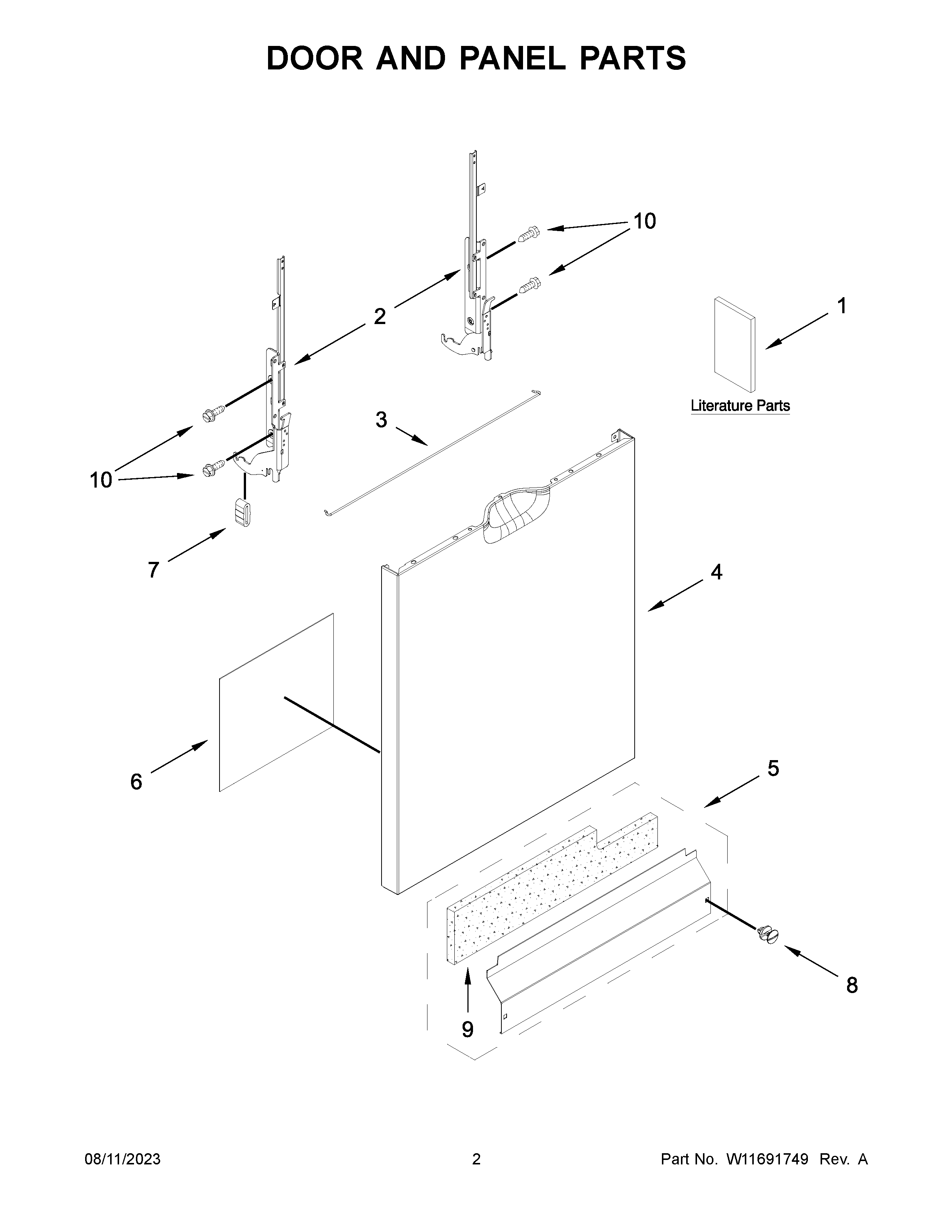

WDF341PAPT0 02 – DOOR AND PANEL PARTS

Products

Position	Product
1B	TECH SHEET
1	ENERGY GUIDE
1A	OWNERS MANUAL
2	W11613573 Whirlpool Door Hinge
2A	W11613572 Whirlpool Dishwasher Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4A	PANEL FRONT (WHITE)
4	W11647412 Whirlpool Panel
4C	W11647685 Whirlpool Panel
4B	PANEL FRONT (BISCUIT)
5A	W10827632 Whirlpool Dishwasher Control Panel
5	W10827631 Whirlpool Toe Panel
5B	W10799404 Whirlpool Panel
6	W11126003 Whirlpool Dishwasher Insulation Pad
7	WP8268961 Whirlpool Friction Pad
8B	WPW10503550 Whirlpool Dishwasher Retainer
8	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8A	WPW10503549 Whirlpool Dishwasher Retainer Clip
9	SHIELD
10	WPW10109200 Whirlpool Screw
