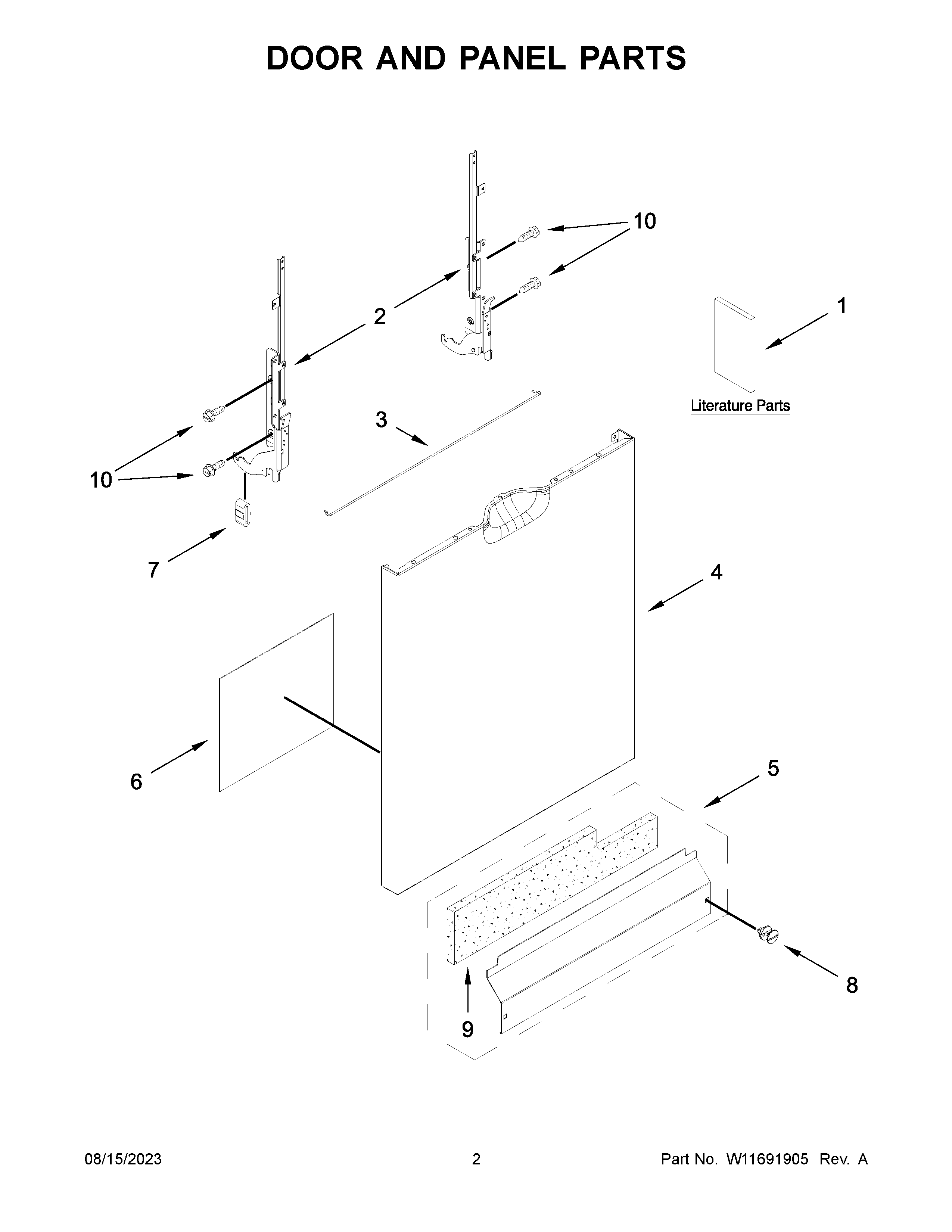

WDF341PAPT1 02 – DOOR AND PANEL PARTS

WDF341PAPT1 02 – DOOR AND PANEL PARTS

Written by

in

WDF341PAPT1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BTECH SHEET
1ENERGY GUIDE
1AOWNERS MANUAL
2W11613573 Whirlpool Door Hinge
2AW11613572 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4APANEL FRONT (WHITE)
4W11647412 Whirlpool Panel
4CW11647685 Whirlpool Panel
4BPANEL FRONT (BISCUIT)
5AW10827632 Whirlpool Dishwasher Control Panel
5W10827631 Whirlpool Toe Panel
5BW10799404 Whirlpool Panel
6W11126003 Whirlpool Dishwasher Insulation Pad
7WP8268961 Whirlpool Friction Pad
8BWPW10503550 Whirlpool Dishwasher Retainer
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8AWPW10503549 Whirlpool Dishwasher Retainer Clip
9SHIELD
10WPW10109200 Whirlpool Screw
