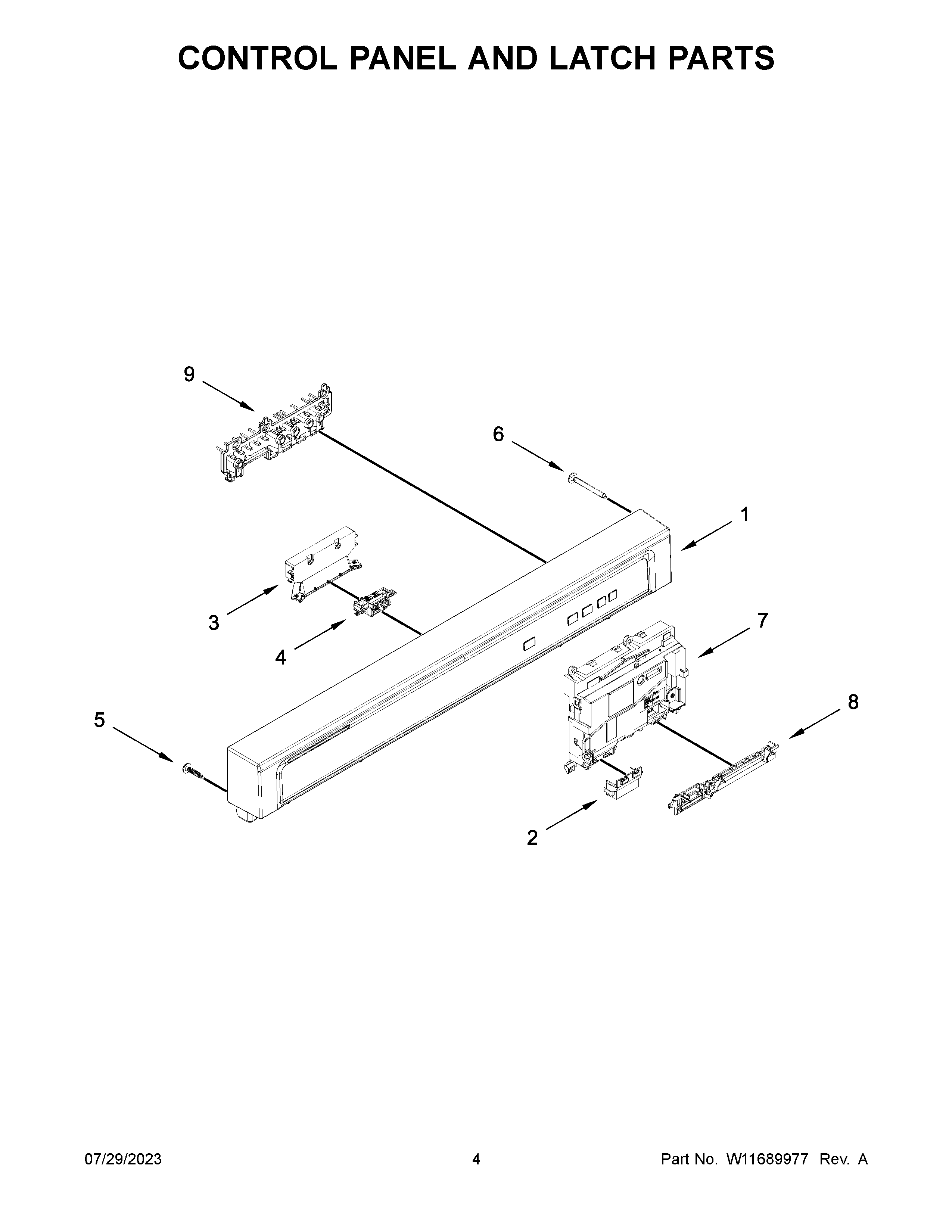

WDF341PAPT2 03 – CONTROL PANEL AND LATCH PARTS

WDF341PAPT2 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF341PAPT2 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W11728574 Whirlpool Console Assembly
1CW11647667 Whirlpool Console
1BCONSOLE ASSEMBLY (INCLUDES INSERT) (BISCUIT)
1AW11647661 Whirlpool Console
3HANDLE, UPPER
4WPW10653840 Whirlpool Door Latch
5WPW10213953 Whirlpool Screw
6WPW10348408 Whirlpool Dishwasher Screw
7W11683652-includeCORE Whirlpool Electronic Control+Core
8W11305293 Whirlpool Dishwasher Electronic Control Board
9GUIDE
