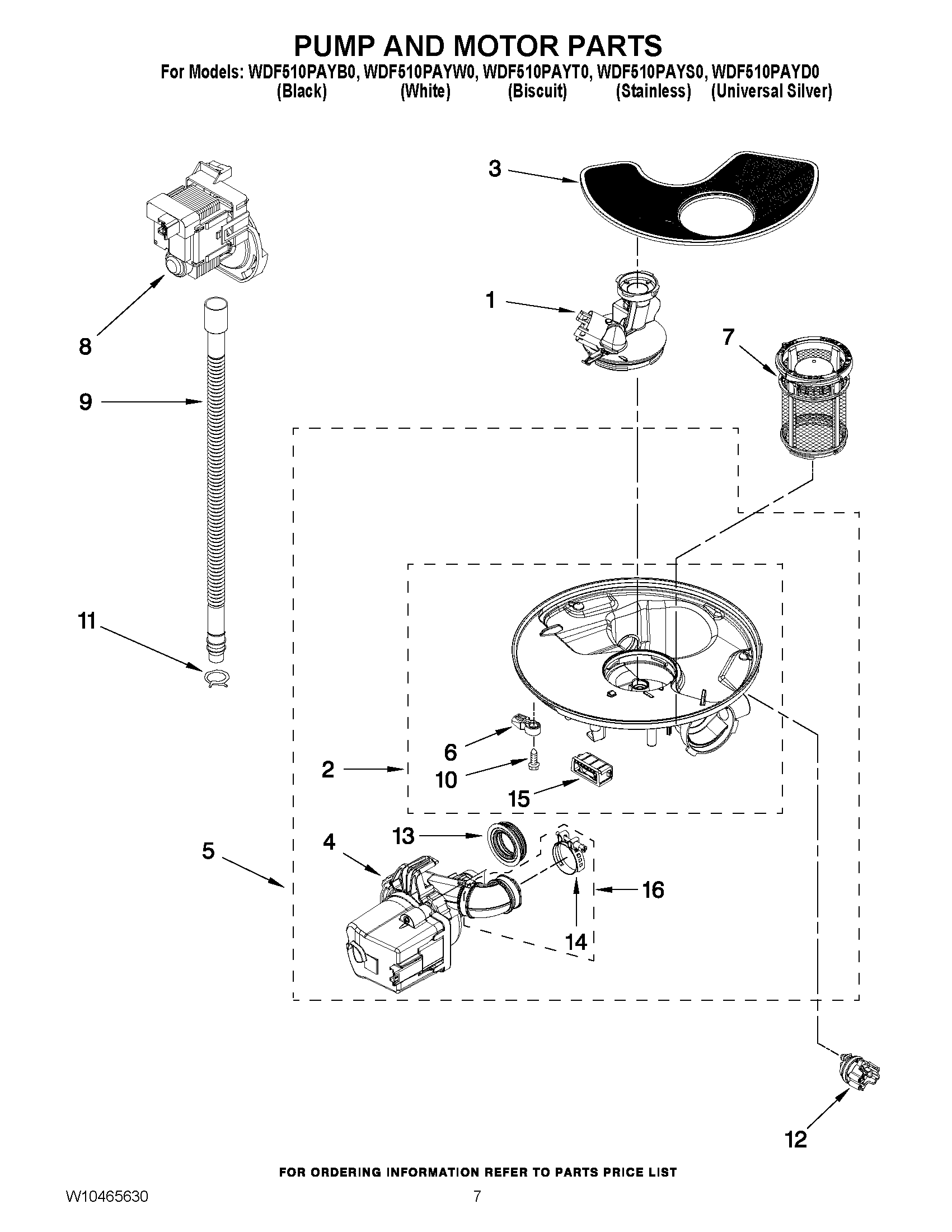

WDF510PAYB0 06 – PUMP AND MOTOR PARTS

WDF510PAYB0 06 – PUMP AND MOTOR PARTS

Written by

in

WDF510PAYB0 06 – PUMP AND MOTOR PARTS

Products

PositionProduct
1WPW10455271 Whirlpool Cover
2WPW10482462 Whirlpool Dishwasher Sump Assembly
3WPW10354786 Whirlpool Dishwasher Screen
4W11133712 Whirlpool Dishwasher Pump Motor
5WPW10605059 Whirlpool Dishwasher Pump and Motor
6WPW10372113 Whirlpool Dishwasher Sump Tab
7W10872845 Whirlpool Dishwasher Filter Cup Trap
8WPW10348269 Whirlpool Washer Drain Pump
98269144A Whirlpool Dishwasher Drain Hose
10WPW10348407 Whirlpool Dishwasher Screw
11WP285655 Whirlpool Hose Clamp
12WPW10705575 Whirlpool Dishwasher Sensor
13WPW10538166 Whirlpool Grommet Pump
14WP8269146 Whirlpool Dishwasher Clamp
15W11243394 Whirlpool Dishwasher Support
16W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
