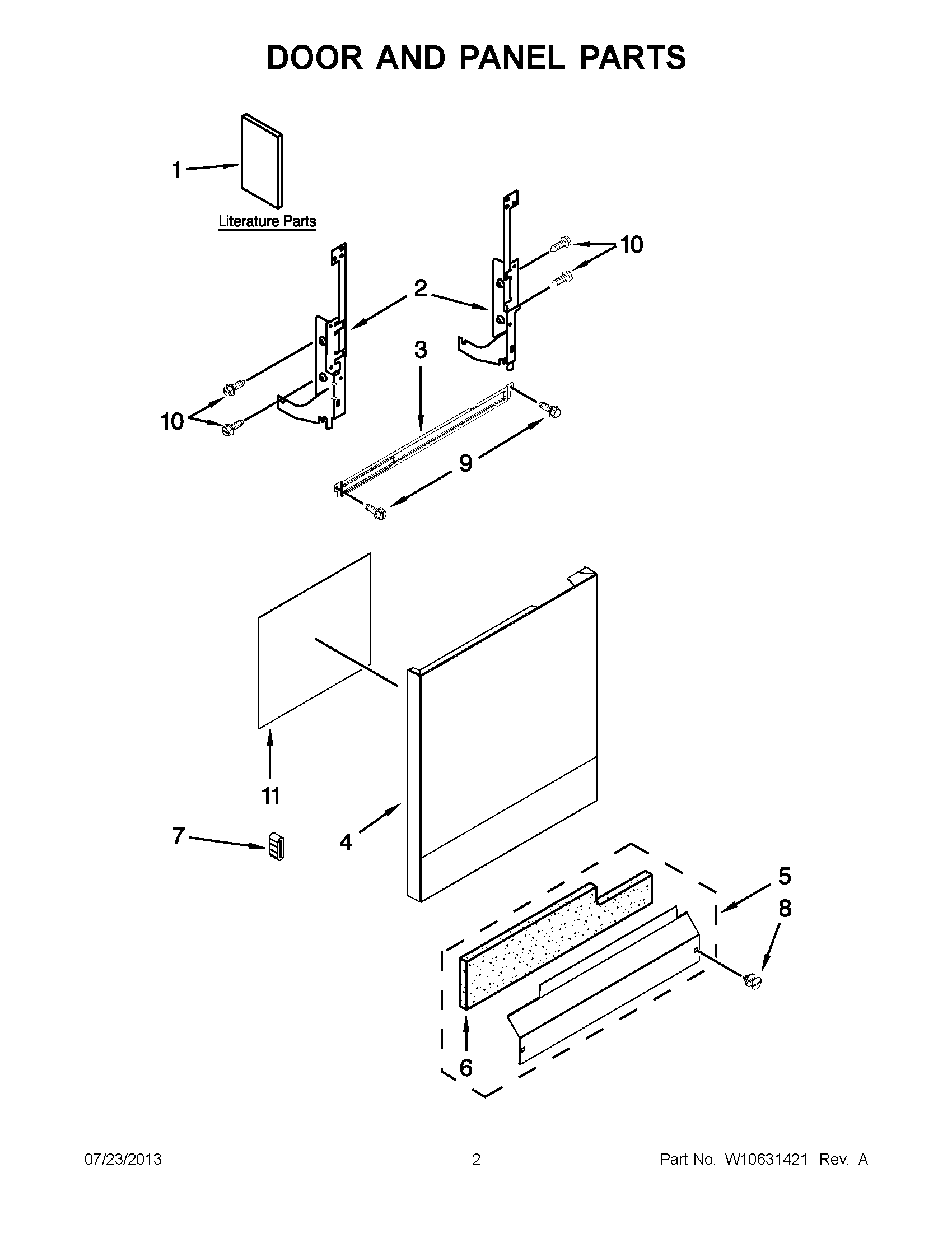

WDF510PAYBA 01 – DOOR AND PANEL PARTS

WDF510PAYBA 01 – DOOR AND PANEL PARTS

Written by

in

WDF510PAYBA 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1USE & CARE GUIDE
1TECH SHEET, ENGLISH
1INSTALLATION, INSTRUCTIONS
1TECH SHEET, FRENCH
1ENERGY GUIDE
2W11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10274898 Whirlpool Dishwasher Panel
4WPW10274896 Whirlpool Dishwasher Panel
4WPW10274895 Whirlpool Dishwasher Panel
4WPW10274902 Whirlpool Dishwasher Control Panel
5W10827631 Whirlpool Toe Panel
5W10827632 Whirlpool Dishwasher Control Panel
6SHIELD
7WP8268961 Whirlpool Friction Pad
8WPW10503549 Whirlpool Dishwasher Retainer Clip
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
