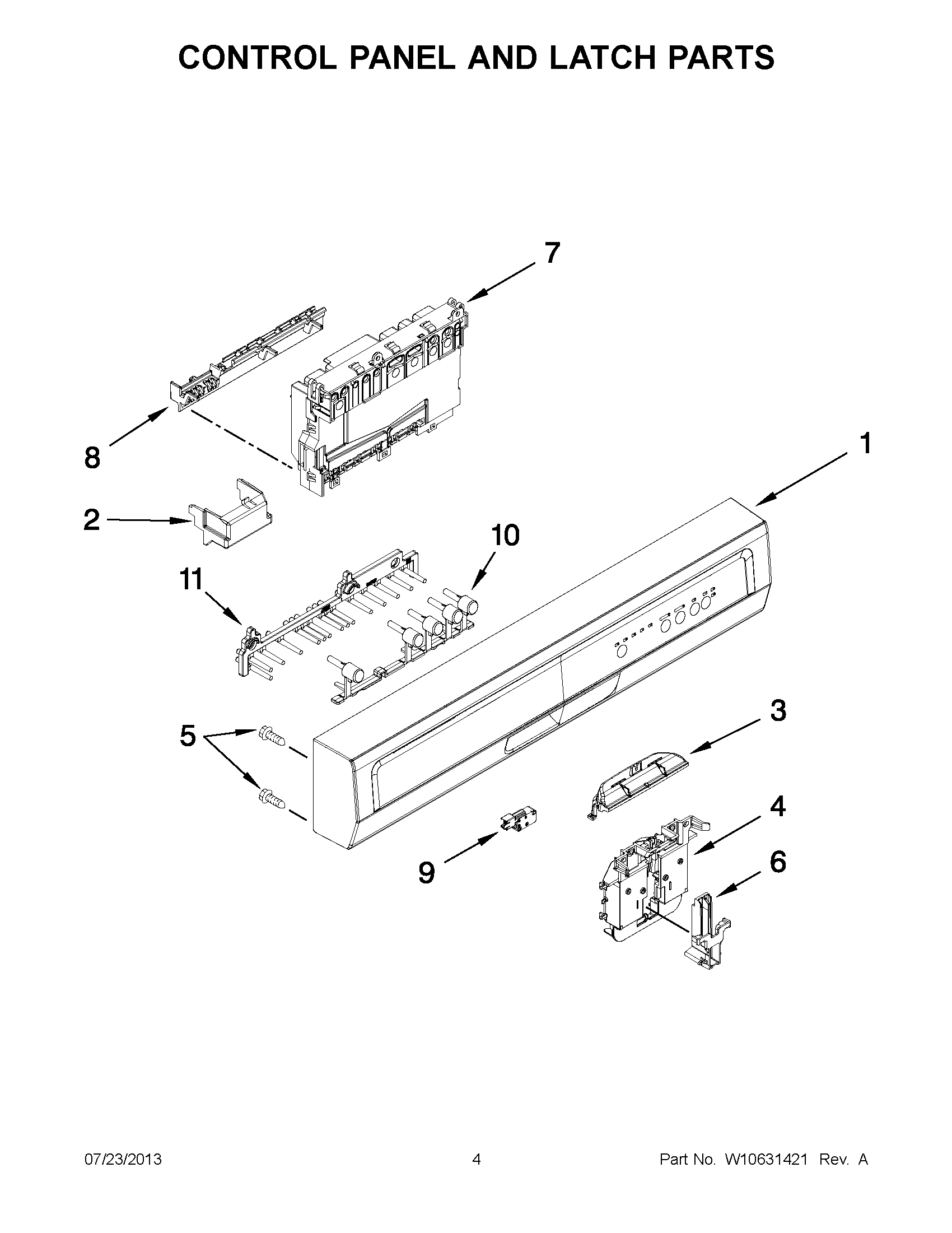

WDF510PAYBA 02 – CONTROL PANEL AND LATCH PARTS

WDF510PAYBA 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF510PAYBA 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (WHITE)
1WPW10380381 Whirlpool Dishwasher Console
2W10783730 Whirlpool Dishwasher Connector
3W11684608 Whirlpool Handle Assembly
3W10127605 Whirlpool Dishwasher Handle
4BOLT-LATCH
5WPW10348413 Whirlpool Dishwasher Screw
6WP8524471 Whirlpool Dishwasher Actuator
7W10804121 Whirlpool Dishwasher Electronic Control Board
8WPW10372484 Whirlpool Dishwasher Brace
9WPW10274880 Whirlpool Switch
10W10854044 Whirlpool Dishwasher Button
11W10913666 Whirlpool Dishwasher Guide
