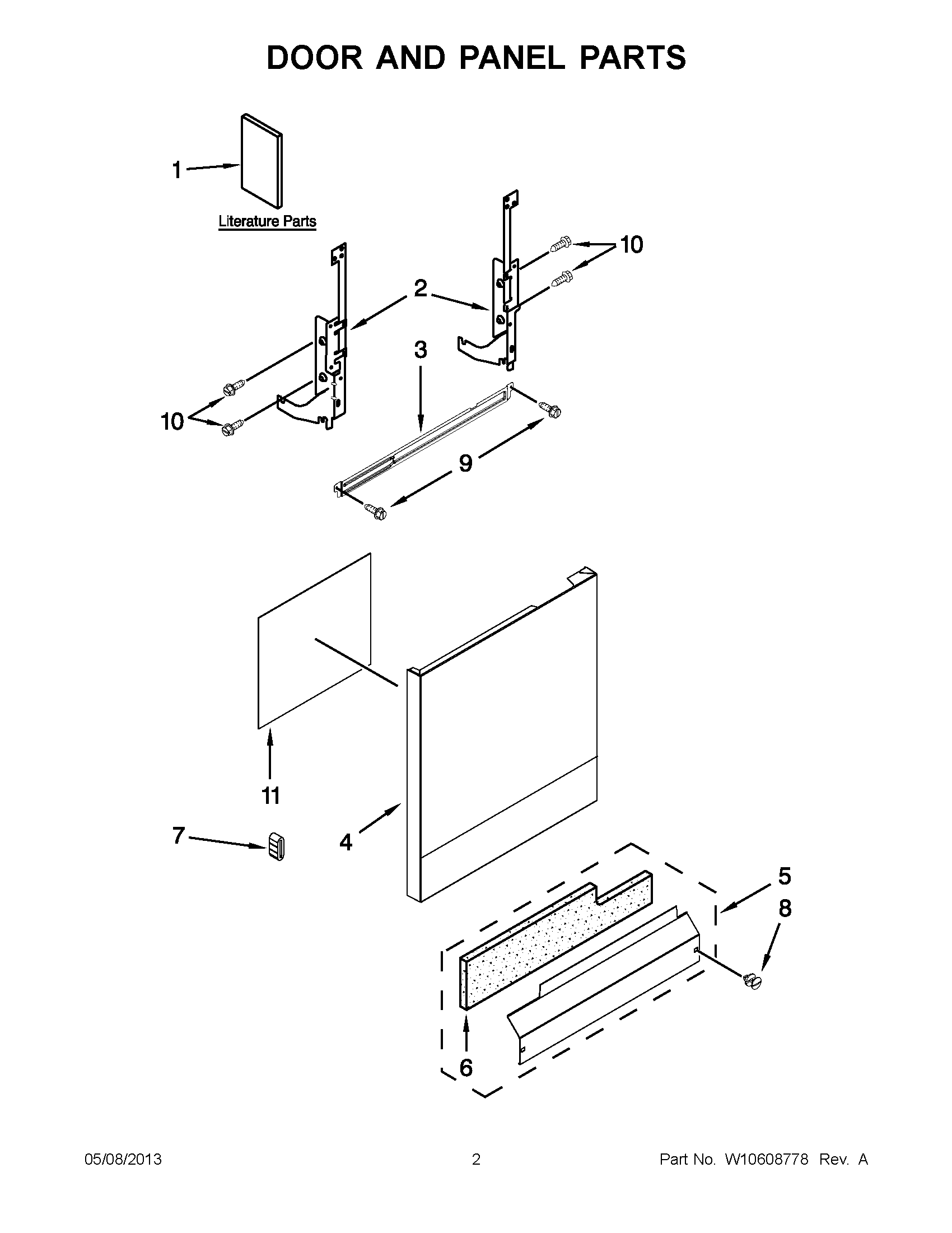

WDF510PAYD8 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1	TECH SHEET (FRENCH)
1	TECH SHEET (ENGLISH)
1	INSTALLATION, INSTRUCTIONS
1	USE & CARE GUIDE
1	USE & CARE GUIDE, SPANISH
2	W11613573 Whirlpool Door Hinge
2	W11613572 Whirlpool Dishwasher Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	WPW10274902 Whirlpool Dishwasher Control Panel
4	WPW10274898 Whirlpool Dishwasher Panel
4	WPW10274895 Whirlpool Dishwasher Panel
4	WPW10274896 Whirlpool Dishwasher Panel
4	WPW10274897 Whirlpool Dishwasher Panel
5	W10827632 Whirlpool Dishwasher Control Panel
5	W10827631 Whirlpool Toe Panel
6	SHIELD
7	WP8268961 Whirlpool Friction Pad
8	WPW10503550 Whirlpool Dishwasher Retainer
8	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8	WPW10503549 Whirlpool Dishwasher Retainer Clip
9	WP489069 Whirlpool Compactor Screw
10	WPW10109200 Whirlpool Screw
11	W11126003 Whirlpool Dishwasher Insulation Pad
